4 VM-2HDxl - Overview

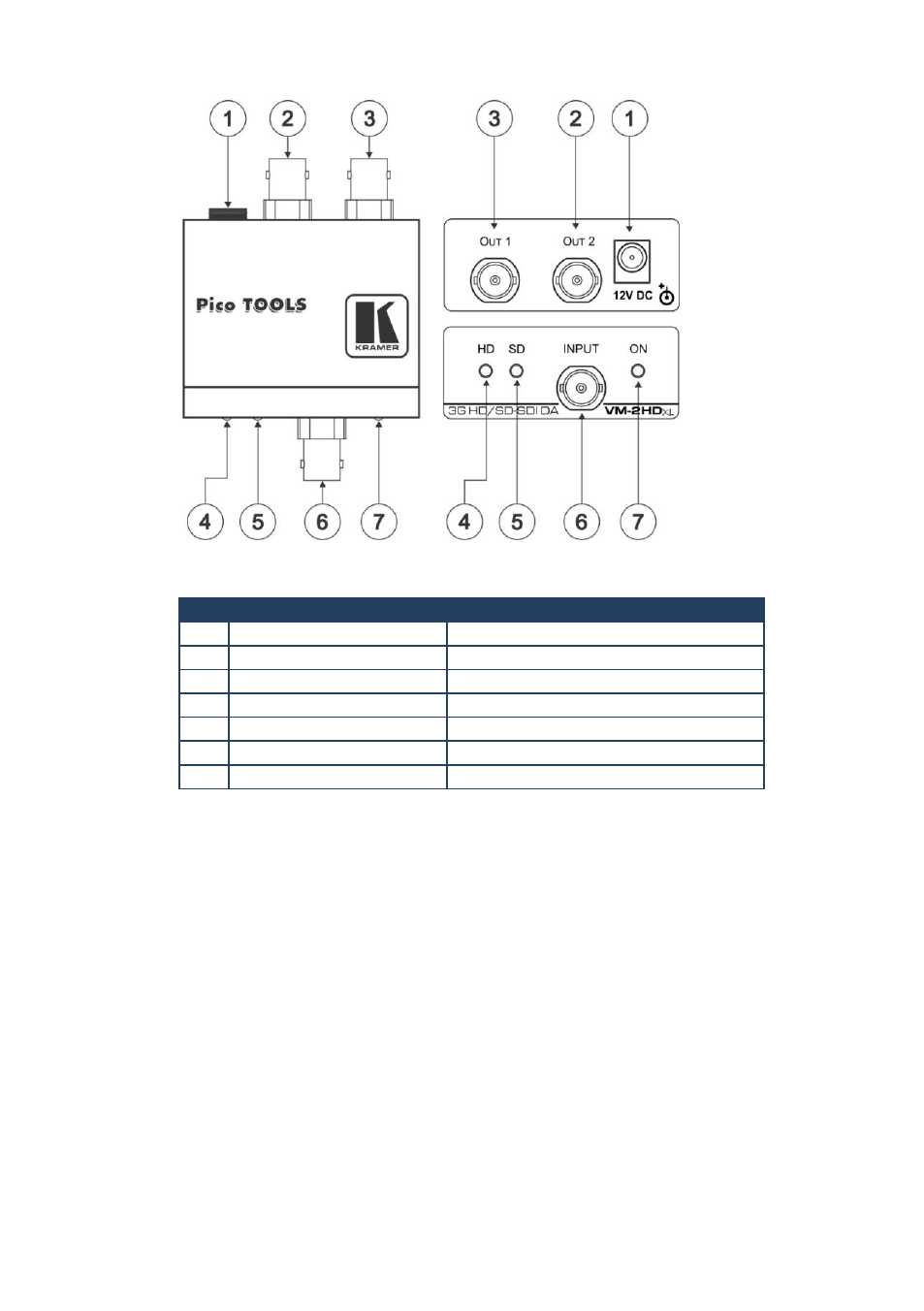

Figure 1: VM-2HDxl 3G HD/SD – SDI DA
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 OUT 2 BNC connector Connects to the SDI acceptor 2
3 OUT 1 BNC connector Connects to the SDI acceptor 1
4 HD LED Lights when the SDI signal is HD
5 SD LED Lights when the SDI signal is SD
6 INPUT BNC connector Connects to the SDI source
7 ON LED Lights when receiving power
High Definition (HD) means a video format, consisting of 720 active lines of
progressive video or 1080 lines of progressive or interlaced video.
Standard Definition (SD) means an NTSC or PAL compatible video format,
consisting of 480 (for NTSC) or 576 (for PAL) lines of interlaced video.
