VM-2C - Connecting the VM-2C 5
4 Connecting the VM-2C
Always switch off the power to each device before connecting it to your
VM-2C. After connecting your VM-2C, connect its power and then
switch on the power to each device.
To connect the VM-2C as illustrated in the example in Figure 2 :
1. Connect a component video source (for example, a DVD player) to the Y,
P B /C B , and P R /C R INPUT RCA connectors.
2. Connect the OUTPUT RCA connectors (Y, P B /C B , and P R /C R ) to up to two
component video acceptors (for example, a display and a projector).
3. Connect the 12V DC power supply to the 12V DC socket and then connect
the power supply to the mains electricity (not shown in Figure 2 ).

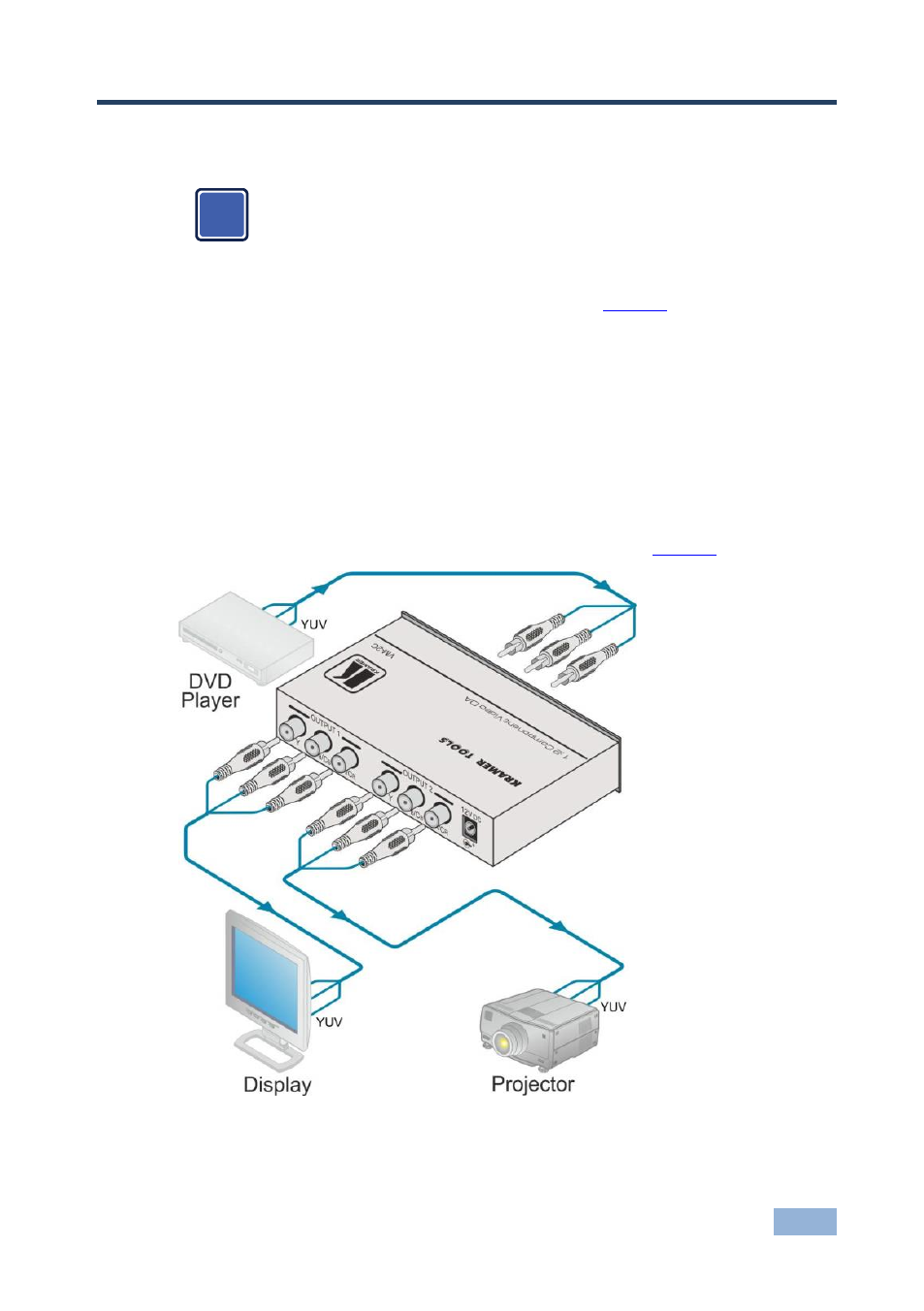

Figure 2: Connecting the VM-2C 1:2 Component Video DA
