VM-2C - Overview
3
Overview
The Kramer TOOLS
VM−2C is a high−performance distribution amplifier for
component video (Y, Pb/Cb, Pr/Cr) signals. It takes one input, provides correct
buffering and isolation and distributes the signal to two identical outputs on RCA
connectors.
In particular, the VM-2C features:
HDTV compatibility
A bandwidth of 500MHz
A 12V DC power supply
3.1
Defining the VM-2C 1:2 Component Video DA
This section defines the VM-2C.

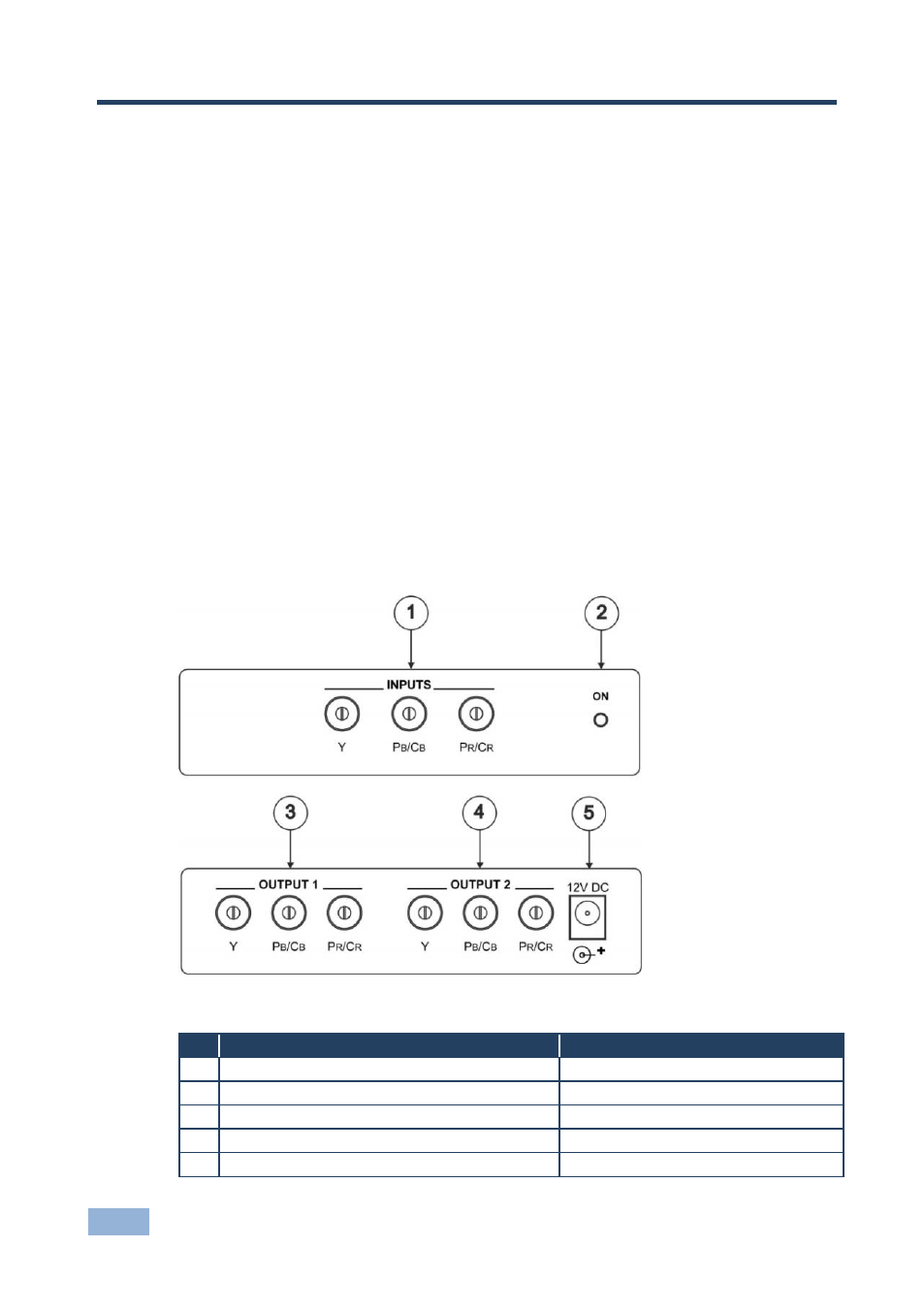

Figure 1: VM-2C 1:2 Component Video DA
#
Feature
Function
1
INPUTS Y, P
B
/C
B
, P
R
/C
R
RCA Connectors
Connect to a component source
2
ON LED
Illuminates when receiving power
3
OUTPUT 1 Y, P
B
/C
B
, P
R
/C
R
RCA Connectors
Connect to component acceptor 1
4
OUTPUT 2 Y, P
B
/C
B
, P
R
/C
R
RCA Connectors
Connect to component acceptor 2
5
12V DC
+12V DC connector for powering unit
