Your VM-100CA
5

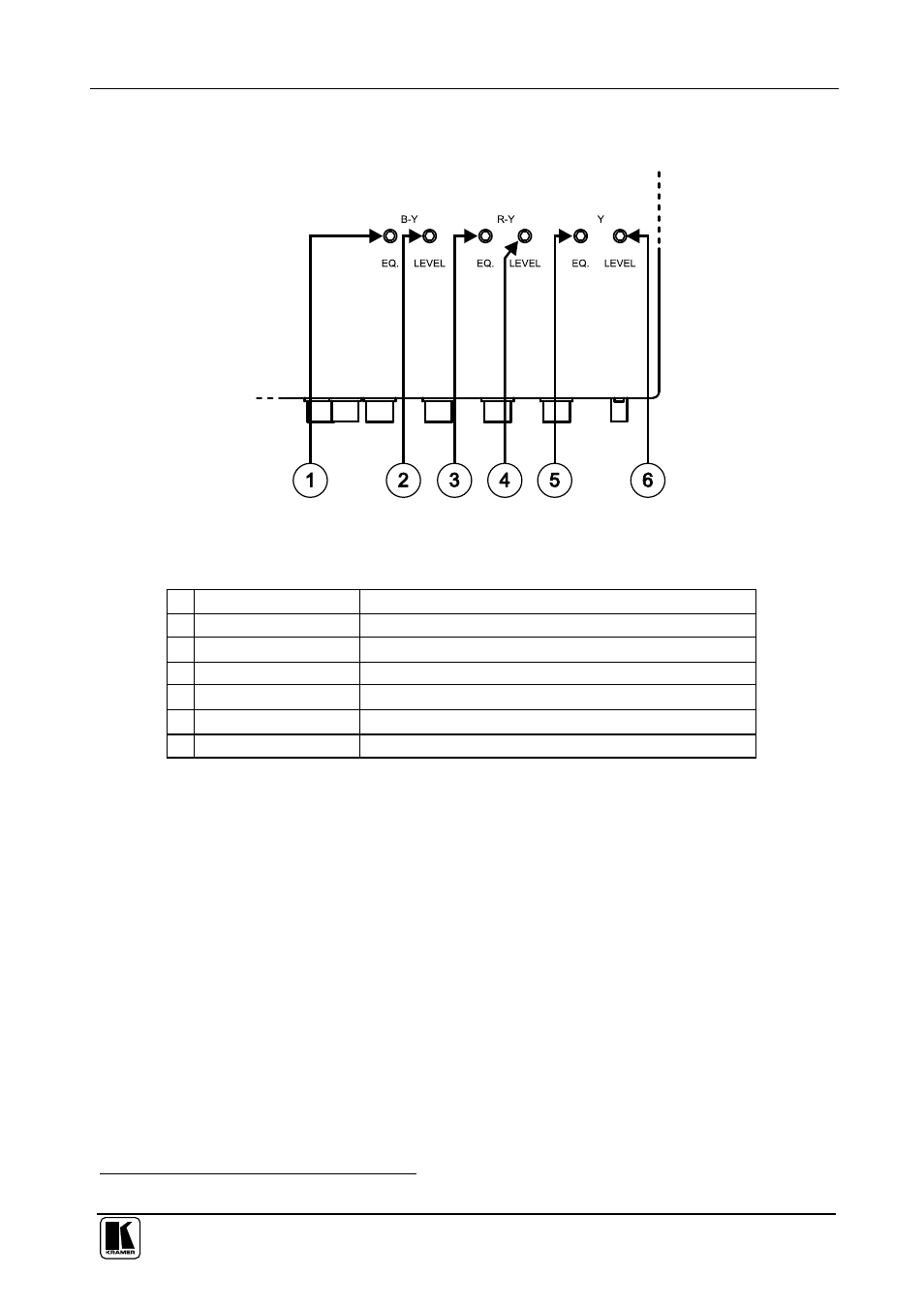

Figure 3 and Table 3 define the level trimmers and the EQ. trimmers for Y,
B-Y, and R-Y on the underside of the VM-100CA:
Figure 3: VM-100CA Underside
Table 3: VM-100CA Underside Features
# Feature Function
1 B-Y EQ. Trimmer Adjusts 1 the B-Y cable compensation equalization level
2 B-Y LEVEL Trimmer Adjusts 1 the B-Y output signal level
3 R-Y EQ. Trimmer Adjusts 1 the R-Y cable compensation equalization level
4 R-Y LEVEL Trimmer Adjusts 1 the R-Y output signal level
5 Y EQ. Trimmer Adjusts 1 the Y cable compensation equalization level
6 Y LEVEL Trimmer Adjusts 1 the Y output signal level
1 Insert a screwdriver into the small hole and carefully rotate it, trimming the OUTPUT level or EQ level
