KRAMER ELECTRONICS LTD. 4

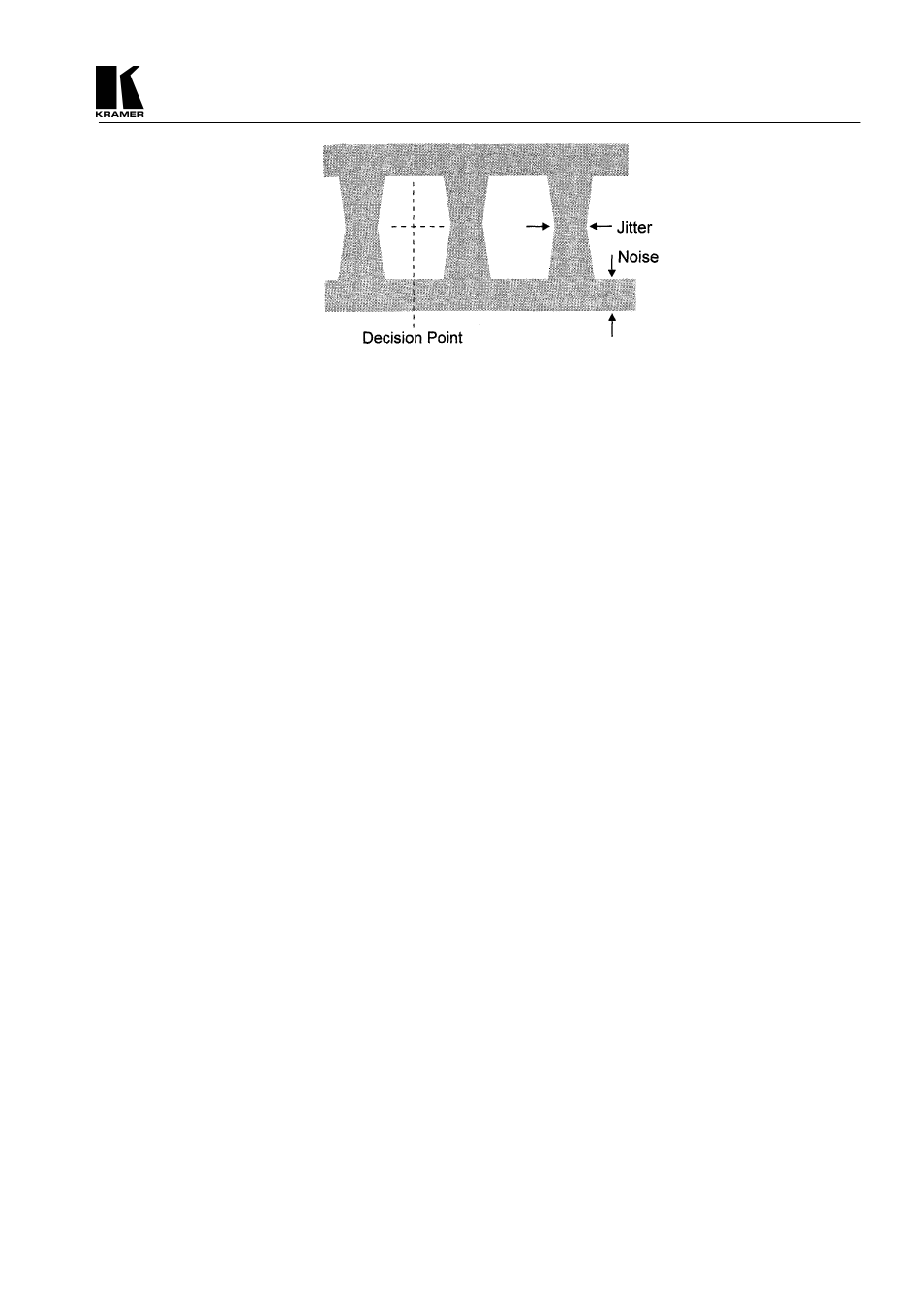

Figure 2: The Digital “eye” after accumulating noise and jitter

1.3 SDI Standards

Today, “uncompressed” digital video usually refers to digital component video (the ITU-R BT.601

standard). This is based on a sampling of component video. The sampling scheme stipulates one
luminance (Y) sample for each pair of color-difference (R-Y and B-Y) samples.

Luminance sampling is done at 13.5MS/s (mega-samples per second), and each color-difference is

sampled at 6.75MS/s. This is also known as 4:2:2 (Y is sampled at 4f

sc

(more or less!), and the color

differences at 2f

sc

).

The 8 or 10 bits of data are serialized to produce a single stream of bits (SMPTE-259 standard) at

270MS/s for 10 bits (10X(13.5+6.75+6.75) = 270). This is known as “Serial Component Video”, and is
usually referred to as SDI.

“Serial Composite Video” is (true) 4f

sc

sampling of composite video – PAL at ~177MS/s, and

NTSC at ~143MS/s. This standard is hardly used, except in some older installations in the USA.

The “Digital Widescreen” standard was launched in the early 90’s. This is a digital version of Pal

Plus (16:9 or Letterbox aspect ratio), and it works at 360MS/s.

1.4 Factors Affecting Quality of Results


There are many factors affecting the quality of signals transmitted from a source to an acceptor. The

following examples illustrate the effect on analog video and audio. For digital signals, the interference
would effectively decrease “cliff” length.

Connection cables

Low quality cables are susceptible to interference; they degrade

signal quality due to poor matching and cause elevated noise levels.
They should therefore be of the best quality.

Sockets and connectors
of the sources and
acceptors

So often ignored, they should be of highest quality, since "Zero

ohm" connection resistance is the objective. Sockets and connectors
also must match the required impedance (75ohm in video). Cheap, low
quality connectors tend to rust, thus causing breaks in the signal path.

Amplifying circuitry

Must have quality performance when the desired result is high

linearity, low distortion and low noise operation.

Distance between
sources and acceptors

Plays a major role in the final result. For long distances (over 15

meters) between sources and acceptors, special measures should be
taken in order to avoid cable losses. These include using higher quality
cables or adding line amplifiers.

Interference from
neighboring electrical
appliances

These can have an adverse effect on signal quality. Balanced

audio lines are less prone to interference, but unbalanced audio should
be installed far from any mains power cables, electric motors,
transmitters, etc. even when the cables are shielded.
