1am series 1up series – Graymills Air Mixer OMI User Manual
Page 6
795-92794 04-13 Air Motor Mixer OMI
6
8
*** Item not shown.
** #AL484 (5A) O-ring replaces shim on some models.
∆ Denotes parts included in the Service Kit.
For specific OEM models, please consult the factory.
When corresponding about or ordering parts, please give complete model and serial numbers.
Exploded views are shown for reference only. Units may vary depending upon specific model.

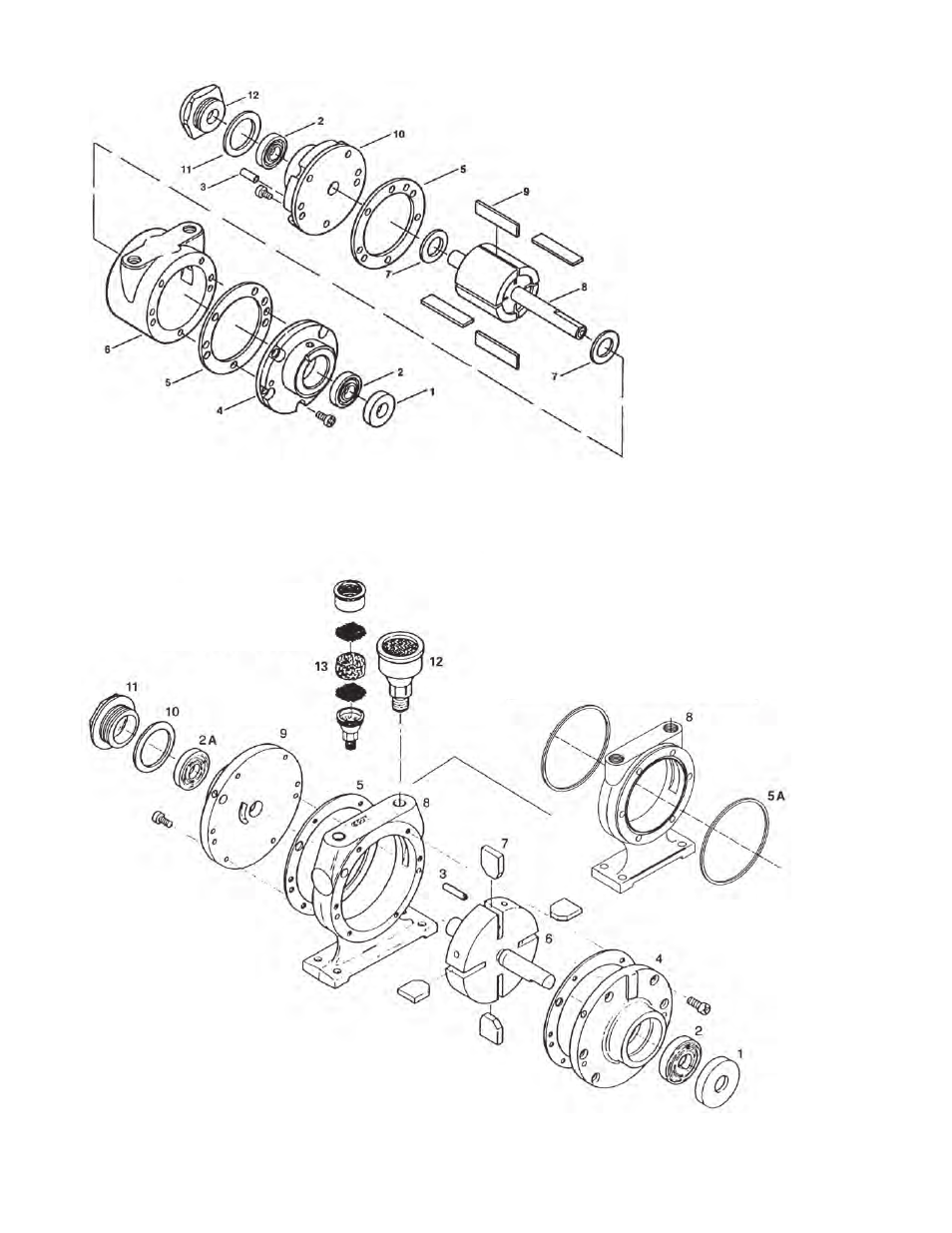

EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION
2AM SERIES
2AM SERIES
REF# DESCRIPTION
QTY
2AM-FCC-1
2AM-NCW-7A
2AM-FCW-13
2AM-NCC-16
2AM-NCC-43A
2AM-NRV-90
2AM-ACC-88 2AM-ARV-92
METRIC
METRIC
1 ∆
SHAFT SEAL
1
AA466B
AA466B
AA466B
AA466B
B2328
B2328
2 ∆
DRIVE END BEARING
1
AA299J
AA299J
AA299J
AA299J
AB519
AB519
2A ∆
DEAD END BEARING
1
AA299J
AA299J
AA299J
AA299J
AA299J
AA299J
3
DOWEL PIN
4
AB162
AB162
AB162
AB162
AB162C
AB162C
4
DRIVE END PLATE
1
AC720
AC726
AC722
AC724
AG708
AK425A
5 ∆ ** SHIMS
2
B330
B330
B330
B330
B330
B330
6
ROTOR ASSEMBLY
1
AA470A
AA489A
AA489A
AA470A
AM449A
AM449B
7 ∆
VANE
4
AA13B
AA13B
AA13B
AA13B
AA13B
AA13B
8
BODY
1
AA477
AA467
AA477
AA467
AA467
AA467F
9
DEAD END PLATE
1
AC721
AC723
AC723
AC721
AC721
AB622N
10 ∆
END CAP GASKET
1
AA46
AA46
AA46
AA46
AA46
AA46
11
END CAP
1
AM307D
AM307D
AM307D
AM307D
AM307D
AM307D
12
MUFFLER ASSEMBLY
1
AL445
AL445
AL445
AL445
AL445
AL445
13
MUFFLER FELT
1
AC983
AC983
AC983
AC983
AC983
AC983
***
SERVICE KIT
1
K202
K202
K202
K202
K203A
K203A
7
REF# DESCRIPTION
QTY 1AM-NCC-12 1AM-NCW-14 1AM-NRV-39A 1AM-NRV-56 1AM-NRV-60
1AM-NRV-63A
1 ∆
SEAL
1
AC190A
AC190A
AC190A
AC190A
AC190A
AC190A
2 ∆
BEARING
2
AG549
AG549
AG549
AG549
AG549
AG549
3
DOWEL PIN
1
D324A
D324A
D324A
D324A
D324A
D324A
4
DRIVE END PLATE
1
AC537
AC539
AC520
AC520D
AC520D
AC520
5 ∆∆
SHIMS
2
AC527B
AC527B
AC527B
AC527B
AC527B
AC527B
6
BODY
1
AC521
AC521
AC191
AC191
AC191
AC191
7
CAM RING
2
AC195
AC195
AC195
AC195
8
ROTOR ASSEMBLY
1
AC524
AC536
AC193
AC187
AC607
AC193B
9 ∆
VANE
4
AC205A
AC205A
AC259A
AC259A
8
AC259A
AC259A
10
DEAD END PLATE
1
AC538
AC540
AC192
AC192
AC192
AC192
11 ∆
END CAP GASKET
1
AC229
AC229
AC229
AC229
AC229
AC229
12
DEAD END CAP
1
AC228A
AC228A
AC228A
AC228A
AC228A
AC228A
*** ∆
MUFFLER
1
AF350
AF350
AF350
AF350
AF350
AF350
***
FOAM
1
AG896
AG896
AG896
AG896
AG896
AG896
***
SERVICE KIT
1
K200
K200
K201
K201
K278
K278
*** Item not shown.
∆ Denotes parts included in the Service Kit.
∆∆ Parts listed are for stock models manufactured prior to 1998. For specific OEM models, please consult the factory.
When corresponding about or ordering parts, please give complete model and serial numbers.
Exploded views are shown for reference only. Units may vary depending upon specific model.
1AM SERIES
1UP SERIES
REF# DESCRIPTION
QTY 1UP-NCC-1A 1UP-NCW-2A 1UP-NRV-3A
1UP-NRV-4
1UP-NRV-10
1UP-NRV-11
1 ∆
SEAL
1
AC190A
AC190A
AC190A
AC190A
AC190A
AC190A
2 ∆
BEARING
2
AG549
AG549
AG549
AG549
AG549
AG549
3
DOWEL PIN
1
D324A
D324A
D324A
D324A
D324A
D324A
4
DRIVE END PLATE
1
AC616
AC520B
AC520
AC520D
AC520
AC520D
5 ∆∆
SHIMS
2
AC527B
AC527B
AC527B
AC527B
AC527B
AC527B
6
BODY
1
AE899
AE899
AE898
AE898
AE898
AE898
7
CAM RING
2
AC195
AC195
AC195
AC195
8
ROTOR ASSEMBLY
1
AE896
AE895
AE897
AF746
AE319
AE333
9 ∆
VANE
4
AE893
AE893
AE894
AE894
8
AE894
AE894
10
DEAD END PLATE
1
AC617
AC192A
AC192
AC192
AC192
AC192
11 ∆
END CAP GASKET
1
AC229
AC229
AC229
AC229
AC229
AC229
12
DEAD END CAP
1
AC228A
AC228A
AC228A
AC228A
AC228A
AC228A
*** ∆
MUFFLER
1
AF350
AF350
AF350
AF350
AF350
AF350
***
FOAM
1
AG896
AG896
AG896
AG896
AG896
AG896
***
SERVICE KIT
1
K285
K285
K286
K286
K298
K298
EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION
1AM/1UP SERIES
MX1-GAM SERIES
MX2-GAM SERIES
SERIVCE KIT #760-06281 includes
:
1
Shaft
2
Drive End Bearing
2A
Dead End Bearing
5
Shims
7
Vane
10
End Cap Gasket
13
Muffler Felt
SERIVCE KIT #760-06280 includes:
1
Seal
2
Bearing
5
Shims
9
Vane
11
End Cap Gasket
