TROUBLESHOOTING
Problem Reason/Remedy
Low
Torque
Low
Speed
Won’t
Run
Runs
Hot
Runs well then
slows down
Dirt or foreign material present. Inspect and flush.
Internal rust. Inspect and flush.
Low air pressure. Increase pressure.
Air line too small. Install larger line(s).
Restricted exhaust. Inspect and repair.
Motor is jammed. Have motor serviced.
Air source inadequate. Inspect and repair.
Air source too far from motor. Reconfigure setup.
1
2
3
6
7
8
9
4
5

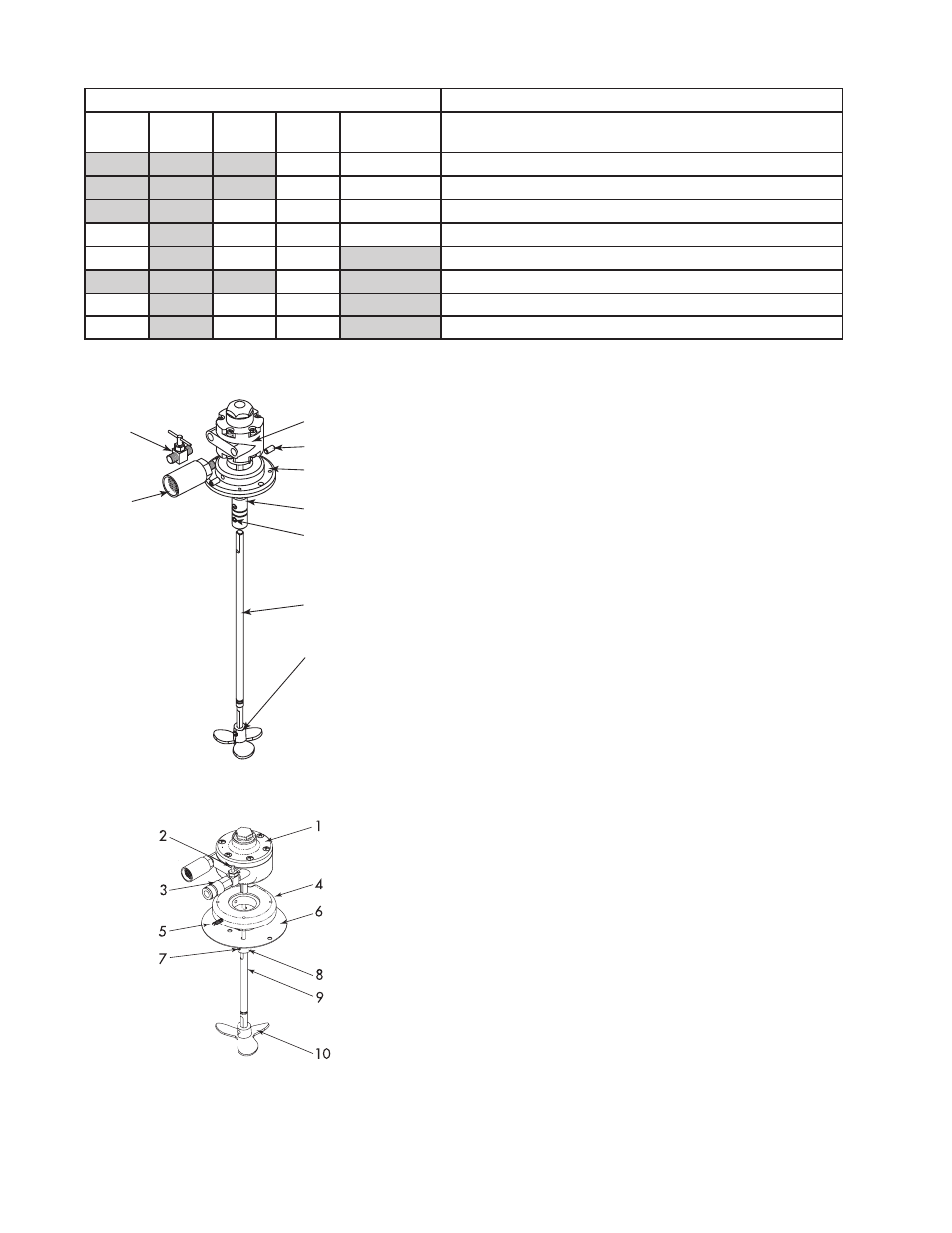

MX1 SERIES PARTS LIST
2 gallon models 5 gallon models
1 385-06145 385-06145 motor
2 753-04215 753-04215 set screw
3 533-13088-31 533-13088-31 motor adapter, cast aluminum
4 738-02977-41 738-02977-41 needle valve
5 746-06166 746-06166 muffler
6 571-19588-88 571-19588-88 coupling
7 753-03138-81 753-03138-81 set screw
8 558-36774-88 558-37565-88 shaft
7 525-32522-88 525-32522-88 propeller blade
420-37978-11 420-39570-11 plated lid, not shown
753-04325-81 753-04325-81 thumb screws (2), not shown
MX2 SERIES PARTS LIST
1 385-06145 motor
2 738-02978-41 needle valve
3 741-05143 coupling
4 533-12929-31 motor adapter
5 753-05248 set screw (2)
6 615-32501-81 mounting plate
752-01263-88 hex screw for mounting plate (2), not shown
7 753-03904-81 set screw (4)
8 572-11588-88 coupling
9 557-29692-88 shaft
10 769-07795-88 propeller blade
741-08866 air adapter plug
