7. The rpm’s may be increased or decreased at any time by pressing the (
V- Λ) arrow keys.
Note: The rpm’s displayed are calibrated using 120mm bottles. If using 110mm bottles
please consult CG Life Sciences in order to change calibration.
8. The unit can be stopped at anytime by turning off the Main Power Switch. Note: When
power is turned on the unit will ramp to last rpm set value.
9. For more information about the display features, please reference the Omron E5CC
controller manual supplied with the Roller Apparatus.
Speed Control
V- slower Λ- faster
RPM Display
(Actual)
Motion Alarm L.E.D.’s
(OPTIONAL)

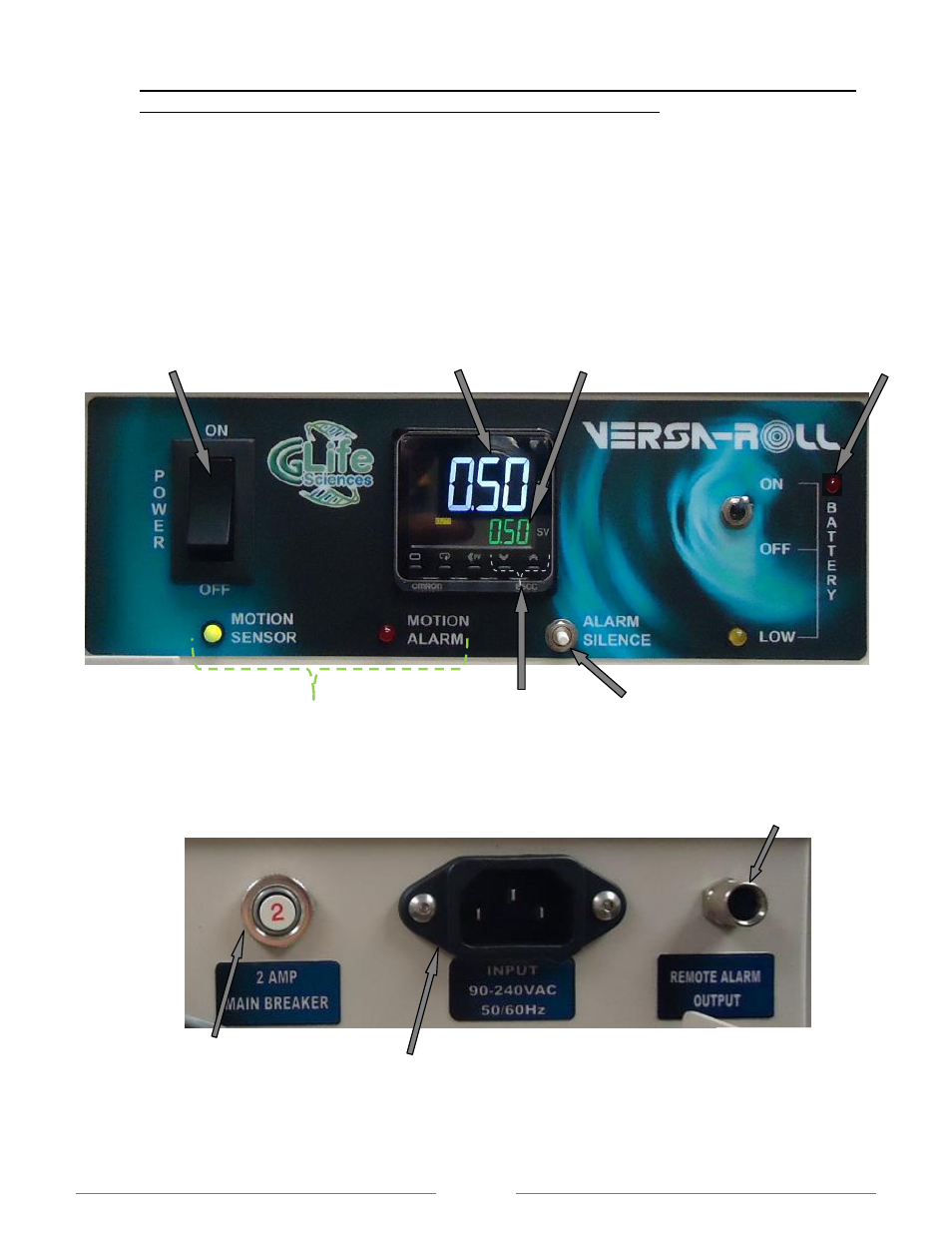

Figure 2: FRONT PANEL
Battery
Back-Up
( OPTIONAL)
Motion Alarm
Silence Button
(OPTIONAL)
RPM
(Set value)
Main Circuit
Breaker
2A/250V
Relay is
switched if
alarm is
activated
Figure 3: REAR PANEL
Main Power Input
Receptacle (90-240 VAC)
Remote Alarm
Output (Option)
