6.2 Controls
On/Off Button
Standby Extern
7.3 Operation
➊ Select the flow rate
→ Note: If the system should prime fast then select
the highest possible flow rate.
➋ Start the priming/pumping by pressing the
ON/OFF button (STANDBY goes off).
➌ Adjust the flow by turning the knob.
7.4 Removing the Pump
➊ After using the pump rinse the pump and system
with a neutral liquid and then pump it empty.
➋ Remove the adaptor from the plug.

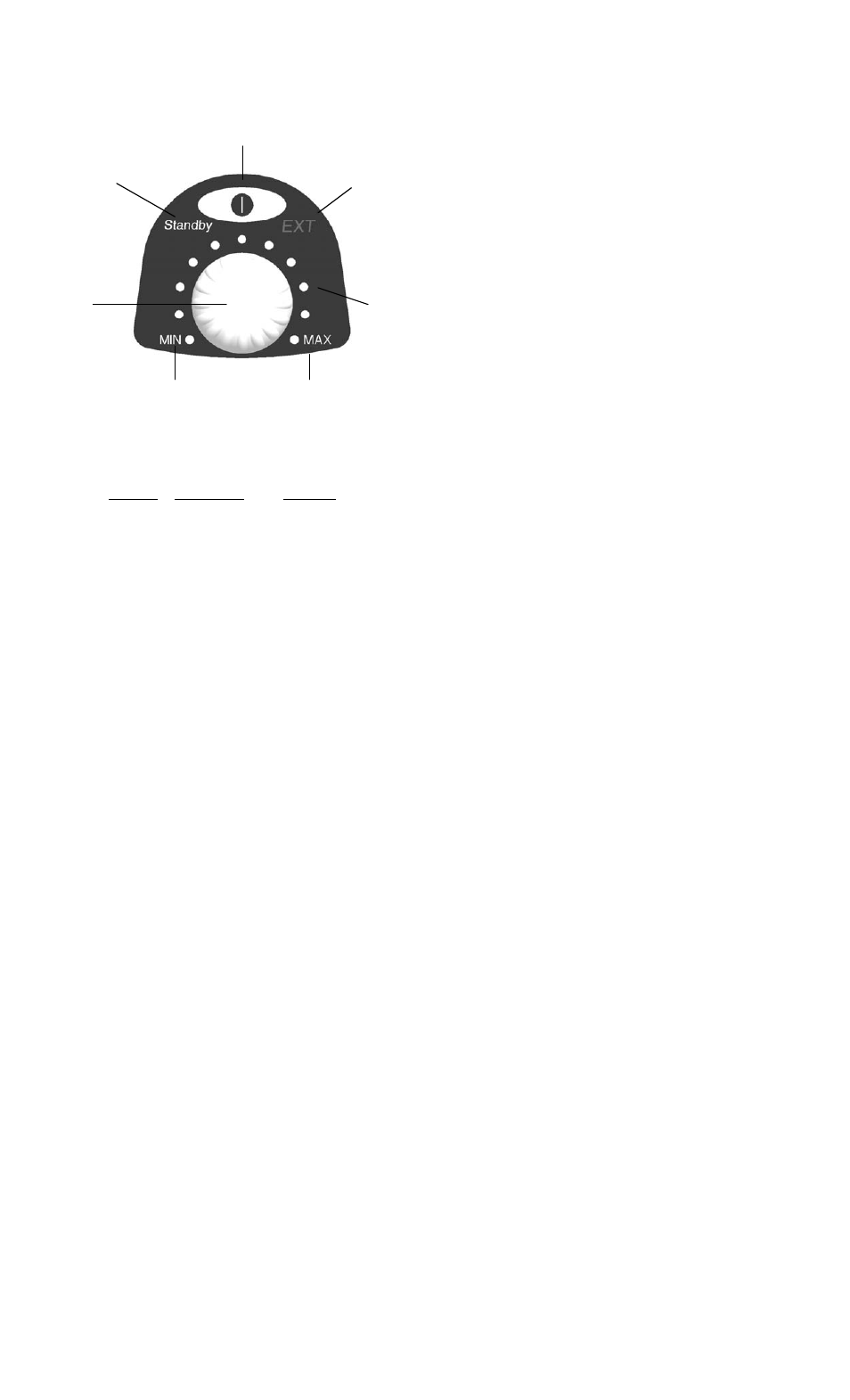

Position Description Function
1 ON/OFF Button Turns the pump on
and off
2 EXT Lights up when
analog signal is
being used (RC-
Version)
3 MAX Maximum flow
4 Knob Adjusts the flow from
10% to 100%
5 MIN Minimum flow
6 LED Indicates the flow
rate
7 Standby “Standby” lights up
green, as soon as
the pump is plugged
in. Pump is not
running.
7 Installation
7.1 Installation
Refer to the points in Section 5.
7.2 Installing the LIQUIPORT®
■ The pump is delivered ready to use.
➊ Connect the 1/4” Teflon tubing.
➋ Plug the adaptor in. The Standby lights up green.
Knob LED
-- 4 --
Maximum Minimum
