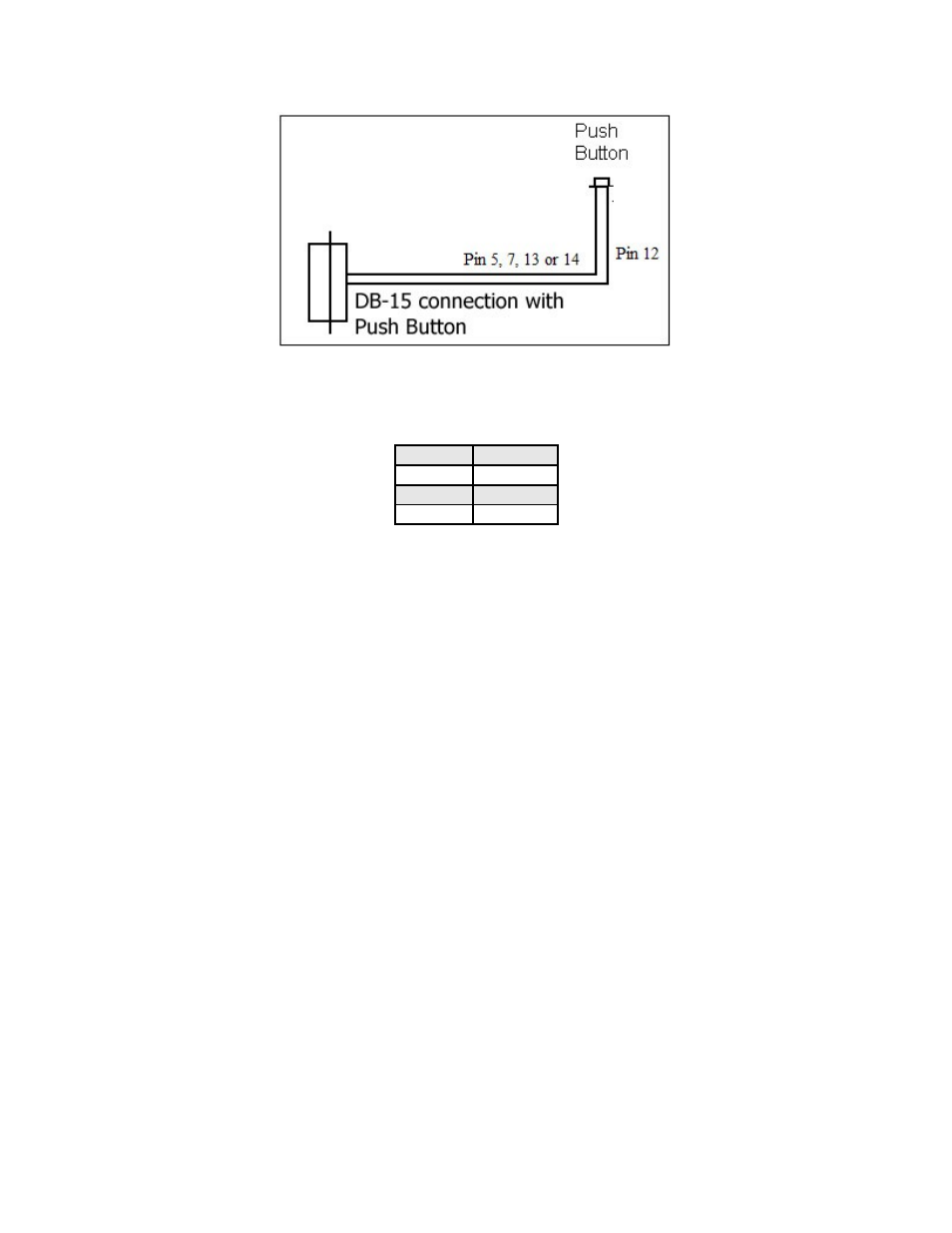

Figure 10: Push Button Schematic
Pins 5, 7, 13 and 14 can all be used with push buttons. Below shows the
corresponding input numbers for these pins.
Input 1
Pin 13
Input 2
Pin 5
Input 3
Pin 7
Input 4
Pin 14
Table 7
