2.
Your power supply will be connected to the RS232 card where the green
header is located. + is for +12-40VDC, - is for the Power Supply
Ground.
3. Connect the motor and optional encoder to the R356.
4.
Connect the RS232 card to your PC with a male to female DB-9 cable.
5. Turn your power supply on and follow instructions for using HyperTerminal.

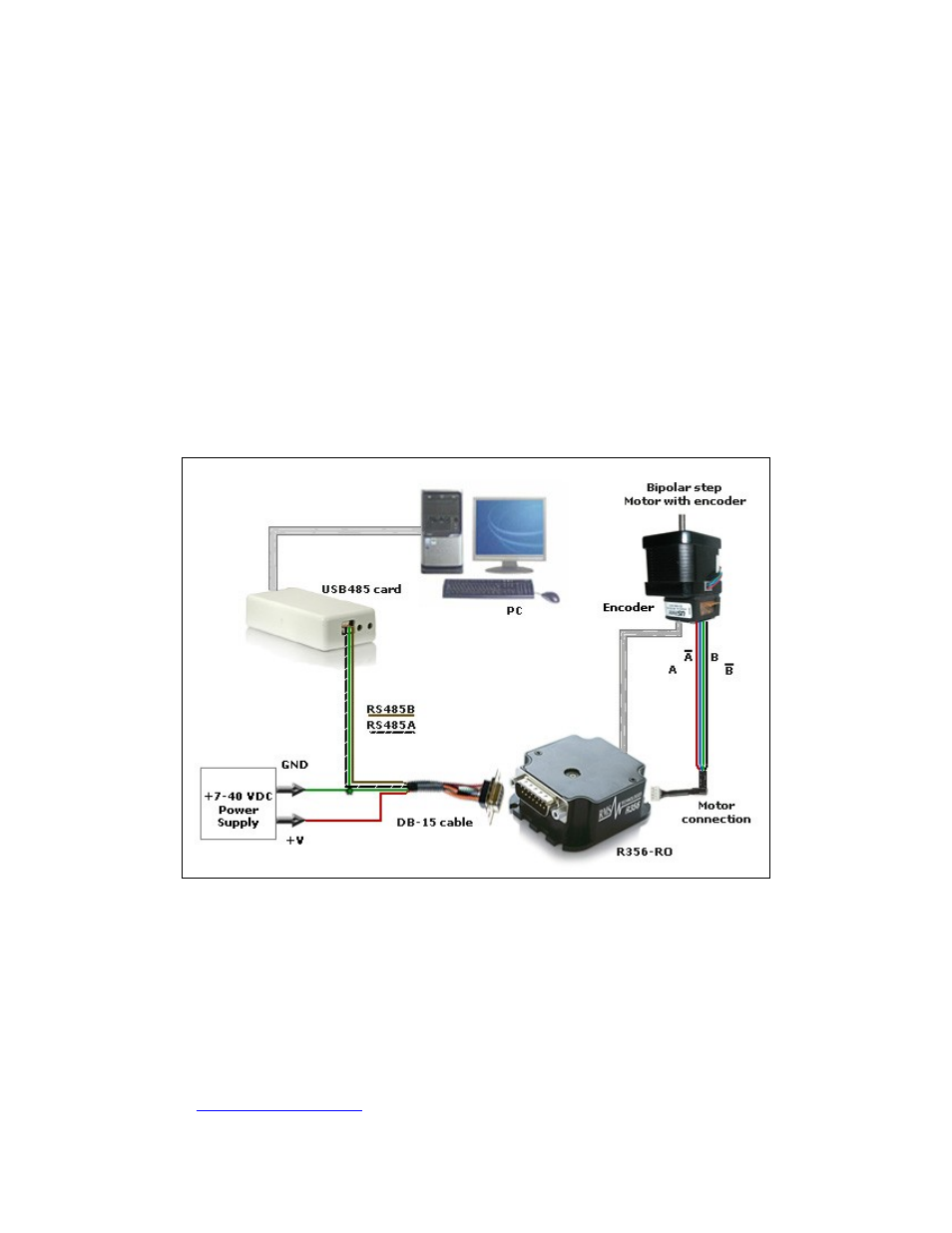

USB-485 converter card
Figure 6: Connection using USB
1.
The USB converter card connects to the R356 using the DB-15 cable that is
provided to you. The white 3-Pin connector is placed onto the converter card.
2. Connect the motor and optional encoder to the R356.
3.
Your power supply will be connected to the R356 directly. The USB card is
powered via the PC. R356’s pin 9, Red wire is +12-40VDC, pin 1, Green
wire is Ground. The USB485 converter card’s green wire needs to
also connect to the Power supply ground.
4.
Connect the USB card to your PC using the USB cable provided to you. You
will need to download driver files (2 of them). You can find them at:
