DVC/DVH Inverter Mini-Split Heat Controller
Number Name of Accessories Qty/unit
1 Wall Bracket 1
2 Plastic Dry Wall Anchor 5-8 depending on model
3 Self-tapping Screw A ST 3.9X25 5-8 depending on model
4 Seal (heat pump models only) 1 (Part 202720090001)
5 Drain Elbow (heat pump models only) 1 (Part 20110120011s)
6 Remote Controller (with 2 AAA batteries) 1
7 Self-tapping Screw B ST2.9X10 2
8 Remote controller holder 1
9 Nano silver air filter (field installed, not shown) 2
Note: Except for the parts provided above, all other parts needed for installation must be purchased
.

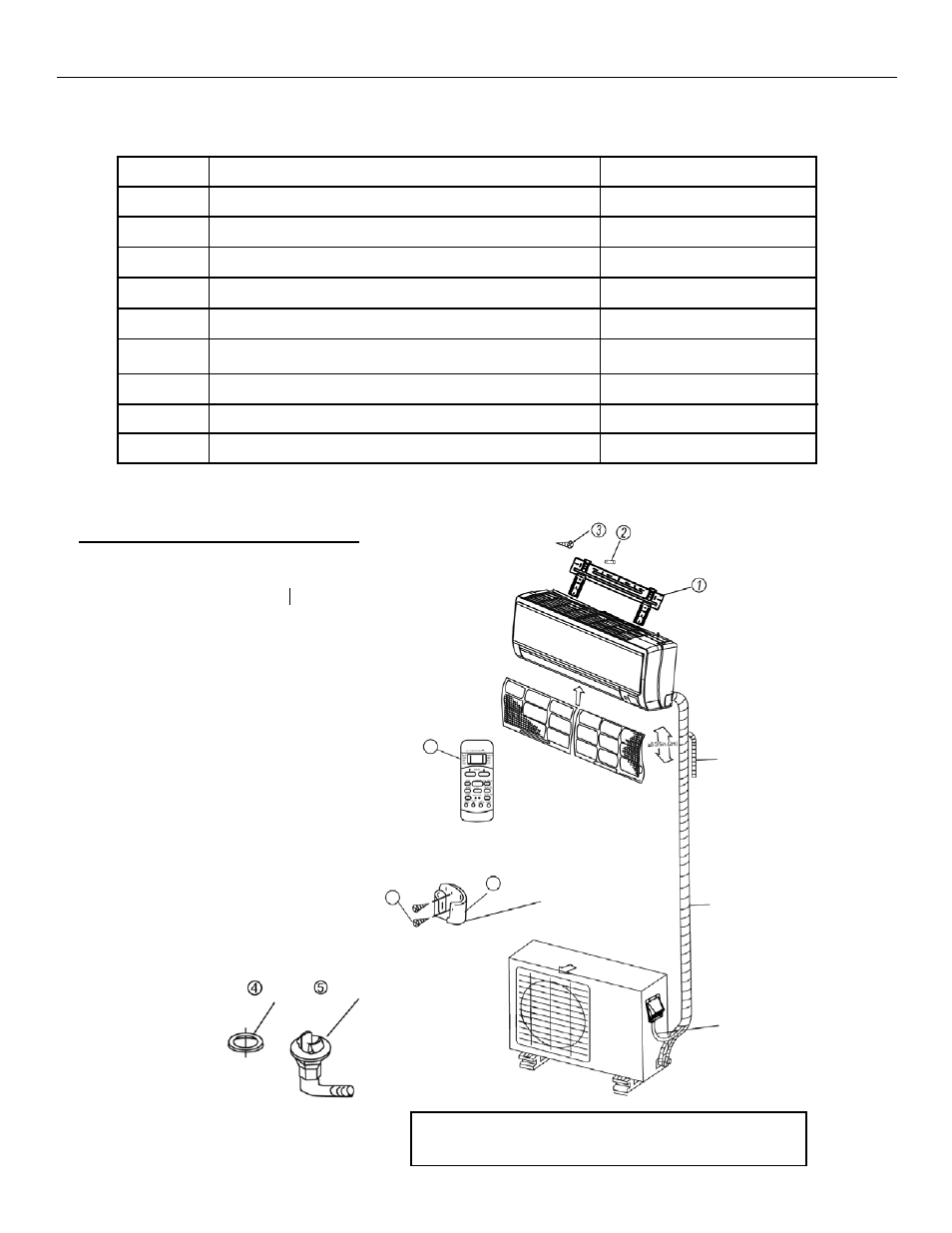

Accessories
• This illustration is for explanation purposes only.
• Copper lines must be insulated independently.
Drain Elbow Seal
“U” bend (cable)
Fig. 8
7
8
6
Tools needed for installation:
Level gauge
Screwdriver
Electric drill, Hole core drill o 2.5”(65mm)
Flaring tool set
Adjustable wrench
Refrigerant leak detector or a bottle of soap water
Vacuum pump
Gauge manifold
Thermometer
Multimeter
Pipe cutter
Tape Measure
Cable to wire units
Refrigerant line set for R-410A
Micron gauge
Allen wrench set (metric)
Additional drain pipe
Insulation
Air Filter
Remote Controller
holder
Remote Controller
Mounting screw
ST2.9x10-C-H
