PAGE 3 AV Revolution Quickstart Manual

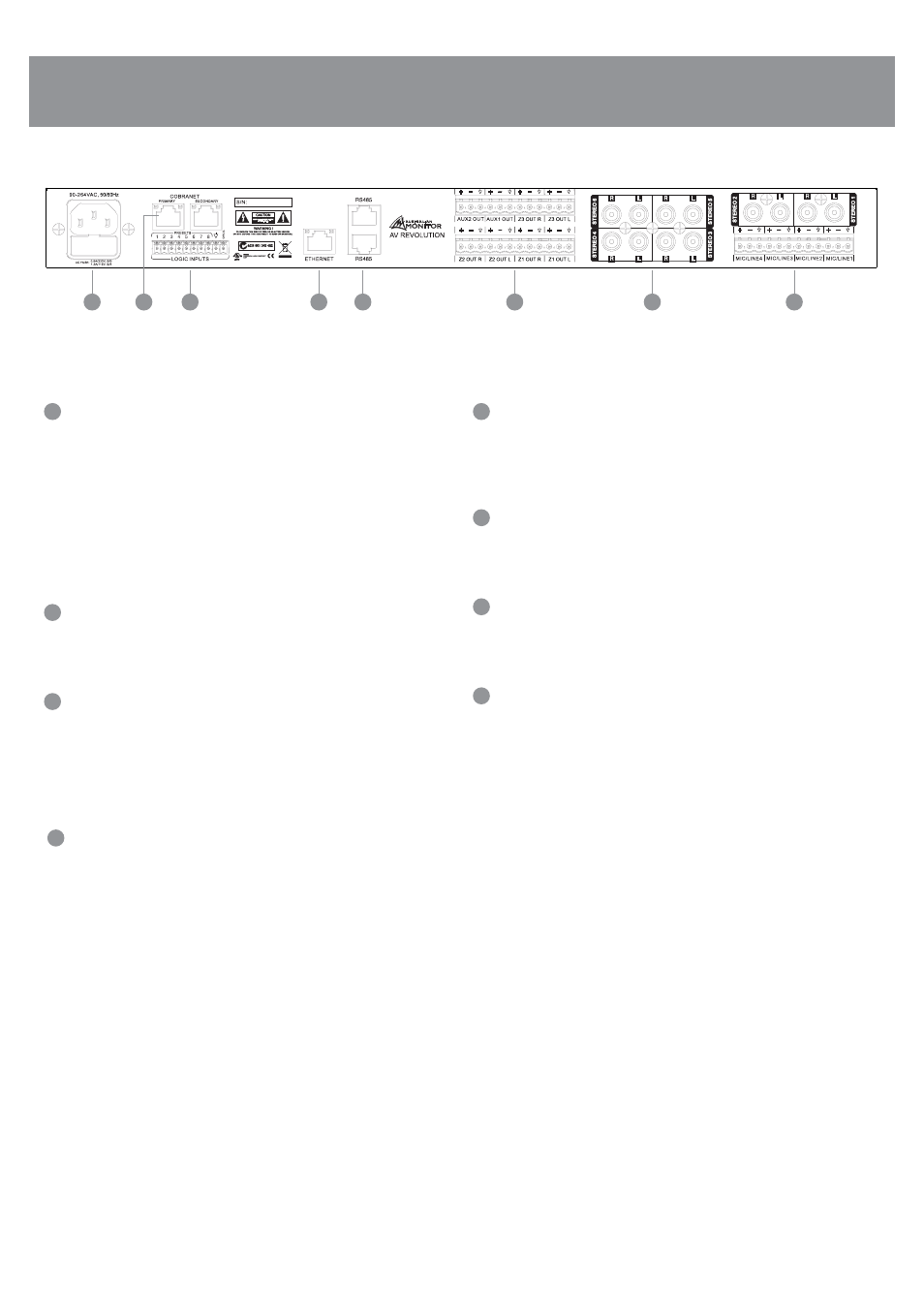

REAR PANEL
1 IEC MAINS SOCKET
This is a standard 3-pin IEC socket (IEC3020-C14). It accepts a standard IEC
mains cable, provided. The fuse draw contains the mains fuse and a spare.
The mains fuse is a time lag (slow blow) HRC 20mm x 5mm fuse, the fuse
ratings are:
230V : 0.6A S/B
115V : 1.2A S/B
The power supply is universal so it will accept voltages from 90-264V.
2 OPTIONAL COBRANET CARD
Optional module available to enable Cobranet connectivity. This card will
parallel all inputs and outputs to be available on Cobranet.
3 OVERRIDE AND PRESET CONTACT CLOSURES
Pins 1-8 are trigger pins for the global presets. When any one of these pins
are momentarily joined to the COM pin that preset will be triggered.
Pin O/Ride is a trigger for the external Master Override function. This can be
set up within the software.
4 ETHERNET PORT
The Ethernet port is a standard RJ45 port which allows the user control with
the supplied GUI or a third party control system.
5 RS485 PORTS
The RS485 ports allow the ICON-CP wall panels to be connected to the unit.
All wall panels use standard pin to pin wiring, using a straight through CAT5
cable is suggested to keep the RS485 line twisted for optimal noise rejection
6 BALANCED ZONE OUTPUTS
Balanced outputs for each zone are supplied on Weco connectors for easy
termination. These are a standard 5.08mm pitch.
7 UNBALANCED STEREO INPUTS
Unbalanced RCA connections are supplied for all stereo inputs. They are in
stereo pairs as the unit supports stereo right through.
8 BALANCED MIC/LINE INPUTS
Mic/Line inputs are supplied on WECO connectors for easy termination.
These are also a standard 5.08mm pitch.
1 3 4 5 6 7 8 2
