Addendum to TX8202 Manual
Issue Release Date:
Correction/Change: Vox muting enable/disable header
location.
This addendum to the TX8202 manual corrects the text
discussing the Priority mute function. The following text
has changed on page 5 Features and Page 6 Internal
Adjustments.
Vox Muting
Priority muting is provided for channels 1 and 2. Both
channels have equal priority and will mute channels 3-8
when signal is present. The muting function may be
disabled by moving the jumper labeled JP3 (See the
‘Internal Adjustments’ section of this manual for more
information). The unit ships from the factory with muting
enabled.
When channels 1 and 2 are disconnected from the main
left/right outputs, the muting function is automatically
disabled.
Internal Adjustments

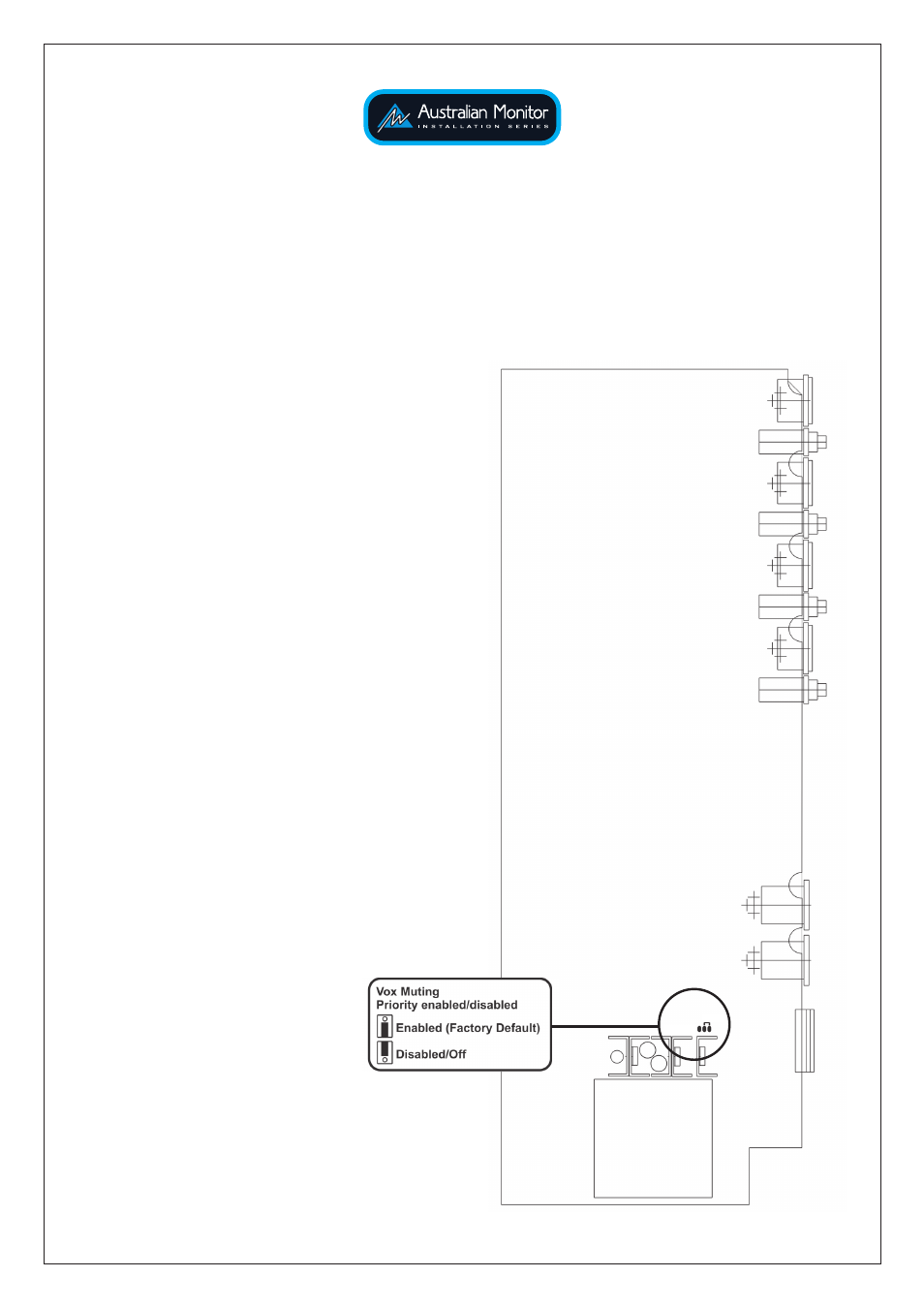

Vox Muting Defeat: The muting function may be disabled
by moving the jumper labeled JP3 (located on the pcb
close to Right output). The OFF position is clearly indicated
on the pcb beside the jumper (JP3 towards the rear panel).
The unit ships from the factory with muting enabled.
When channels 1 and 2 are disconnected from the main
left/right outputs, the muting function is automatically
disabled.
OFF
VOXJP3
