Addendum to TX8202 Manual
Issue Release Date: 11 th January 2007
Correction/Change: Vox muting enable/disable header location.
This addendum to the TX8202 manual corrects the text discussing the Priority mute function. The following text has changed
on page 5 Features and Page 6 Internal Adjustments
Vox Muting
Priority muting is provided for channels 1 and 2. Both channels have equal priority and will mute channels 3-8 when signal is
present. The muting function may be disabled by moving the jumper labeled JP3 (See the ‘Internal Adjustments’ section of
this manual for more information). The unit ships from the factory with muting enabled.
When channels 1 and 2 are disconnected from the main left/right outputs, the muting function is automatically disabled.
Internal Adjustments

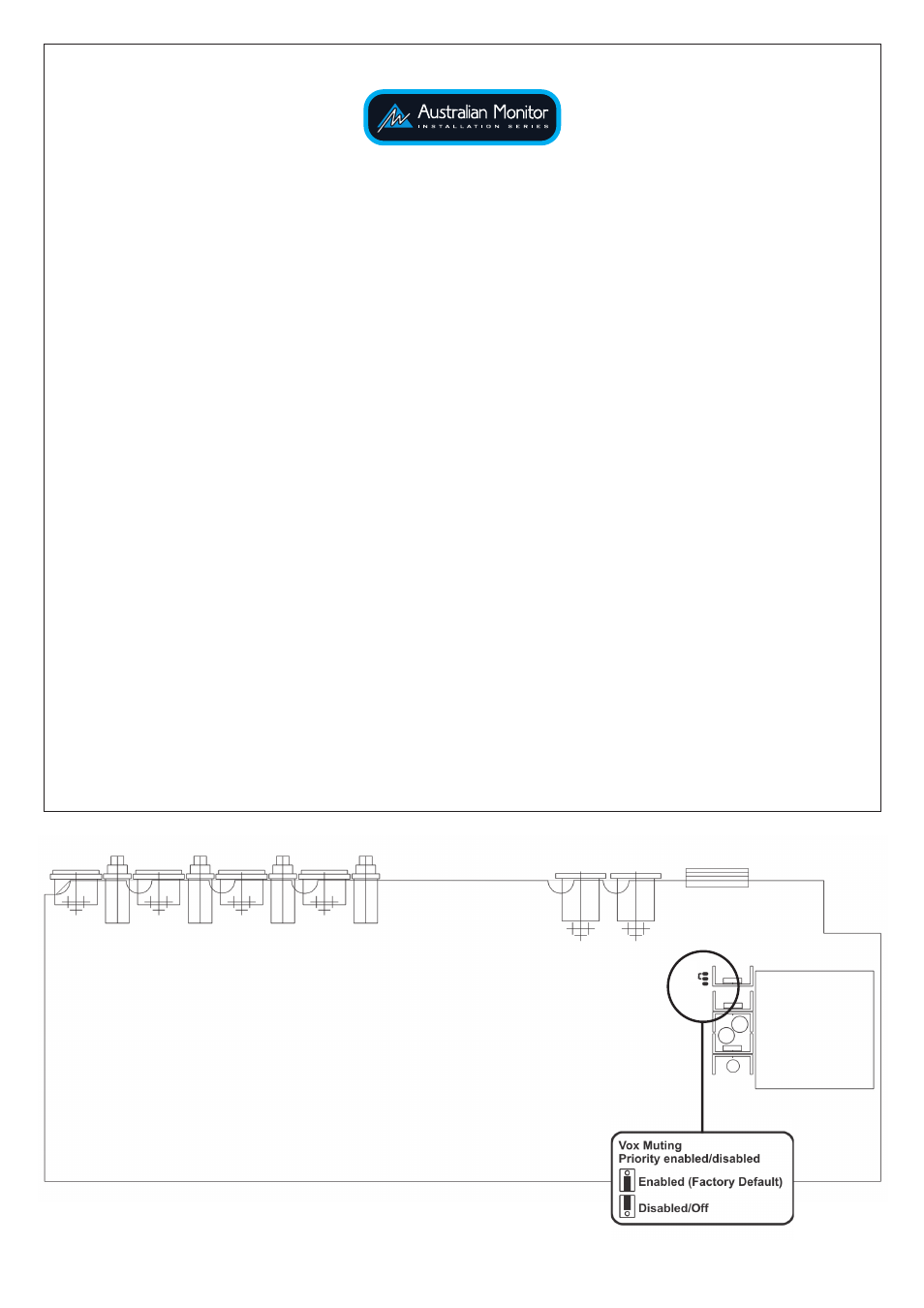

Vox Muting Defeat: The muting function may be disabled by moving the jumper labeled JP3 (located on the pcb
close to Right output). The OFF position is clearly indicated on the pcb beside the jumper (JP3 towards the rear panel).
The unit ships from the factory with muting enabled.
When channels 1 and 2 are disconnected from the main left/right outputs, the muting function is automatically disabled.
OFF
VOXJP3
