Camera Installation
Butterfly Mounting Instructions

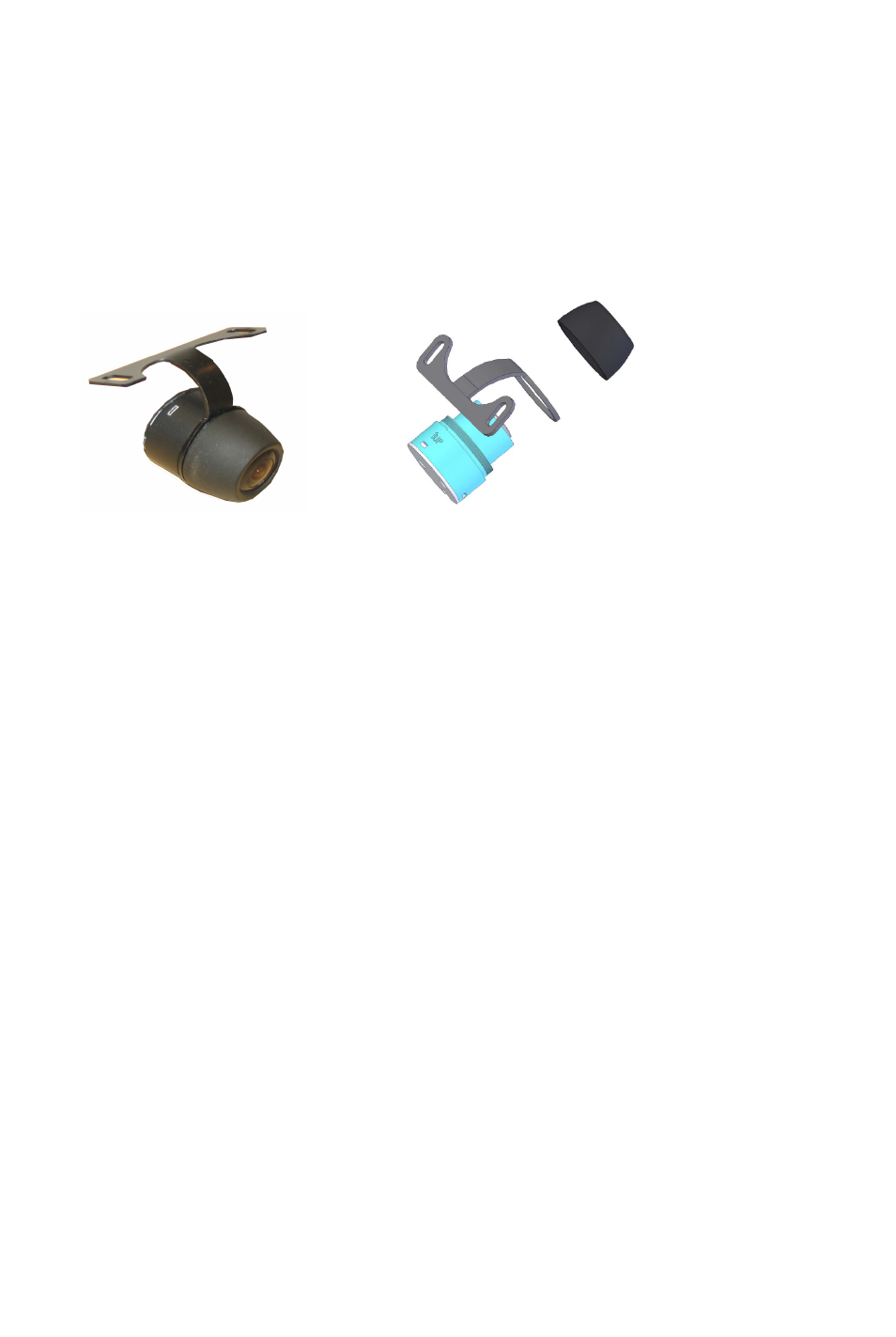

1. Assemble the camera – ensure that the top of the camera marked with
an alignment arrow and the word “UP” is aligned with the notch in
the metal bracket.
2. Decide on a suitable mounting position.
3. Examine the vehicle to determine the best way to run the power wires
to the reverse lights and the extension cable through the car.
4. Mount the camera using the provided bracket and screws – the
bracket can be bent to suit different mounting angles.
5. Route the camera wiring into the vehicle. The wire can be run through
an existing grommet, behind a tail lamp, under the trunk molding, or
if necessary, through a 5/8 inch hole drilled near the vehicle’s rear
license plate. When choosing a wiring path, make sure the cable
will not be damaged or pinched, as this may cause a short circuit
that is not covered by the warranty. If drilling a hole, perform the
following steps:
a) Acquire a 5/8 inch drill bit, rust preventive, all of which can be
purchased at a hardware store.
b) Check behind the intended drilling location before drilling to
verify that no wires or mechanisms can interfere with or be
damaged during drilling.
c) Check for interference with license plate lights and the hatch
release switch and/or mechanism.
