Photos – Goulds Pumps SRL Series - IOM User Manual
Page 19
Page 5

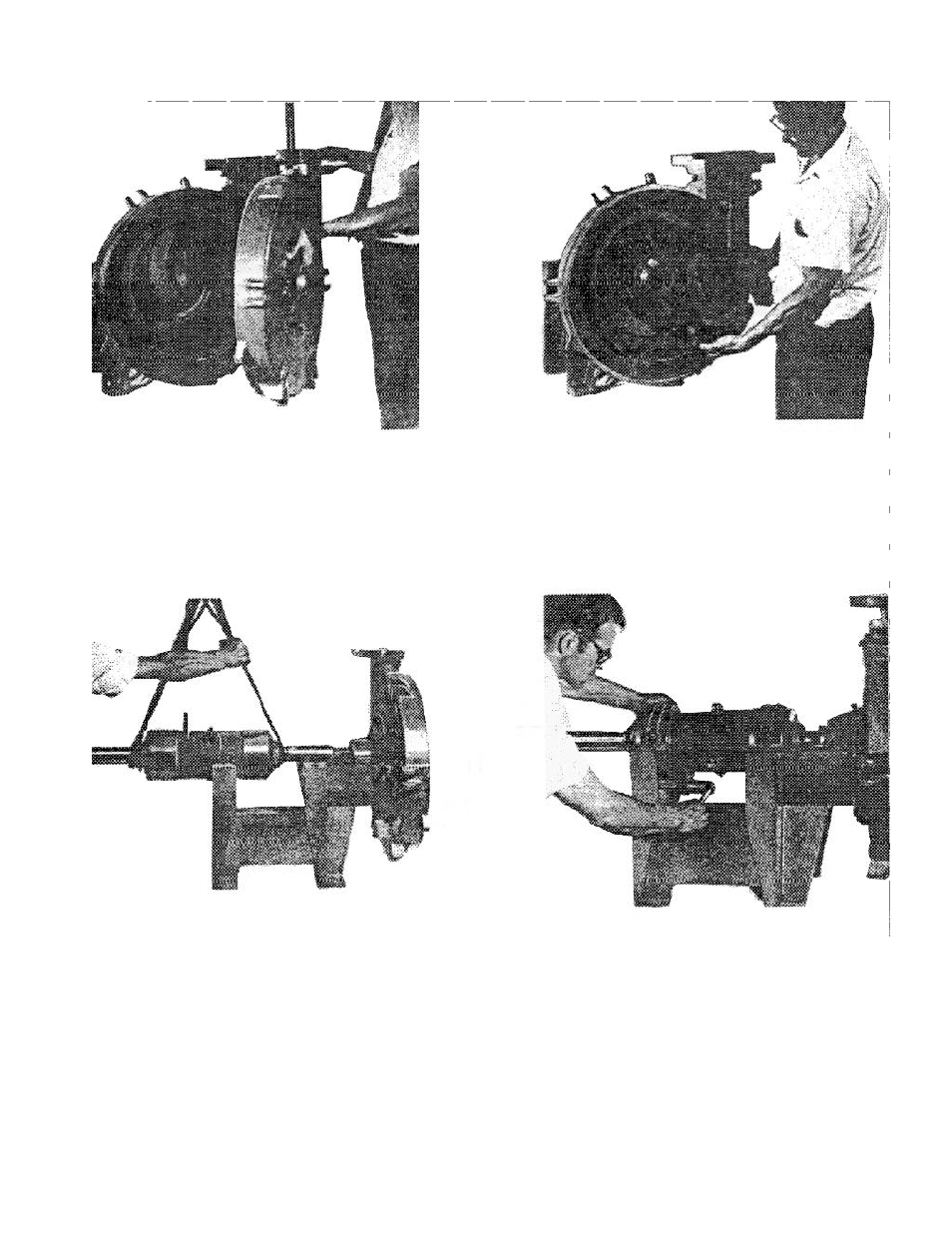

REMOVE CASING BOLTS AND SWING SUCTION HALF
CASING OUT FROM PUMP
ALL IMPELLERS ARE SCREW ON DESIGN. GLAND SIDE
RUBBER LINER MAY BE REMOVED, IF DESIRED.
BEARING CYLINDER SHOULD BE ROTATED 180° TO
ALLOW CLEARANCE. KEEP CYLINDER IN A
HORIZONTAL POSITION DURING REMOVAL.
IMPELLER CLEARANCE ADJUSTMENT. JACKSCREW
ACCESSIBLE FOR QUICK ADJUSTMENT. SECTIONAL
ASSEMBLY AND PARTS LIST
PHOTOS
