Nameplate field Explanation
MOD.
Pump model
SIZE Size of the pump
STD. NO. ANSI standard designation
MAT L. CONST. Material of which the pump is constructed
SER. NO.
Serial number of the pump
MAX DSGN PSI
@ 100F
Maximum pressure at 100ºF according to the pump design

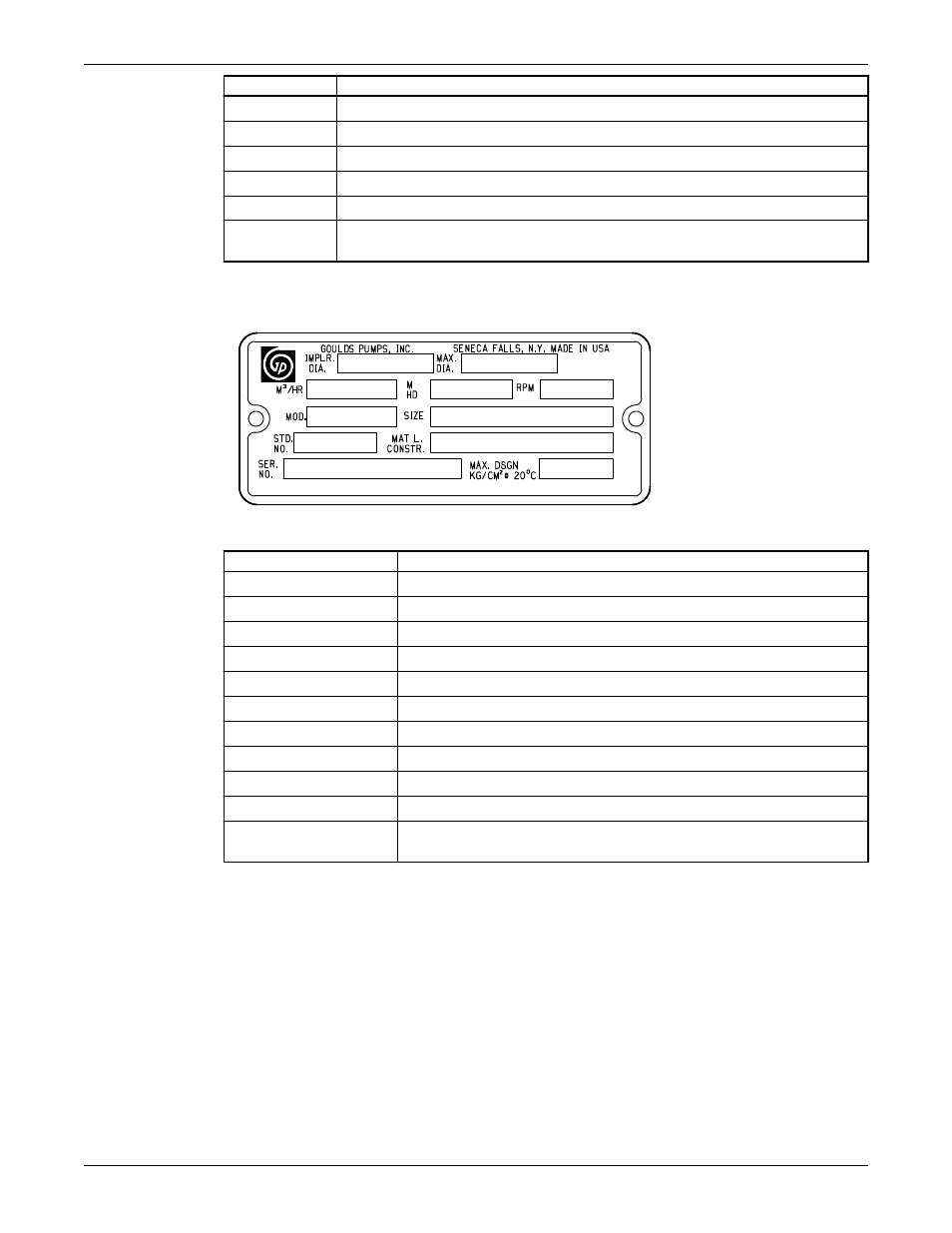

Nameplate on the pump casing using metric units
Table 6: Explanation of the nameplate on the pump casing
Nameplate field Explanation
IMPLR. DIA. Impeller diameter
MAX. DIA. Maximum impeller diameter
M 3 /HR Rated pump flow, in cubic meters per hour
M HD Rated pump head, in meters
RPM Rated pump speed, in revolutions per minute
MOD. Pump model
SIZE Size of the pump
STD. NO. ANSI standard designation
MAT L. CONST Material of which the pump is constructed
SER. NO. Serial number of the pump
MAX. DSGN KG/CM 3 @
20°C
Kilograms per cubic centimeter at 20°C
Product Description
