Attaching the fan blades – Minka Group F888-WHF User Manual
Page 15
7
ATTACHING THE FAN BLADES
Insert one fan blade into the blade slot on the motor
housing and secure with the blade support plate,
rubber washers, and screws. Securely tighten screws.

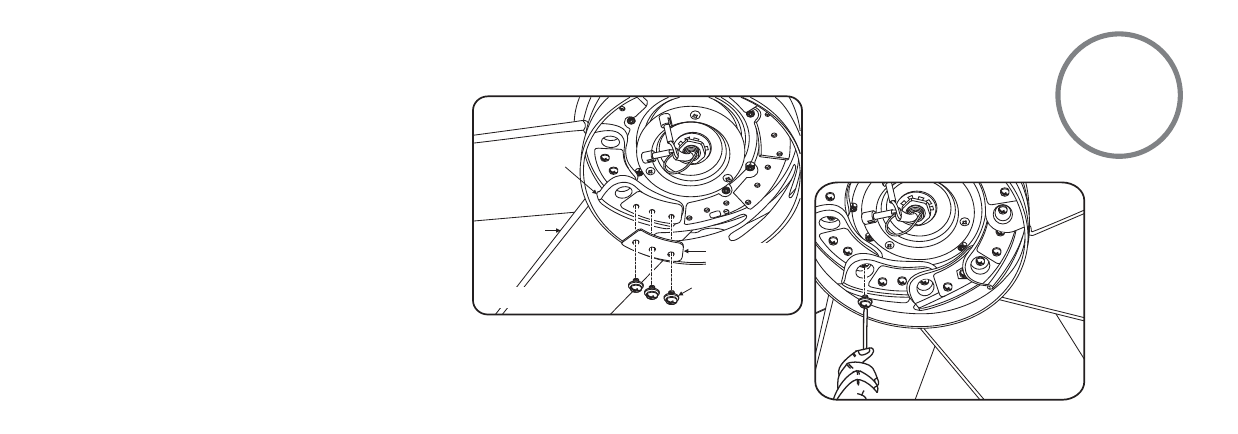

Repeat process with other blades. (Fig 14) Secure the
last screw through the blade hole. (Fig 15)
Fig. 15
FAN BLADE
SLOT
BLADE SUPPORT
PLATES
SCREWS AND
RUBBER WASHERS
Fig. 14
