Step 7. Slip Top Housing, Canopy cover and Canopy onto Downrod. Carefully re-install the
Hanger Ball onto the Downrod being sure that it's properly positioned over the Cross Pin and the
wires are not twisted, tighten Set Screw. (Fig. 10)
Make sure the arrow inside the top housing aligns with the arrow on the motor before installing
the top housing onto the blade. (Fig. 11)
Step 8. Lift the Motor Assembly and place the Hanger Ball into the Hanger Bracket. Rotate the
Motor Assembly as needed until the check groove from the Hanger Ball rests firmly over the
registration tab from the Hanger Bracket. Motor Assembly should not rotate if this is done
correctly. (Fig. 12)
Note:
Note: The canopy cover with the larger opening is for a slope ceiling installation.
Noted:
Noted:
If the top housing installation is improper, use a straight slot screwdriver to remove the
top housing.

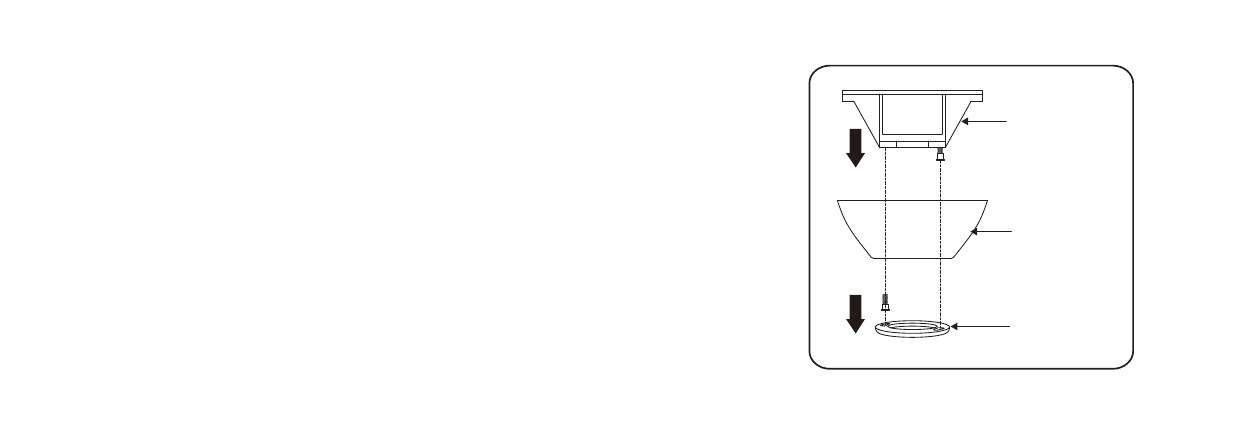

Fig. 5
HANGER BRACKET
CANOPY
CANOPY COVER
