Orifice Tip Replacement Procedure
Series 600 Quick Reference Card
L80-054 2 Rev 0 (7/08)

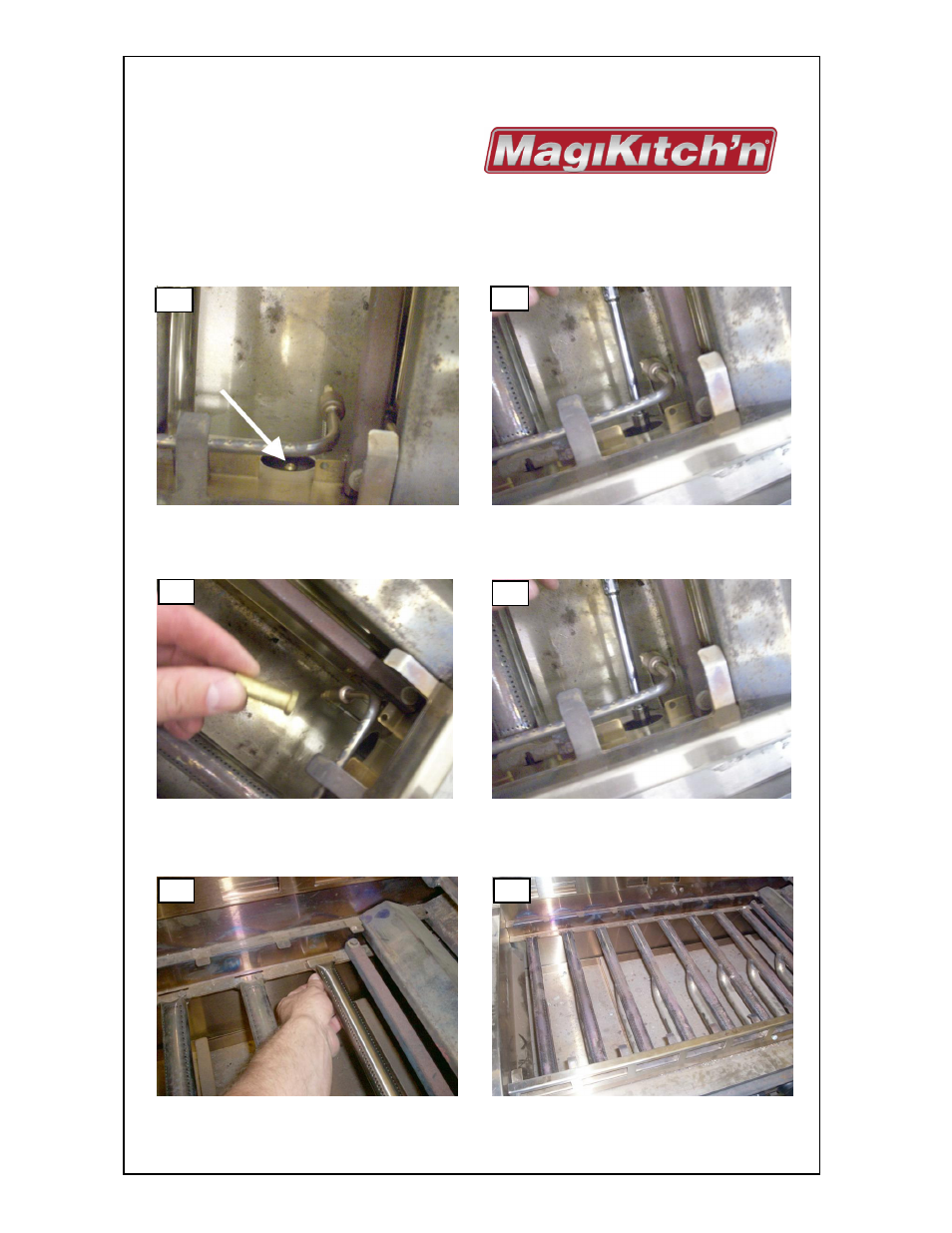

Replace burner, securing burner
in place with nut and bolt, or the
hitchpin, depending on Model.
Repeat procedure for all burner
orifices to be replaced.
Locate exposed main burner
orifice, check thread depth.
Remove the existing burner
orifice with the 1/2" deep socket.
Thread new orifice onto the
burner valve finger tight.
Tighten orifice onto the valve until
the thread depth from the
previous orifice is matched.
Note: Brass to brass piping connections should not require any
thread tape or sealer compounds. If gas leaks are detected and
thread sealants are used, the sealant should be suitable for gas
connections, and rated for use in elevated temperature zones.
9 10
11
8 7
12
