Pleasant Valley Rd., Cleveland, OH 44131. In Australia, the ventilation system must comply with AS/NZS
5601.1.
CAUTION
Excessive ventilation causes drafts, which will interfere with the operation of the appliance. Leave
at least 18 inches of open space between the flue opening and the intake of the exhaust hood.
CAUTION
Ensure that your ventilation system does not cause a down draft at the appliance’s flue opening.
Down drafts will not allow the appliance to exhaust properly and will cause overheating which
may cause permanent damage. Damage caused by down drafts will not be covered under
equipment warranty. NEVER allow anything to obstruct the flow of combustibles or ventilation
exiting the appliance flue.
1.6. Installation Setup
The installation of this appliance MUST conform to
local codes. In the absence of local codes in North
America, the installation must conform with the
National Fuel Gas Code, ANSI Z223.1/NFPA 54 or
the Natural Gas and Propane Installation Code
CSA B149.1 as applicable. In Australia, the
appliance must installed in compliance with
AS/NZS 5601 (current revision).
To Start uncrate appliance and locate installation
accessories.
1.6.1. Counter Use With Legs
CAUTION
To prevent equipment damage, DO NOT tilt
your MagiKitch'n griddle on only two legs, or
on its sides.

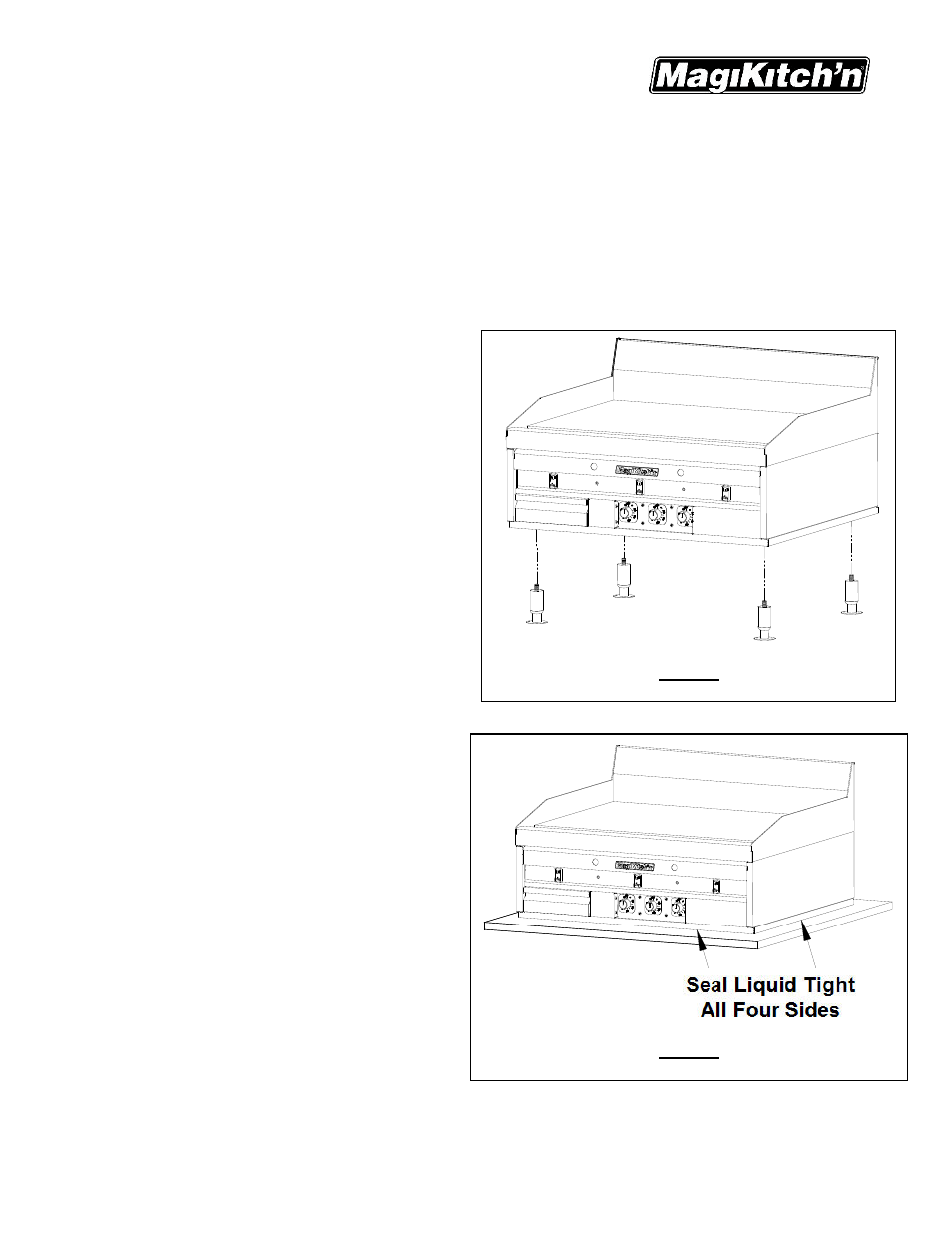

(See Figure 2) A set of 4” (10.2cm) legs is
shipped with the appliance (unless appliance
was specifically ordered without legs). A
threaded insert for the leg bolt is located near
each corner of the bottom appliance. Raise the
appliance to allow legs to be screwed tightly into
inserts. The appliance can be leveled by
adjusting the feet at the bottom of the leg
assembly. This can be done by turning the foot
in or out to lower or raise each corner as
needed.
NOTICE
4" Legs should not to be used with the
Equipment Stand.
1.6.2. Counter Use Without Legs
See Figure 3) The appliance must be sealed to the
counter to comply with applicable sanitation
standards. A bead of silicone sealant,
approximately ½ inch (13 mm) wide, is to be
applied to the bottom of the unit approximately ¼”
(7 mm) in from the front, back and side edges. We
suggest Dow Corning ® 732 silicone ‘RTV’
adhesive sealant or equivalent. (See NSF Basic
Criteria C-2 for details).
WARNING
DO NOT alter or remove structural material
on the appliance to accommodate placement
under a ventilation hood.
