Team Associated RC10 - Manual (Page 7)

7

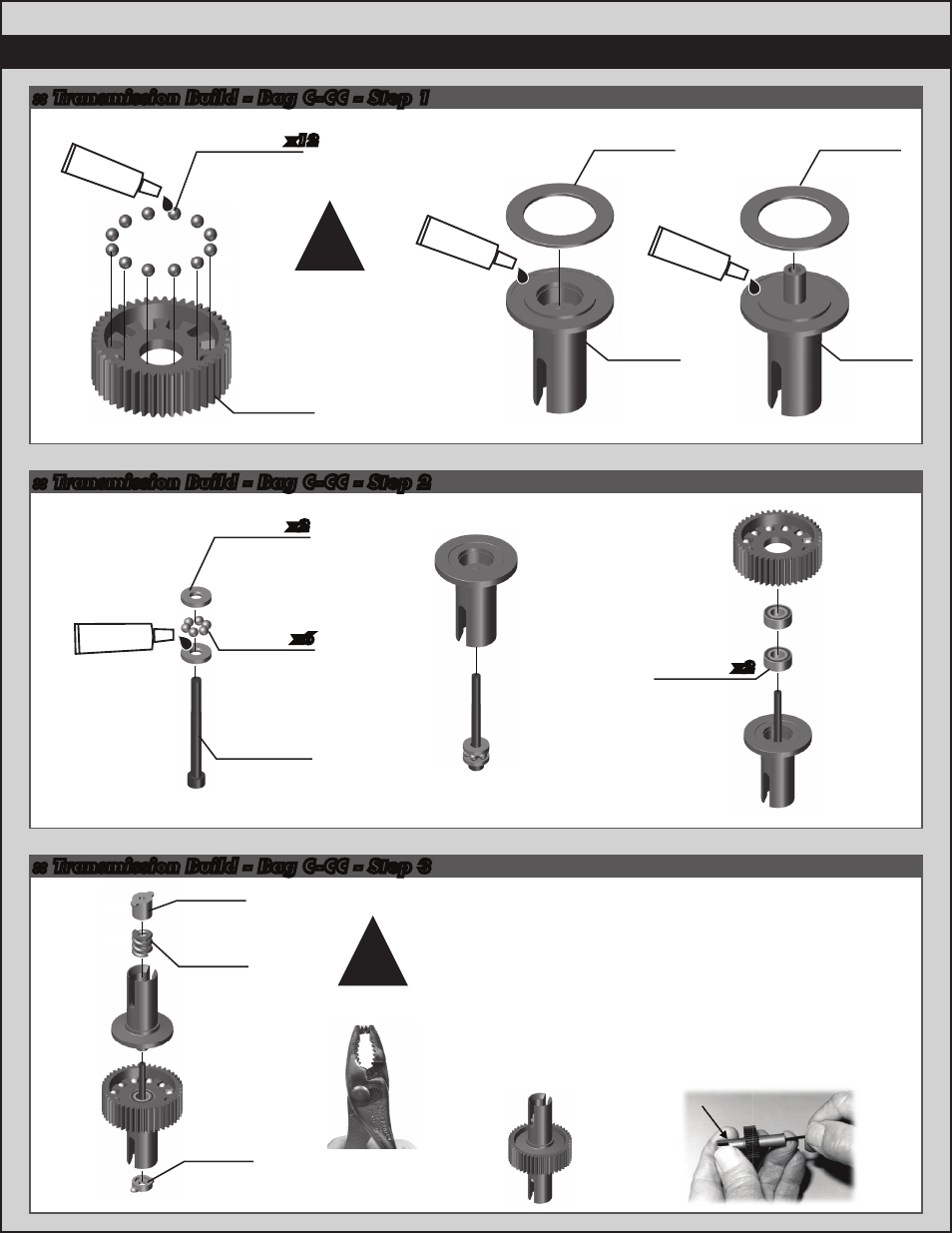

:: Transmission Build - Bag C-CC - Step 2
#6588
black grease
6573
Diff thrust
washer
6589
Bearing,
5/32 x 5/16
6574
5/64 diff
thrust
balls
6573
Diff thrust
bolt
x2
x2
x6
:: Transmission Build - Bag C-CC - Step 1
6579
Diff Drive
Ring
6579
Diff Drive
Ring
6580
Diff Gear
6578
Diff
Outdrive
(Left)
6577
Diff
Outdrive
(Right)
#6591
diff lube
#6591
diff lube #6591
diff lube
6581
3/32 carbide
diff balls
x12
The diff gear has four
molded dimples on
one side. The diff balls
should be installed on
the opposite side of
the dimples.
!
:: Transmission Build - Bag C-CC - Step 3
As you tighten the diff bolt, you will notice the
T-nut ears moving closer to the bottom of the
outdrive slot. This compresses the spring
behind the T-nut. The spring should be
completely compressed at the same time the
T-nut reaches the end of the slot.
Caution! Pay close attention to the feeling
when the spring is completely compressed.
Do not overtighten the bolt. When you feel the
spring completely compressed, loosen the diff
bolt 1/4” of a turn. Your diff should now operate
smoothly with resistance as the outdrives move
in opposite directions. After you have driven the
car once, re-check the diff setting.
Compress
spring first.
!
6575
Diff
cover
6575
Locking
t-nut
6582
Diff
thrust
spring
