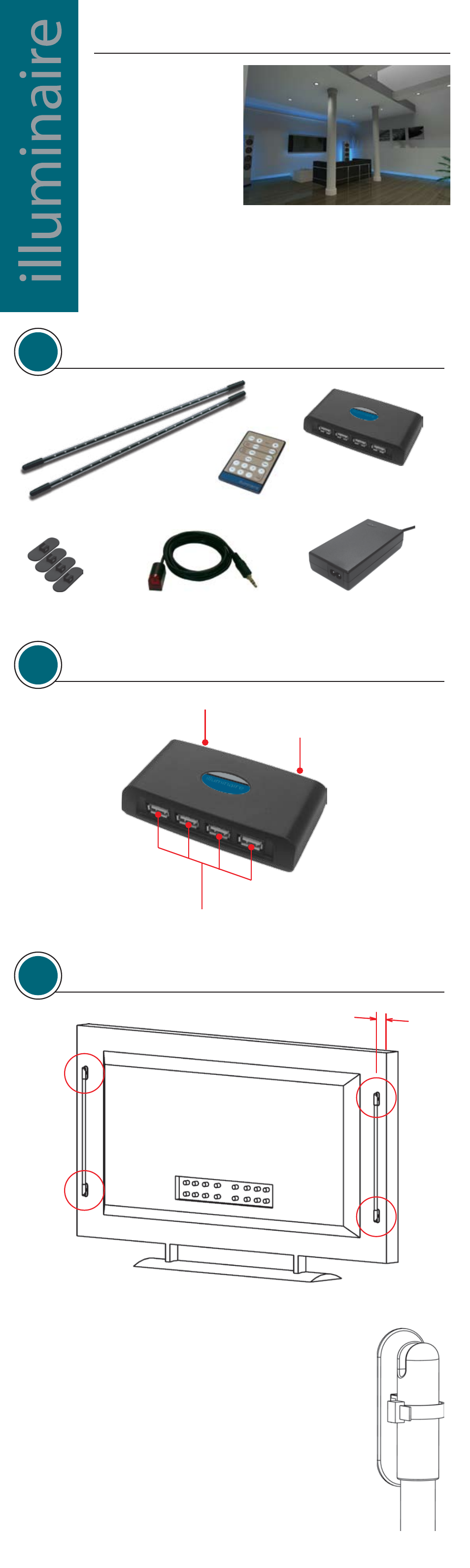

Varad PLX318 User Manual
Installation guide, Diagram, Installation

Installation Guide
1
Contents
PLX312
PLX318
2
Diagram
Thank you for purchasing Illuminaire’s home theater lighting system.
You can use this guide to:
• Get familiar with your home theater lighting system.
• Installation.
• Operation.
LED light bars
Remote control
Lithium battery
Remote Control LED
Digital Controller
Clamps/Tape/Tie straps
Power supply
3
Installation
4 LED light bar ports
• The LED light bars should be installed 1”-2” from the edge
of the television and centered vertically (diagram 1). Use the
supplied tape, clamps and tie straps (diagram 2) for mounting.
• The Digital controller can be mounted to the rear of the
television or placed in any other suitable location.
• The remote control LED can be installed in any location
where it will be visible by the remote control transmitter.
• Plug the LED light bars into any of the 4 ports on the digital controller.
• Connect the power supply to the digital controller.
• Connect the remote control LED to the digital controller.
All excess cable should be bundled together for a clean appearance.
Proceed to section 4 for operation
Power supply port
Remote control LED port
1“-2”
Diagram 1
Back view of television
Diagram 2
