NaceCare Solutions TTB516 - Manual (Page 3)

233969 / 01/13 (A20)
3

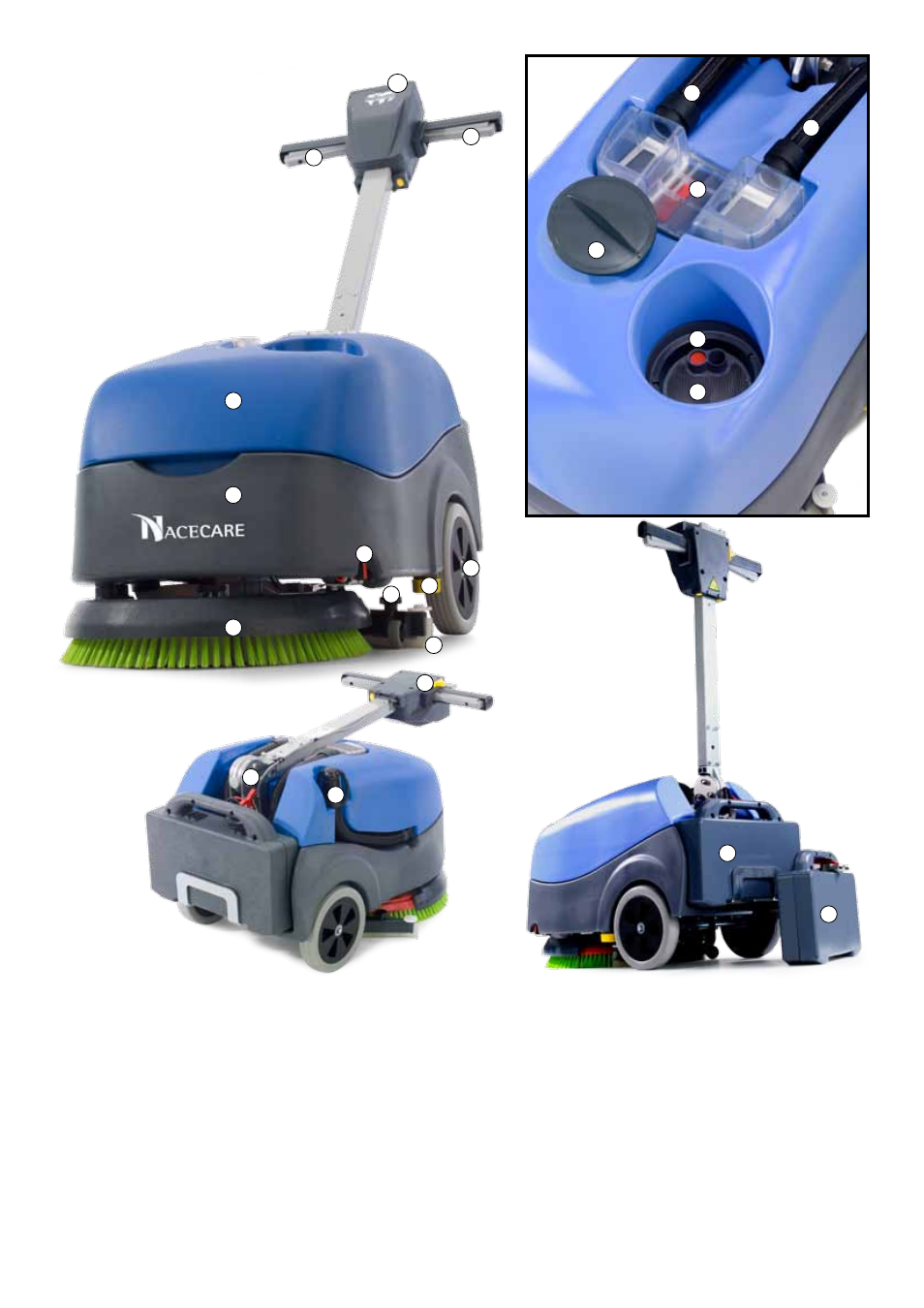

Machine Overview
1. Operator control panel ( see page 4 )
2. On / Off Lever
3. Waste water tank
4. Clean water tank
5. Brush deck
6. Squeegee blades
7. Floor-tool retaining knobs
8. Clean-water on / off tap
9. Clean-water emptying cap
10. Rear moving wheels
11. Floor-tool vacuum hose 12. Vacuum hose
13. Separator
14. Clean-water filler cap
15. Clean-water level indicator
16. Clean-water tank fill point
17. On / Off switch
18. Battery connector
19. Top tank (waste water) drainage hose
20. Battery
21. Spare / replacement battery
1
3
4
5
6
7
8
10
12
13
14
15
16
17
18
19
20
21
11
2
9
2
