OPERATING INSTRUCTIONS
Select GT/MT Switch position: Determine
the use of the BodyPack transmitter. If a lavaliere
or headset microphone will be used the switch
should be set in the “MT” position. If a
guitar/bass or if used with a line level device (pre
amp out) the switch should be set in the “GT”
position.
Power On: When powering up the transmitter
switch the power switch to the ON position. The
Battery Status indicator will flash briefly
indicating normal operational status. When the
indicator remains illuminated or does not
illuminate at all the battery level is low or
exhausted and battery must be replaced for
continued operation.
Gain Control : Volume can be adjusted by
the gain control. Gain control has no effect when
the switch is in the “GT” position (Guitar).

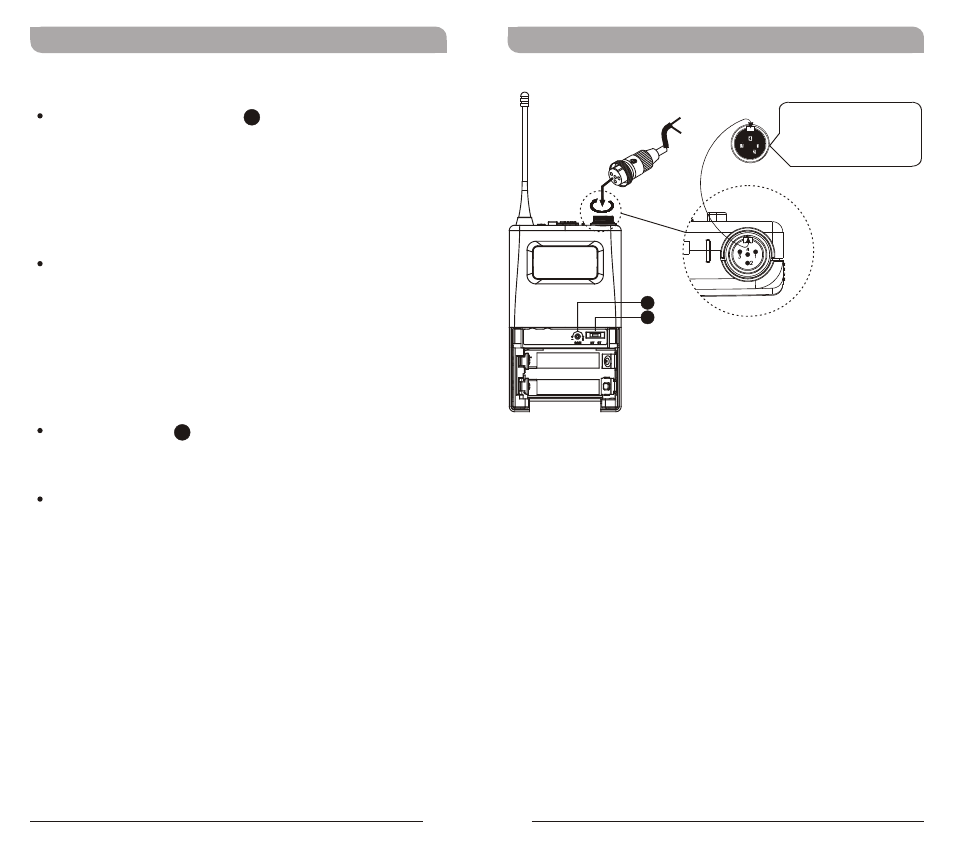

4-pin Connector: Before making these
connections power down the transmitter to
prevent damage to the transmitter, receiver or
speaker system. Align and insert the 4-pin plug
into the connector accordingly and tighten it in
the clockwise direction illustrated in Figure 3.
Then power unit up again.
6
5
Lavalier
Headset
(Figure 3)
UHF Bodypack Transmitter
9 10
UHF Bodypack Transmitter
The cutout on the
connector must match
the indentation on the
socket when inserting.
Capsule Connector
5
6
