Page 7

Single half-rack receiver
Dual half-rack receivers
(Figure 3)
(Figure 4)

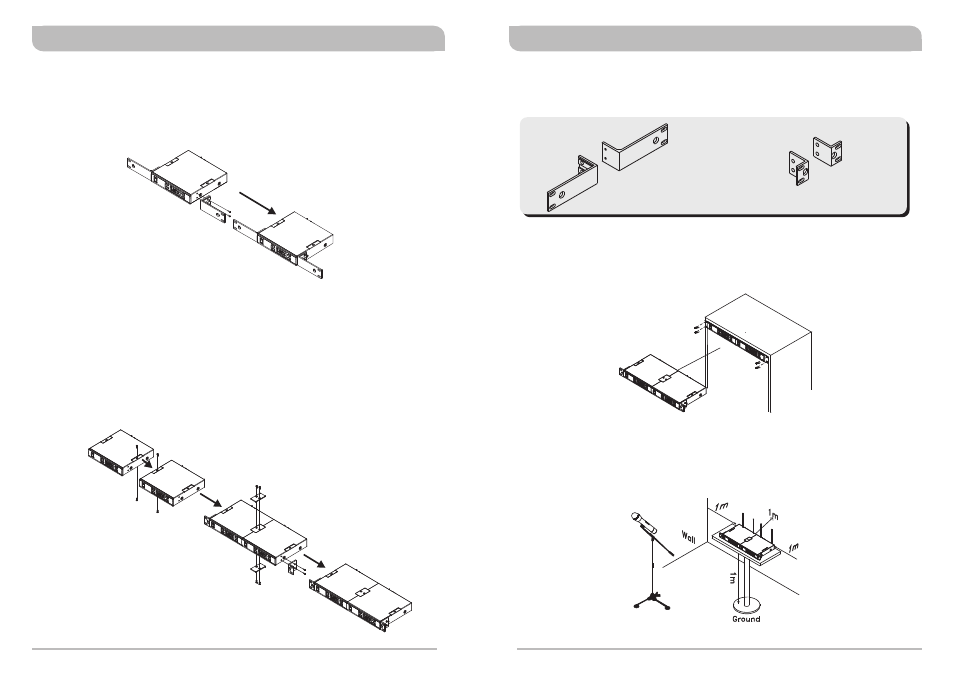

Install provided rack mount kit and fasten with screws on both sides. (Figure 3)
!
Unfasten the top and bottom screws for each receiver. Push the receivers next to
each other.
!
Place holding plates on top and bottom of the two receivers first, and following the
directions, slide both plates into position over the screw holes. Then tighten screws
(screws should be used in their original location; i.e., top screws for top holding
plate and bottom screws for bottom holding plate).
!
After both receivers are fixed together, fasten the rack mount kit on both sides of
the joined receivers as shown in Figure 4.
RACKMOUNT INSTALLATION FOR RECEIVERS
8
9
Diversity Receivers
Diversity Receivers
The rack mountable kits are pre-drilled with 4 opening holes to be fitted on an EIA
standard 19-inch rack case. (Figure 5)
(Figure 5)
(Figure 6)
For ideal reception and performance, install the receiver at least 1 meter (3 feet) above
the ground and away from EMI / RFI “noise” sources. In addition, place the transmitter
microphone at least 1 meter (3 feet) away from the receiving antenna, as shown.
(Figure 6)
FB-71
FB-72
Mounts 1 half-rack in
a single rack space
Mounts 2 half-racks in
a single rack space
Receiver Rack-Mount Kits
