MIPRO'S PROPRIETARY "ACT" FUNCTION & OPERATION KEY FEATURES
! Single-Channel (ACT-51/ACT-51B) and Dual-Channel (ACT-52/ACT-52B) in an EIA-
standard 19” ½-rack unit metal chassis.
! Featuring industry's first full color VFD (Vacuum Florescent Display) on a wireless
receiver.
! Two levels of brightness adjust automatically during performance and can be viewed
clearly from all angles and day/night environments for easy monitoring.
! Diversity technology for optimum reception.
! Programmable multi-function VFD displays all information on the same screen for
easy control and monitoring.
! Fully-electronic push buttons for quick set-up and control.
! Proprietary high performance RF filter and circuitry improve anti-interference
characteristics and increased compatible systems.
! Industry's first ACT function allows rapid and precise transmitter frequency set-up.
! Dual "Pilotone & NoiseLock" circuits minimize interferences.
! Connects to various MIPRO antenna systems.
! Reliable RF, transparent audio performance and an array of leading-edge features
desired by audio professionals for a host of diverse applications.
What is ACT?
“ACT” stands for “Automatic Channel Targeting”. MIPRO developed and patented this
innovative infrared (IR) technology in 2001. MIPRO was the first manufacturer in the
industry to automatically synchronize the frequency selected on the receiver to any ACT
handheld or bodypack transmitter on the same frequency band.
ACT Benefits
ACT Set-Up
! No manual frequency adjusting needed, unlike traditional transmitters.
! Simple, fast and precise frequency set-up without mechanical errors.
! Once the frequency has been set, the data is stored in memory, meaning that
the frequency is set until it is changed by performing the “ACT” function again,
even after powering off.
! Ensure a receiver channel is set up and transmitter batteries are fresh, installed
correctly and powered-on.
! Press the button on the receiver to activate the ACT syncing function.
Once activated, the RF meter cursor and working frequency start blinking.

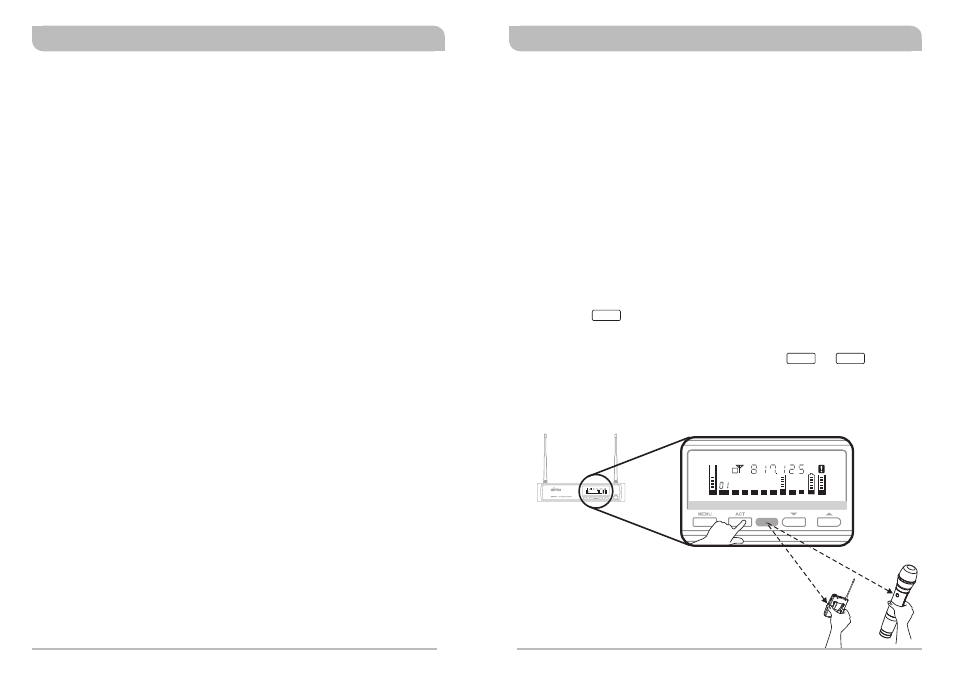

! Bring ACT handheld or bodypack transmitter within 30cm (12”) of the IR port
on the receiver. The IR port is located between the and buttons
and indicated by a round-shaped red color spot. The frequency will sync
automatically.
! When the frequencies are synchronized successfully between the receiver and
transmitter, the RF meter cursor and working frequency stop blinking and the
indicators in the RF meter are lit.
