18500

rechargeable

lithium

battery

 Capsule Module: Protects detachable

microphone capsule module and internal foam

prevents breathing, wind and POP noises.

 Fixed Ring



 Housing: Protects transmitter PCB, battery

compartment and batteries.

 LCD Panel: Displays transmitter parameters.

 Power On/Off Switch: Slides the power switch

to the “ON” position for use or to the “OFF”

position when not in use.

 MODE Button: Allows access to available

functions displaying in LCD panel.

 SET Button: Changes parameters.

 ACT Infrared (IR) Port: Receives signals from

receiver to synchronize frequencies.

 MUTE Button: To mute and un-mute the audio

signal temporary.

 Battery Charging Contact: Align contacts

during charging.

Protection Cover: Protects power switch and

prevents user has direct access to power switch.

Channel ID Clip: For channel identification

(Optional)

Battery Compartment: Accommodates one

18500 rechargeable battery.

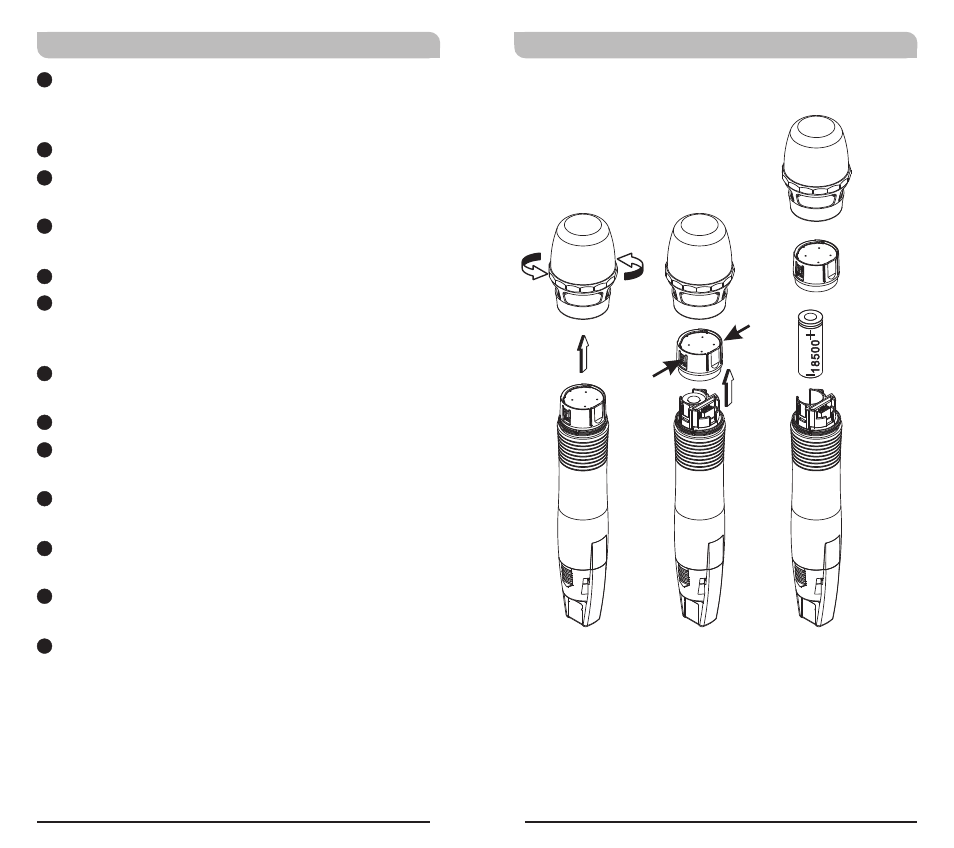

Operating instructions for insertion &
removing battery

Rechargeable Wideband Digital Handheld Transmitter
