66

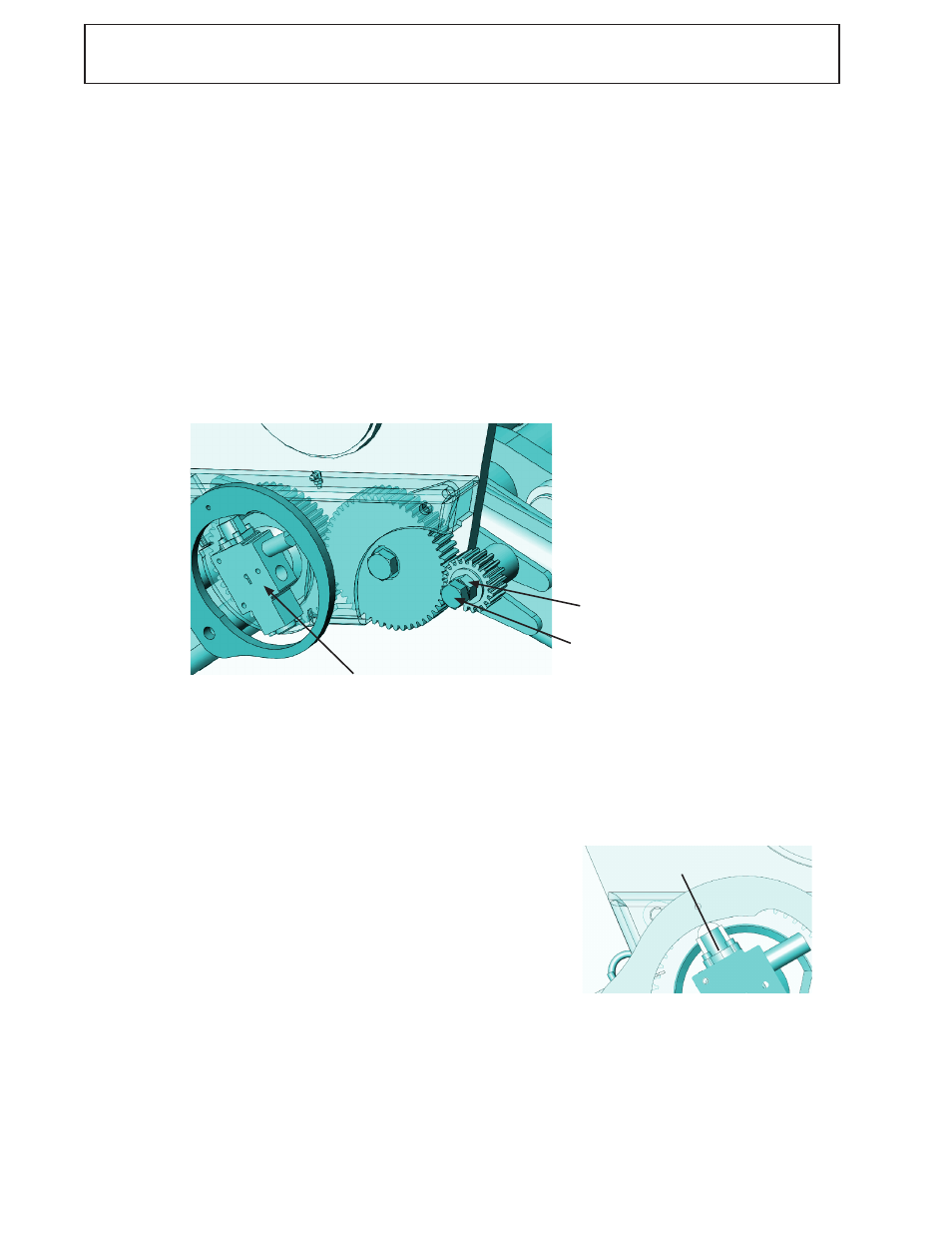

51141 SYNCRONIZATION ASSEMBLY ADJUSTMENT
T-WREX’s reach assembly consists of front and rear arms that require syncronization.
To achieve syncronization front to rear, front and rear hydraulic cylinders must receive an equal
volume of hydraulic oil. 51141 is a continously correcting mechanical-input hdyraulic flow divider.
(1)Extend unit fully.
(2)Loosen locking bolt, then tighten snug.
(3)Use 1 1/8” wrench to adjust T170 to starting point on cam.
(4)Tighten locking bolt enough to keep driving gear from rotating
during extend/retract operation.
(5)Retract unit 3-4 feet.
(6)Extend unit fully while observing which arm extends last.
(3)starting point
locking bolt
adjust hex
T170
