assembly instructions

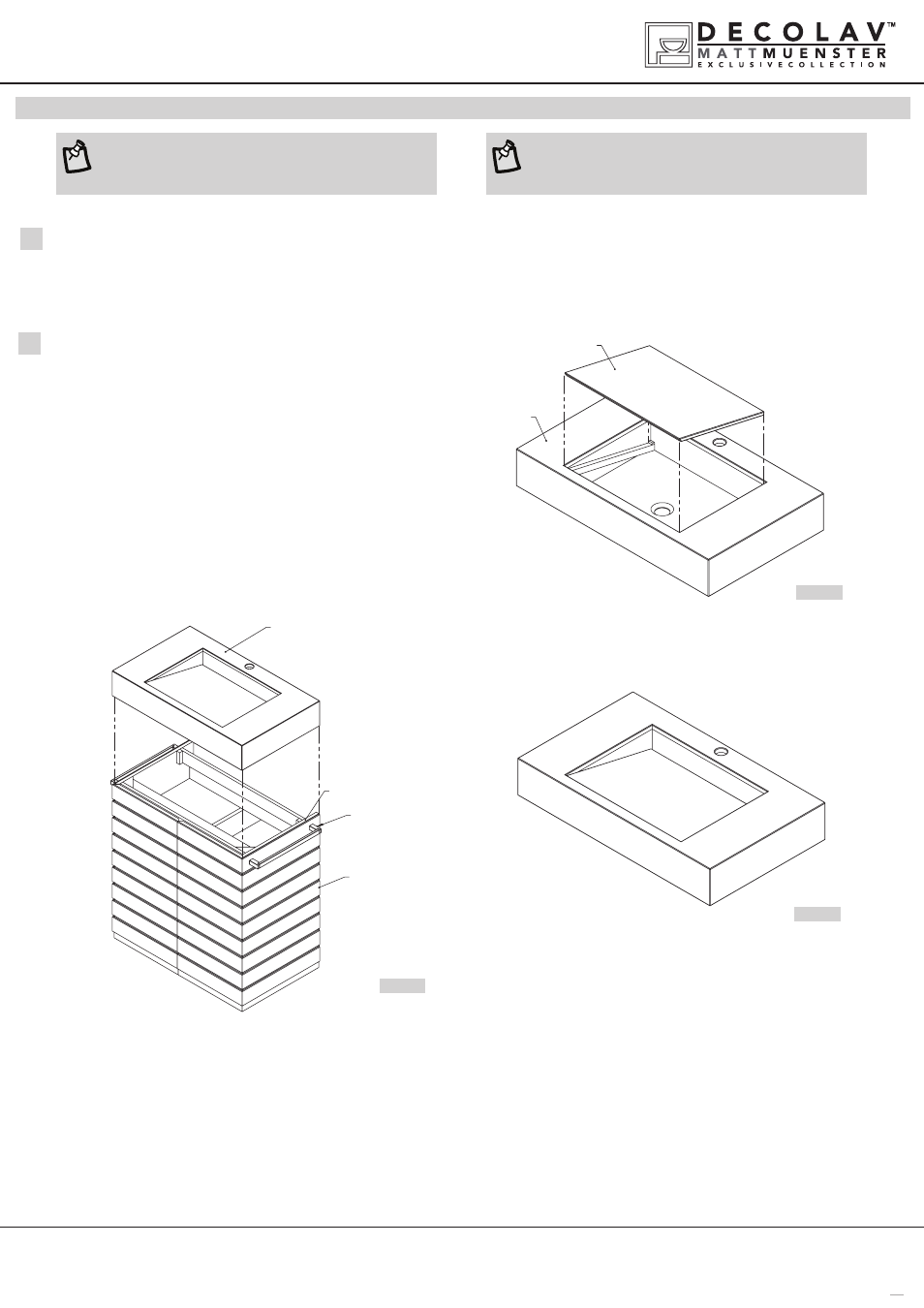

• Place the removable ramp in place on side rails as per figure 1 & 2
installing quartz countertoP with integrated lavatory 1
Removable
ramp
Lavatory
Removable
ramp
Lavatory
ethanPointe lavatory
item #1750-QtZ
figure 1
figure 2
• apply silicone where the counter top contacts the vanity. see figure 3
• carefully place the Quartz countertop with integrated lavatory on top of
the vanity cabinet. adjustments may be necessary to align correctly
• clean off excess silicone
• install faucet, drain, and waste system per manufacturer’s installation
instructions. these items are not included
installing quartz countertoP with
integrated lavatory 2
Vanity body
Towel bar
Towel bar screw
Apply Silicone Here
Towel bar
Vanity body
Lavatory
(Not Provided
Purchased Separately)
Vanity body
Towel bar screw
figure 3
note: use Decolav drain item #9290-cP/sn/Pn/DB,
9296-cP/sn/Pn/DB or #9298-cP/sn/Pn/DB.
Decolav cannot guarantee leakage wih other manufacturer drains. note: use Decolav decorative bottle trap item #9102-cP/sn/
Pn/DB to complete the look.
