Hardware Replacement
8.4 Replacing the Display/Display
Cable
The following is needed:
• A new display/display cable, see Available Spare Parts for iX Panel K100
• A torx T10 screwdriver
Note:
Make sure to use adequate ESD protection.
Follow the steps below to replace the display/display cable:
1. Power off the operator panel.
2. Follow the instructions under
Replacing the Rear Cover to remove the rear
cover.

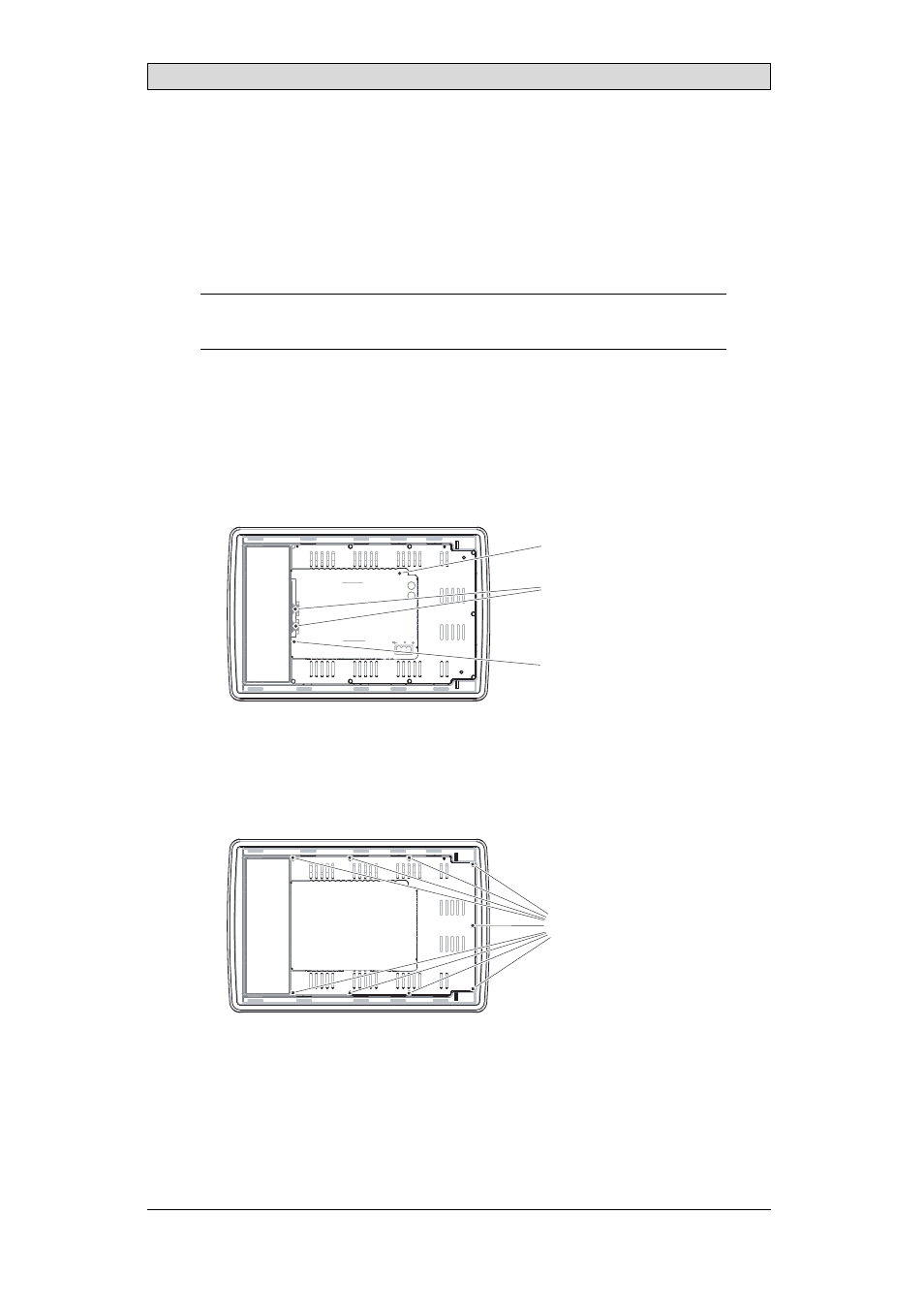

3. Disconnect the two flex cables the flex cable and the LED cable from the
power card and remove the two plastic nuts that hold the power card in place.
flex cables
plastic nut
plastic nut
4. Lift the power card and gently remove the backlight cables and the display
cable from the rear side of the power card.
5. Remove the mounting plate (9 torx screws). Gently lift the mounting plate
with the display and power card.
9 x torx screws
