Installation
2 Installation

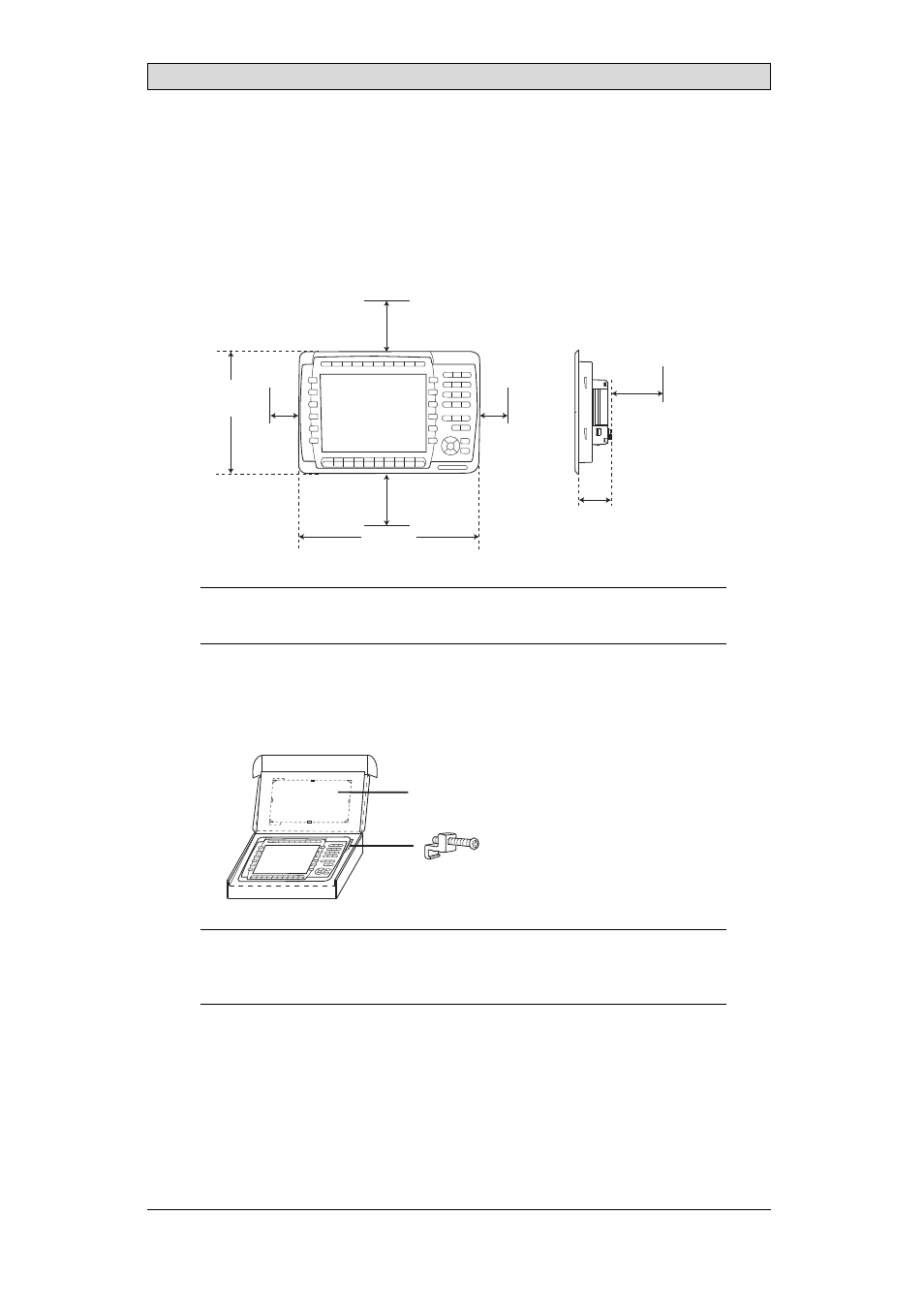

2.1 Space Requirements
• Installation plate thickness: 1.5 - 9.0 mm (0.06 - 0.35 inch)
• Space requirements when installing the operator panel:
252 mm
58 mm
100 mm
(4.0 inch)
50 mm
(2.0 inch)
50 mm
(2.0 inch)
100 mm
(4.0 inch)
(9.92 inch)
382 mm
100 mm
(4.0 inch)
(15.04 inch)
(2.28 inch)
Caution:
The openings on the enclosure are for air convection. Do not cover these openings.
2.2 Installation Process
1. Unpack and check the delivery. If damage is found, notify the supplier.
x 14
Panel cut out 343 x 208 mm
(13.5 x 8.18 inch)
Note:
Place the operator panel on a stable surface during installation.
Dropping it or letting it fall may cause damage.
Beijer Electronics, MAEN995 6
