Installation
Beijer Electronics, MAEN844D 7
2 Installation

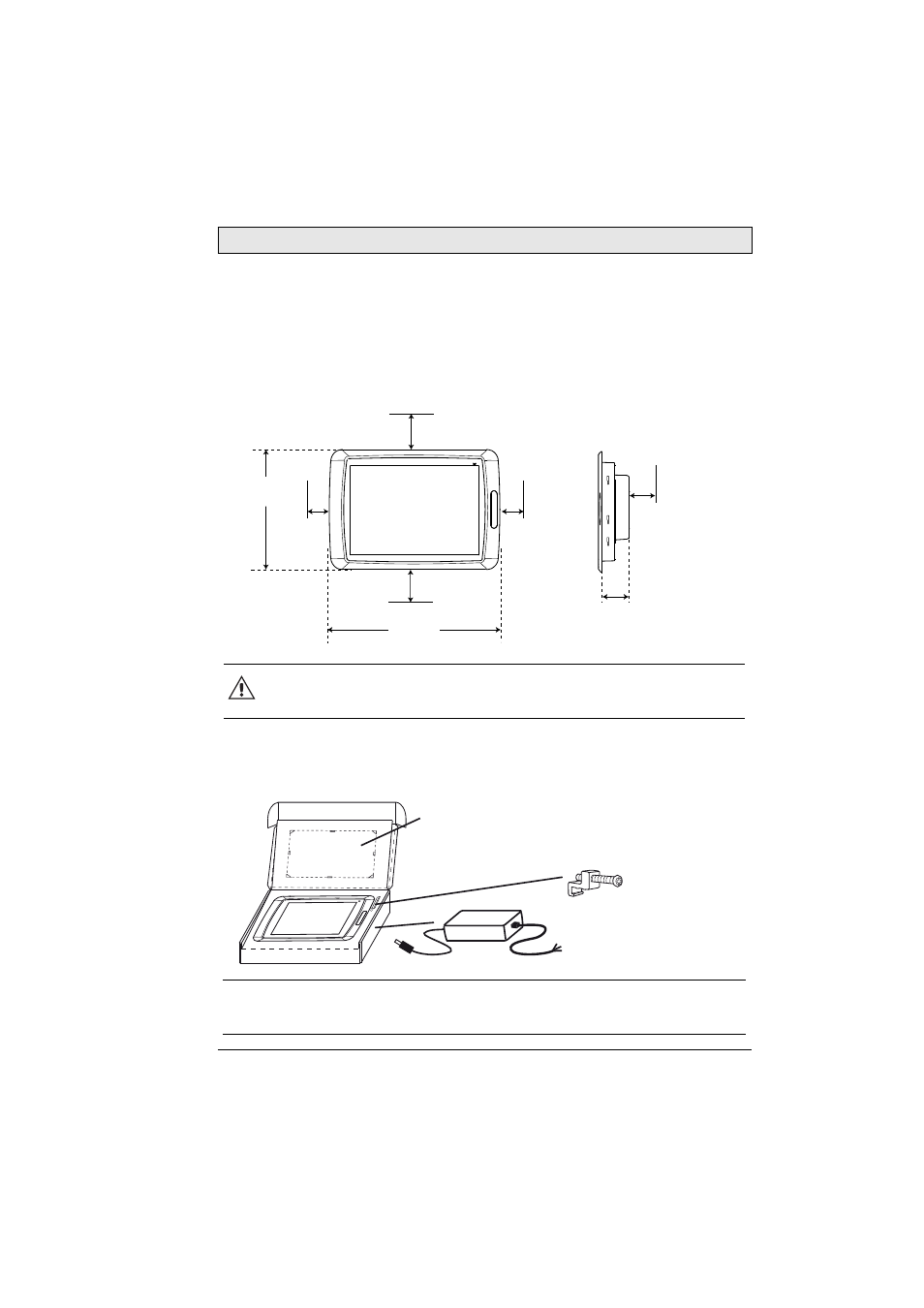

2.1 Space Requirements
Installation plate thickness: 1.5 - 9.0 mm (0.06 - 0.35 inch)
Space requirements when installing DT150:
2.2 Installation Process
1. Unpack and check the delivery. If anything is damaged, notify the supplier .
Caution:
The openings on the enclosure are for air convection.
Do not cover these openings.
Note:
Place the monitor on a stable surface during installation. Dropping it or letting it
fall may cause damage.
25 mm
45 mm
50 mm
304 mm
398 mm
50 mm
(2.0 inch)
50 mm
(2.0 inch)
(1.77 inch)
(1.0 inch)
25 mm
(1.0 inch)
(11.97 inch)
(15.67 inch)
(1.97 inch)
