Hardware Replacement
6.3 Replacing the Display/Display
Cable
The following is needed:
• A new display including plastic frame and display cable, see
Available Spare Parts for EPC TA70 AM
• A torx T10 screwdriver
Note:
Make sure to use adequate ESD protection.
Follow the steps below to replace the display/display cable:
1. Power off the Panel PC.
2. Follow the instructions under
Replacing the Rear Cover to remove the rear
cover.

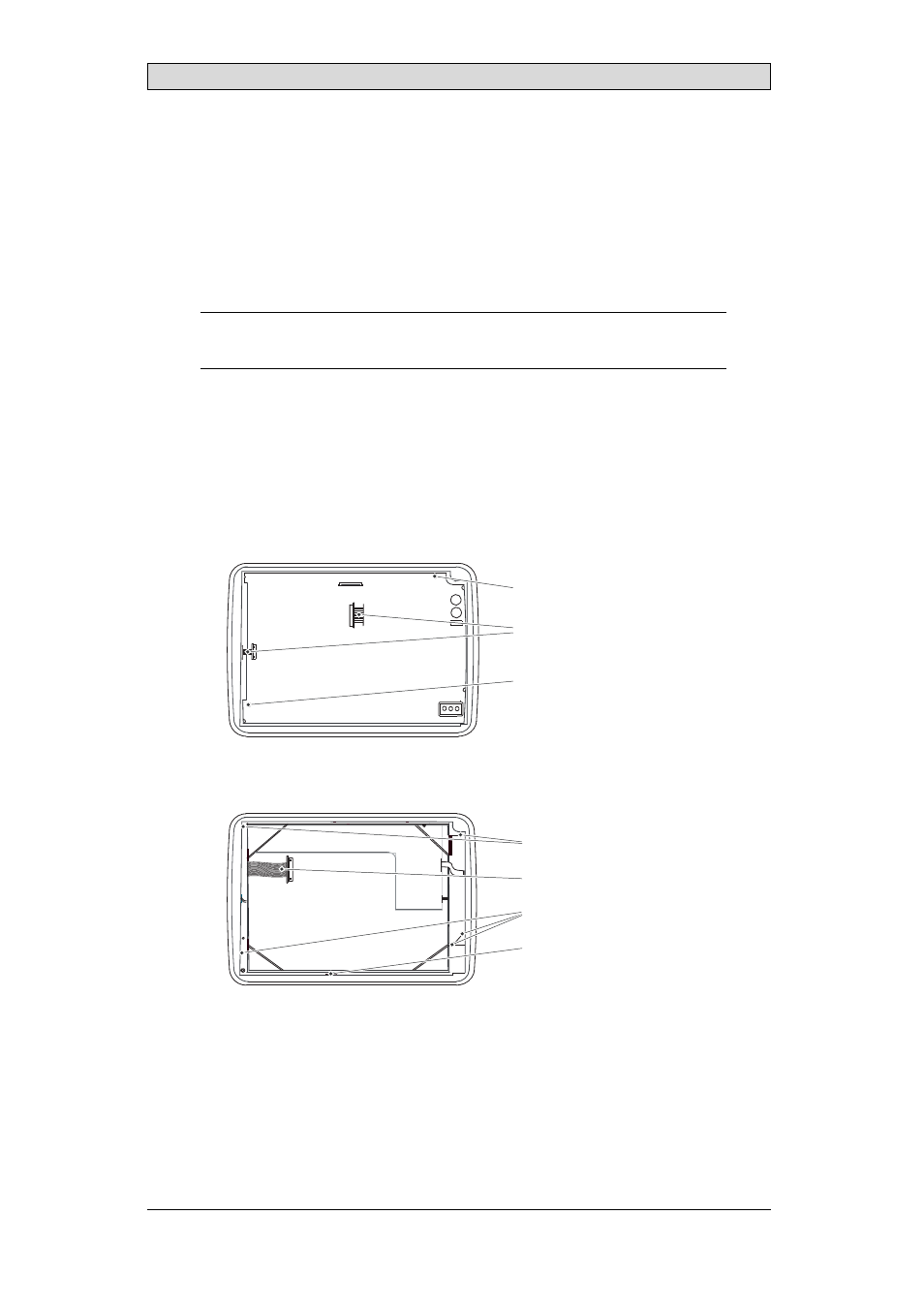

3. Disconnect the two flex cables from the power card, according to the
illustration below, and remove the two plastic nuts that hold the power card
in place.
plastic nut
flex cables
plastic nut
4. Lift the power card and gently remove the backlight cable from the rear side.
backlight cable
snap-in closure for plastic frame
guide pins
guide pins
5. Gently loosen the complete plastic frame and display from the front plate.
Scrap the display and frame.
6. Mount the new display/display cable and frame and re-assemble the complete
Panel PC. Make sure the guide pins on the frame are properly fastened in the
holes in the front plate.
Beijer Electronics, MAEN042 19
