Hardware Replacement

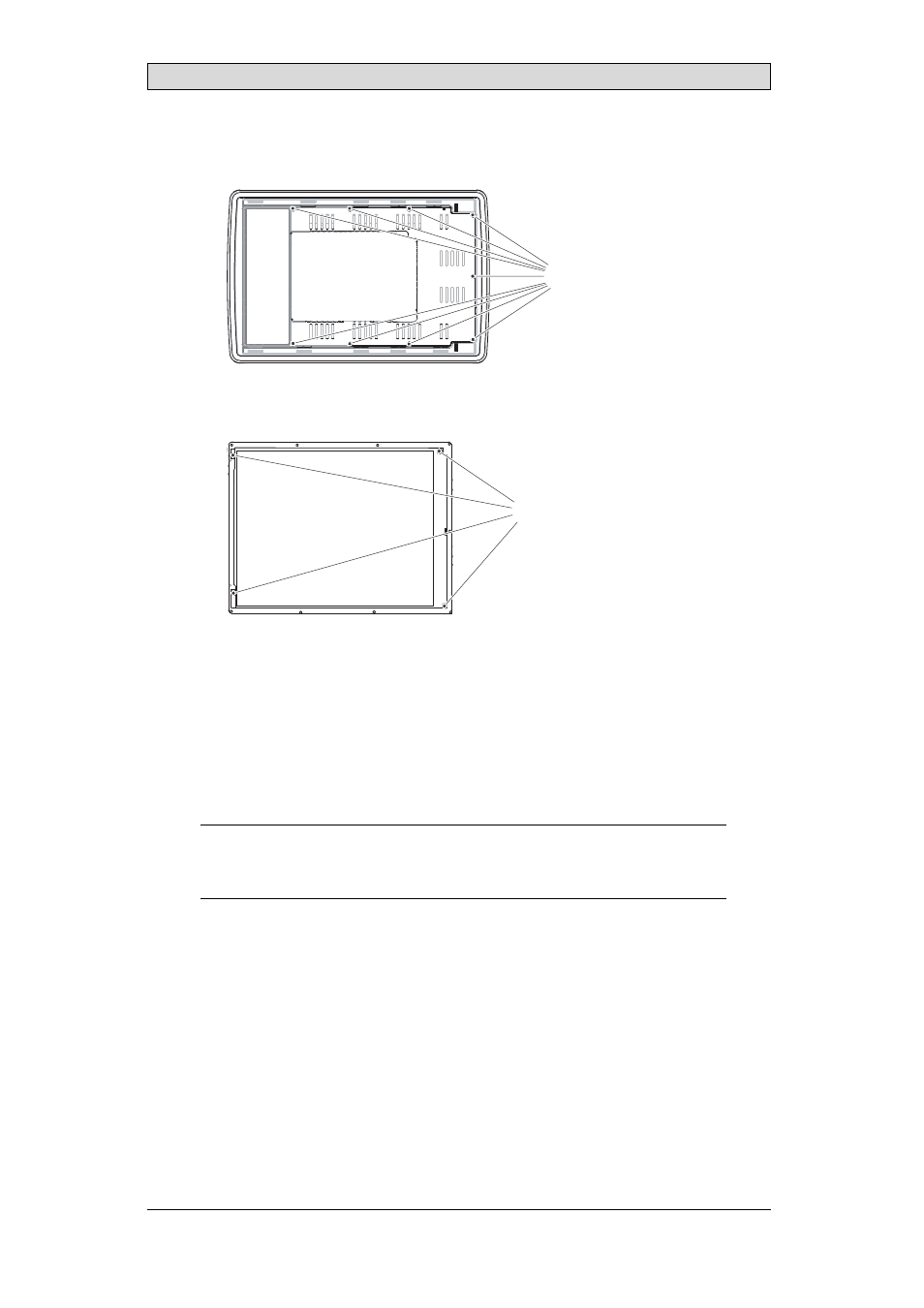

5. Remove the mounting plate (9 torx screws). Gently lift the mounting plate
with the display and power card.
9 x torx screws
6. Flip the mounting plate and unscrew the 4 torx screws.
4 x torx screws
7. Re-assemble the panel in reverse order.
6.3.1
Calibrating the Touch Screen
Follow the steps below to calibrate the touch screen:
A touch calibration tool is pre-installed in the EPC TA100 AM. It can be started
from the desktop icon or from the Start menu.
Note:
Touch calibration has to be commenced within 10 seconds from when the touch screen
tool was started.
Beijer Electronics, MAEN043
20
