Page 10: 3hardware replacement
Hardware Replacement
3
Hardware Replacement
This section contains instructions on how to replace operator panel hardware.
Only components included in the latest bill of material and spare parts list are
allowed.
3.1 Replacing the Fan and Filter
The following is needed:
•
A new fan
•
A Torx TX10 and a TX20 screwdriver
Note:
Make sure to use adequate ESD protection.
Follow the steps below to replace the fan and fan filter:
1. Power off the operator panel.

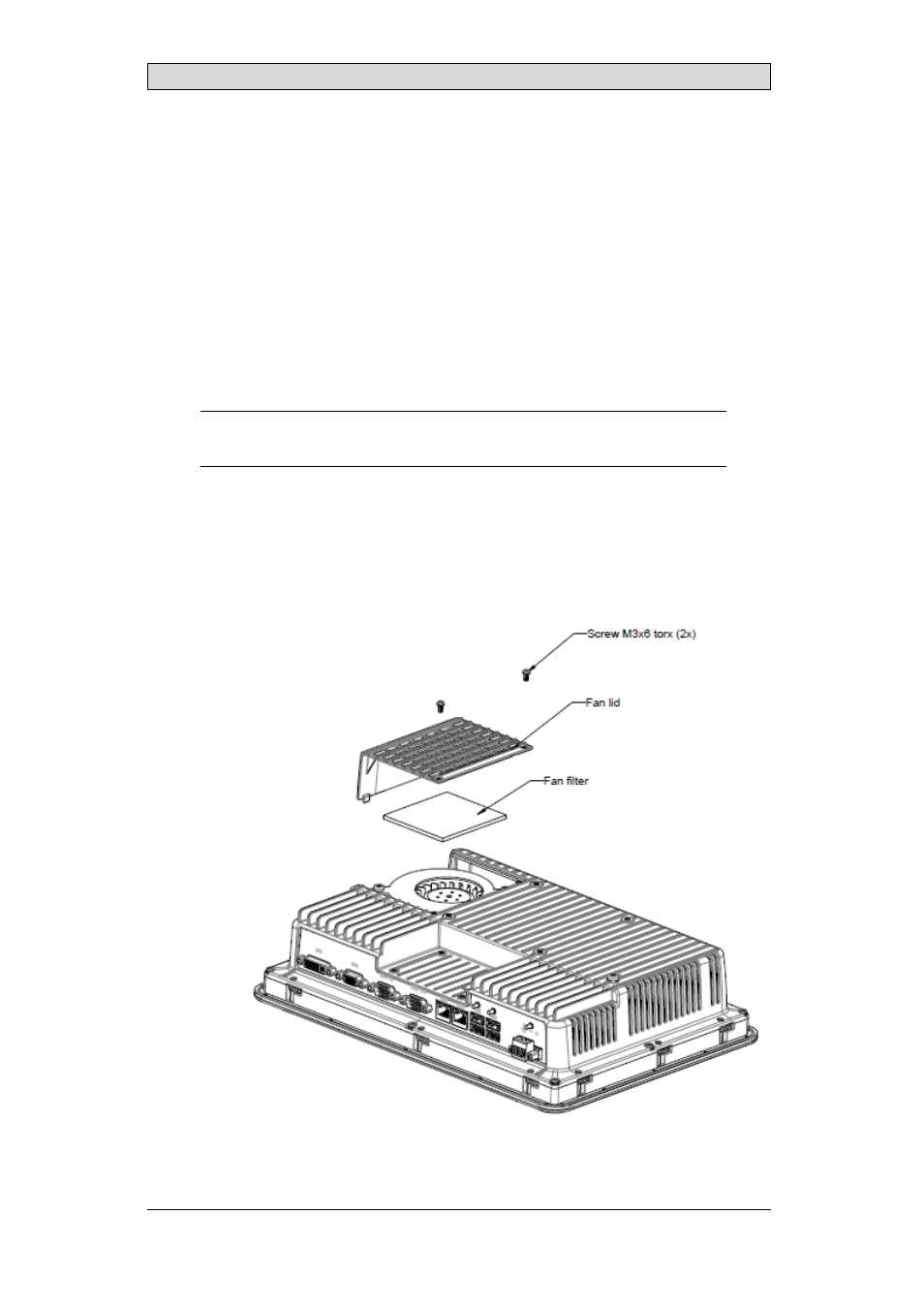

2. Remove the fan lid by removing the two M3x6 Torx screws.
3. Remove the fan filter.
Beijer Electronics, MAEN082D
10
