C ORDLESS P HONE FOR MX-ONE™
126 1424-EN/LZT103 088 Uen F5 2012-03-14
To attach or remove the clip, spread the clip slightly. The ends of the clip
fit into the holes on the side of your phone.

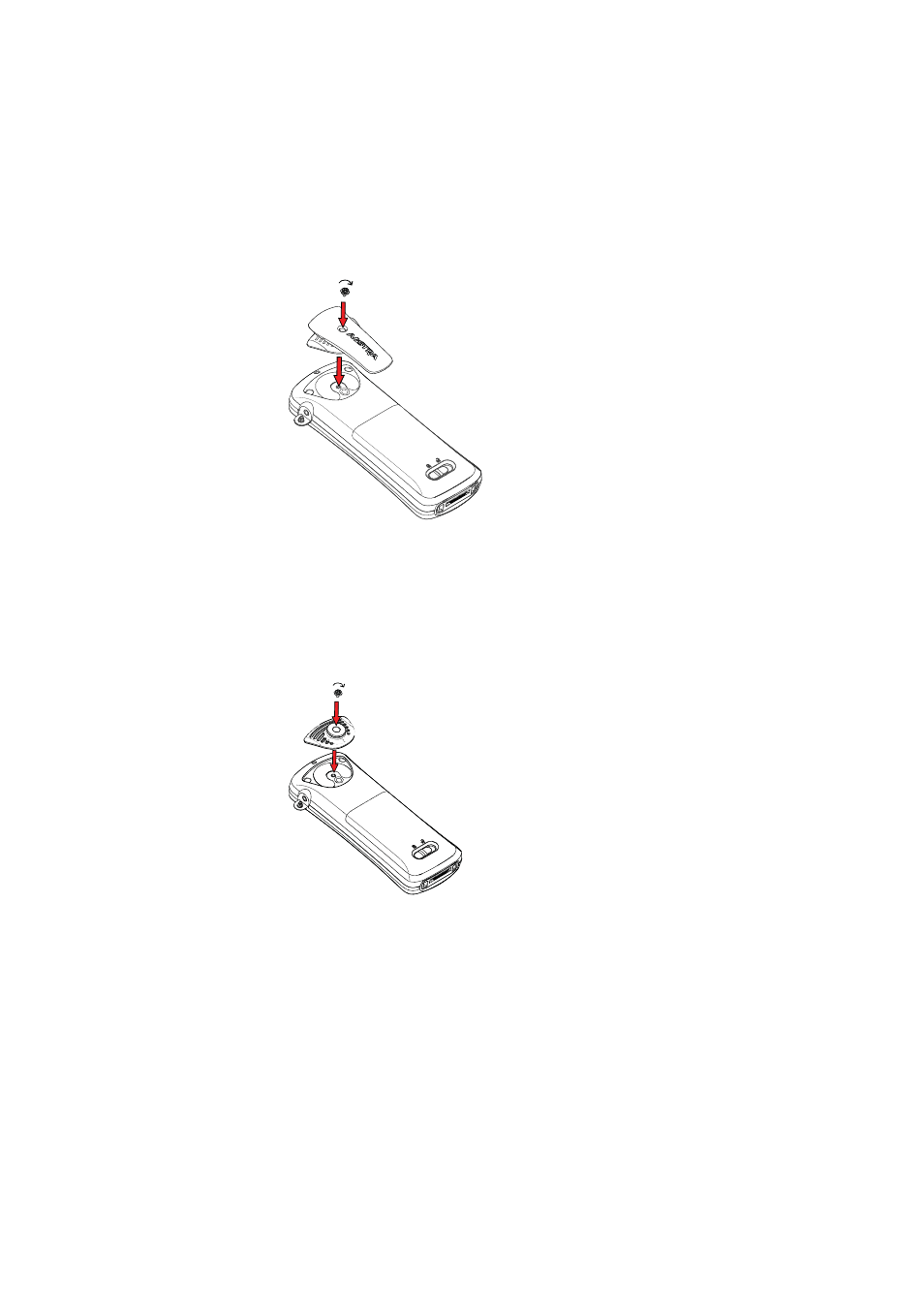

22.2.2.1 Attaching a Standard Clip (Hinge Type)
Attach the standard clip as described in figure 16 on page 126.
Figure 16:Screw the clip into position
22.2.2.2 Attaching a Security Clip (Swivel Type)
Attach the security (swivel) clip as described in figure 17 on page 126.
Figure 17:Screw the clip into position
22.2.3 Leather Casing
The leather casing is especially designed for the telephone. The casing
comes with a swivel type belt clip and the telephone is fully operational
while placed in the casing.
