Vizor Shelter Installation Instructions

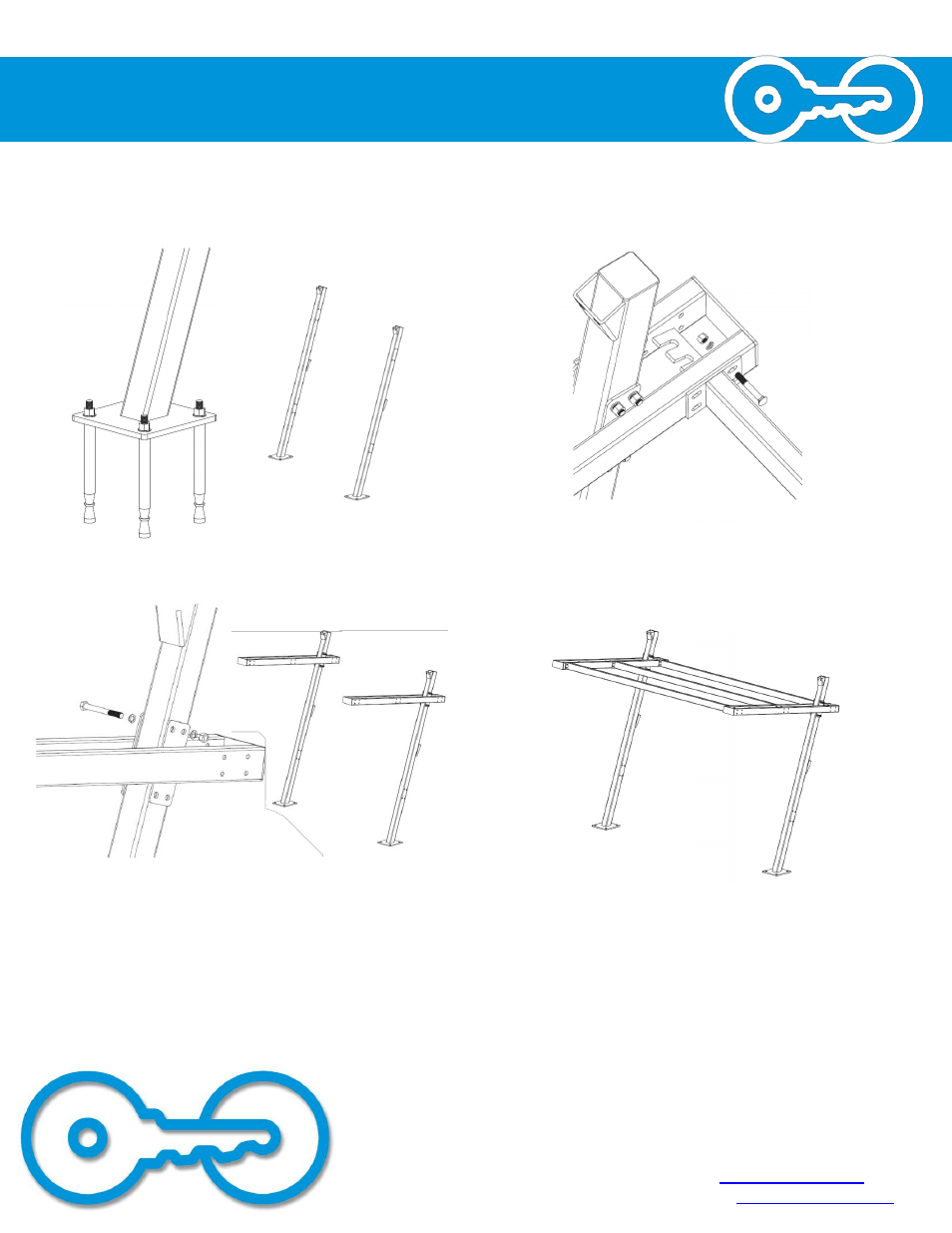

Installation Steps:
1. Place Uprights based on footing diagram and drill (4) 5 /
8
”
diameter pilot holes in concrete 14” deep for each Upright.
Remove Upright and use pilot holes to drill 1.25” diameter
holes 14” deep. Drive in Simpson Torq-Cut Anchor, place
Upright and install washers and nuts finger-tight.
2. Lift Truss over the Upright and secure with (4) 5 /
8
” x 6”
bolts, (8) 5 /
8
” lock washers, and (4) 5 /
8
” nuts.
3. Place the first Truss and secure with (4)
½” x 3.5” carriage bolts, (4) ½” lock
washers, and (4) ½” nuts on both sides.
4. Continue securing the remaining Purlins.
Leave nuts finger tight if a Campus Rack will
be added. Tighten if no Campus Rack will be
added.
