Vizor Shelter
Product
Vizor™ Shelter
Capacity

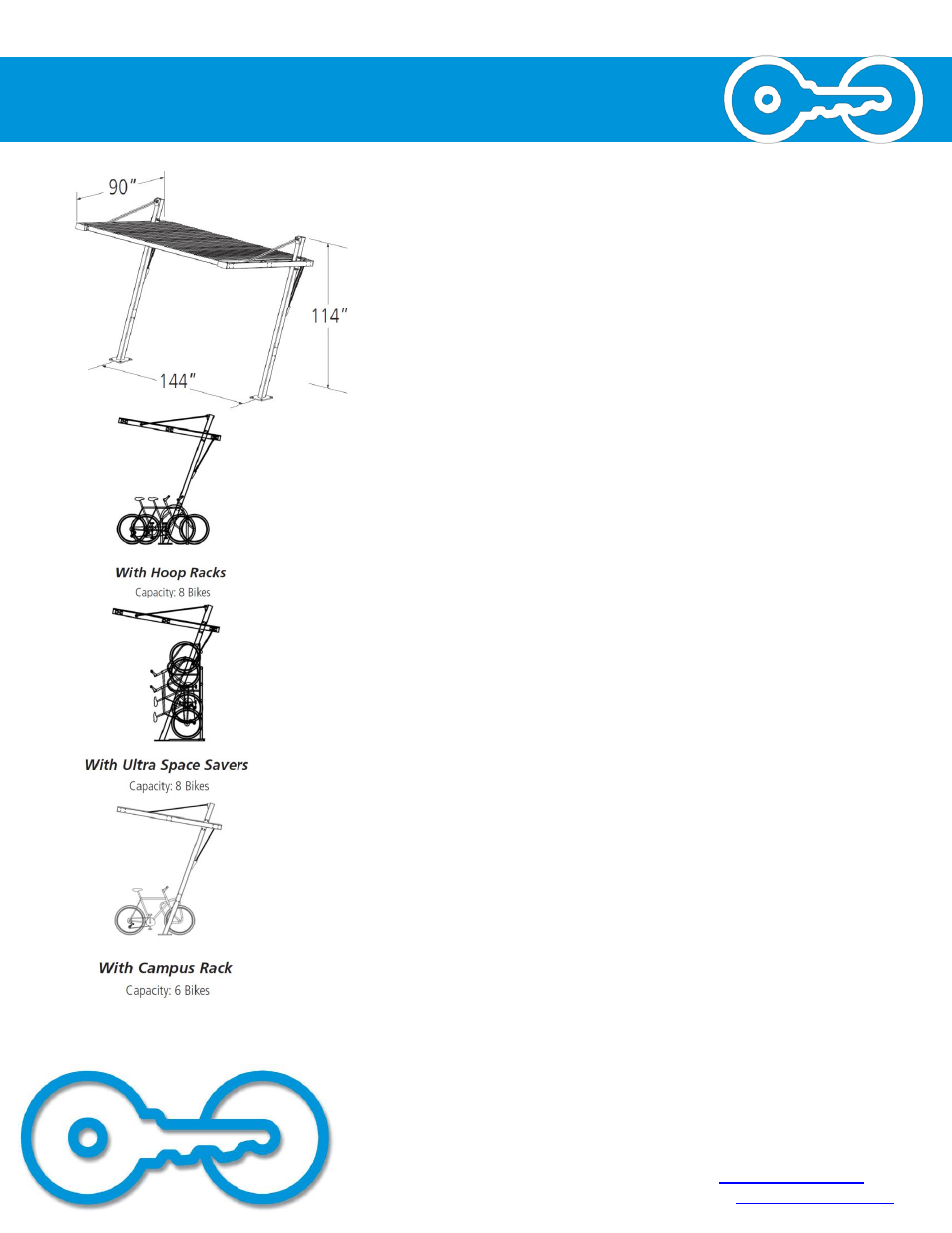

See diagrams below and to left
Materials
Uprights: 4”x5/16” square tube
Purlins: 4”x2”x3/16” rectangular tube
Feet: 5/8” plate
Rafter: 4”x2”x3/16” rectangular tube
Roof Panels: Type S deck, 26g galvanized steel
Finishes
An after fabrication hot dipped galvanized finish is our standard
option.
250 TGIC powder coat colors, thermoplastic coating, PVC dip,
and stainless steel finishes are also available as alternate
options.
Our powder coat finish assures a high level of adhesion
and durability by following these steps:
1. Sandblast
2. Epoxy primer electrostatically applied
3. Final thick TGIC polyester powder coat
Installation
Methods
Surface Mount. It is the responsibility of the installer to
ensure that all base materials into which the shelter will
be installed can support the rack and will not be damaged
by any required installation procedures. See structural
drawings for details..
Space Use
& Setbacks
Overall dimensions:
L 90”, W 144”, H 114”
Load Data
Dead load = self weight of structure
Live load = 40 psf
Wind load = 90 mph exposure B
Seismic load = Moderate
Footing: see page 4
Anchor bolt = .75” diameter x 14.625” Simpson Torq-Cut
anchor
*The Vizor Shelter can be used in a modular fashion (shared uprights)
however, when used in this manner, please call for layout, as the
rack spacing and bike capacity can change!
