Tool Kit
Product
Tool Kit
Materials

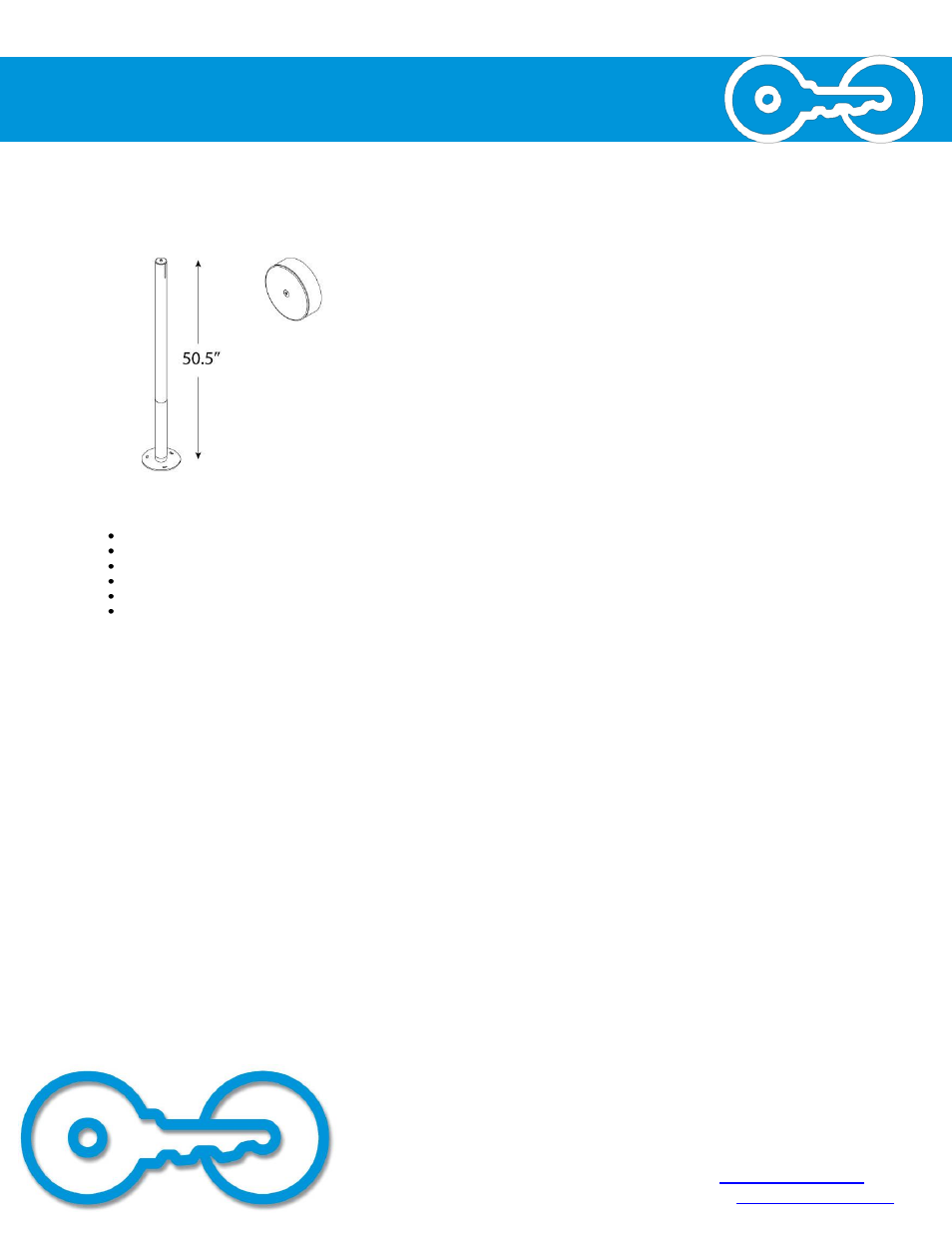

Surface-Mounted Tool Kit
A. Main body: 2” sch. 40 pipe
B. Top cap: 3/16” plate
C. Foot: 8” dia. x .25” plate
D. Tool tethers: 5/32” stainless steel cable
E.
Wall-Mounted Tool Kit
A. Main body: 6.308 x .154” tube, 3/16” plate
B. Top cap: 3/16” plate
C. Tool tethers: 5/32” stainless steel cable
D.
Finishes
An after fabrication hot dipped galvanized finish is our standard
option.
250 TGIC powder coat colors, thermoplastic coating, PVC dip,
and stainless steel finishes are also available as alternate
options.
Our powder coat finish assures a high level of adhesion
and durability by following these steps:
1. Sandblast
2. Epoxy primer electrostatically applied
3. Final thick TGIC polyester powder coat
Stainless Steel: 304 grade stainless steel material finished
in either a high luster electropolished shine or a satin #4
finish. Both finish options include the Spectra Shield finish
for maximum corrosion protection.
Installation
Methods
Wall Mount has a 6” dia. x 3/16” base plate that is
installed onto a wall with 2 anchors.
Foot Mount has 8”x.25” circular foot with three anchors.
Space Use
& Setbacks
Surface Mount:
Wall Setback: The Tool Kit should be at least 12” from a wall.
Both sides of the Tool Kit should be 36” from either wall.
Street Setback: The Tool Kit should be at least 60” from
the street.
Wall Mount:
Wall Setback: The Tool Kit should be mounted on a wall
at least 54” from the ground to the center of the Tool Kit.
The Tool Kit should be 36” from an adjacent wall.
*No part of the Tool Kit should protrude onto a walkway,
bike lane, or common area.
Tools Included:
Philips and flat head screwdrivers
2.5, 3, 4, 5, 6, 8mm Allen wrenches
Headset wrench
Pedal wrench
8, 9, 10, 11mm box wrenches
Tire levers
