Air Kit 2
Product
Air Kit 2
Materials
Main Body: 1.5” schedule 40 pipe
Manual air pump: Dero made
Foot: ¼” steel
Finishes
An after fabrication hot dipped galvanized finish is our standard
option.
250 TGIC powder coat colors, thermoplastic coating, PVC dip,
and stainless steel finishes are also available as alternate
options.
Our powder coat finish assures a high level of adhesion
and durability by following these steps:
1. Sandblast
2. Epoxy primer electrostatically applied
3. Final thick TGIC polyester powder coat
Installation
Methods

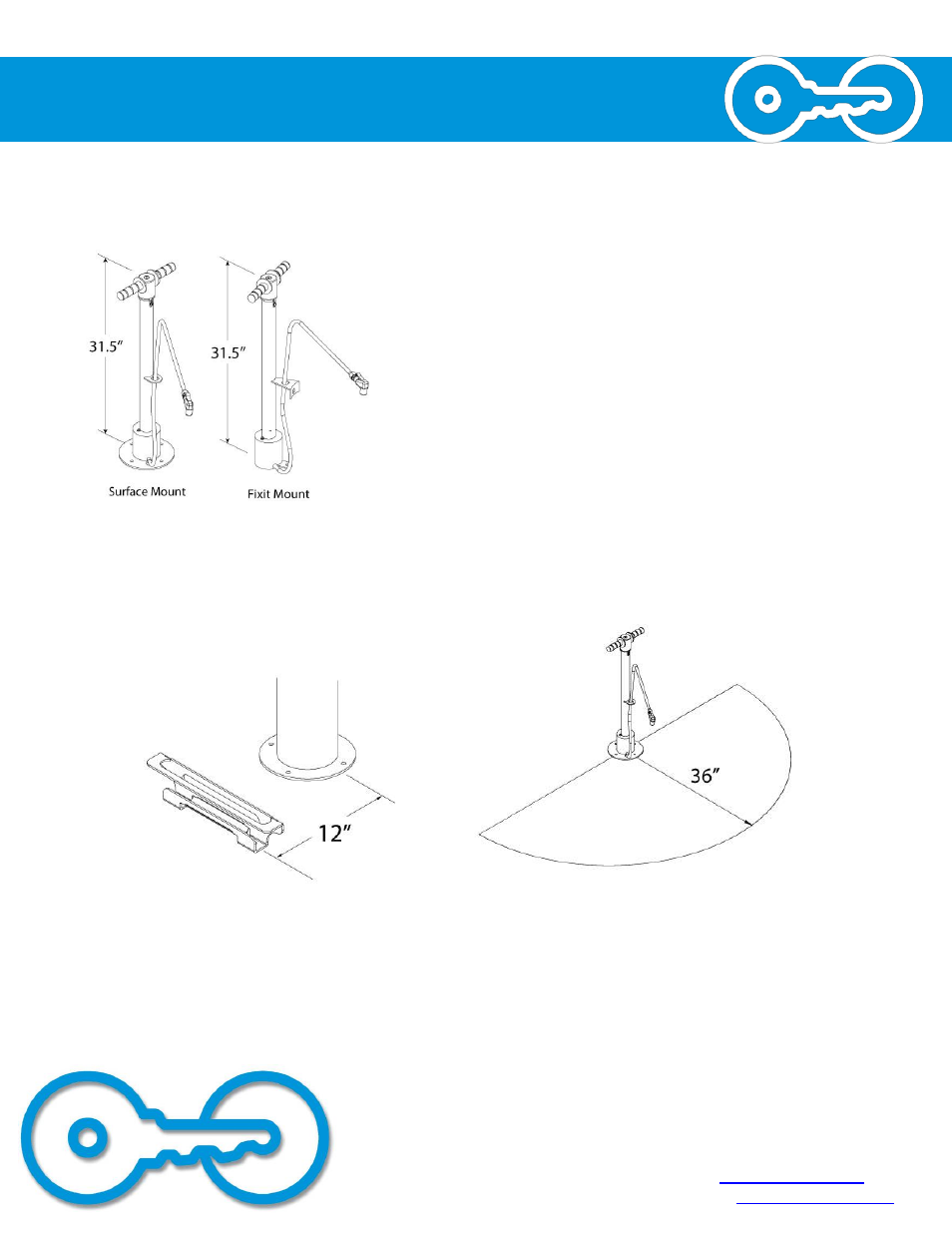

Surface Mount has 8” diameter x .25” flange with four
anchoring holes for mounting with standard wedge anchors.
Space Use
& Setbacks
The Air Kit 2 should be installed at least 36” from any
obstruction.
An optional wheel catch is also available
to hold bikes with no kick stands
