Kolo Shelter
Installation Instructions

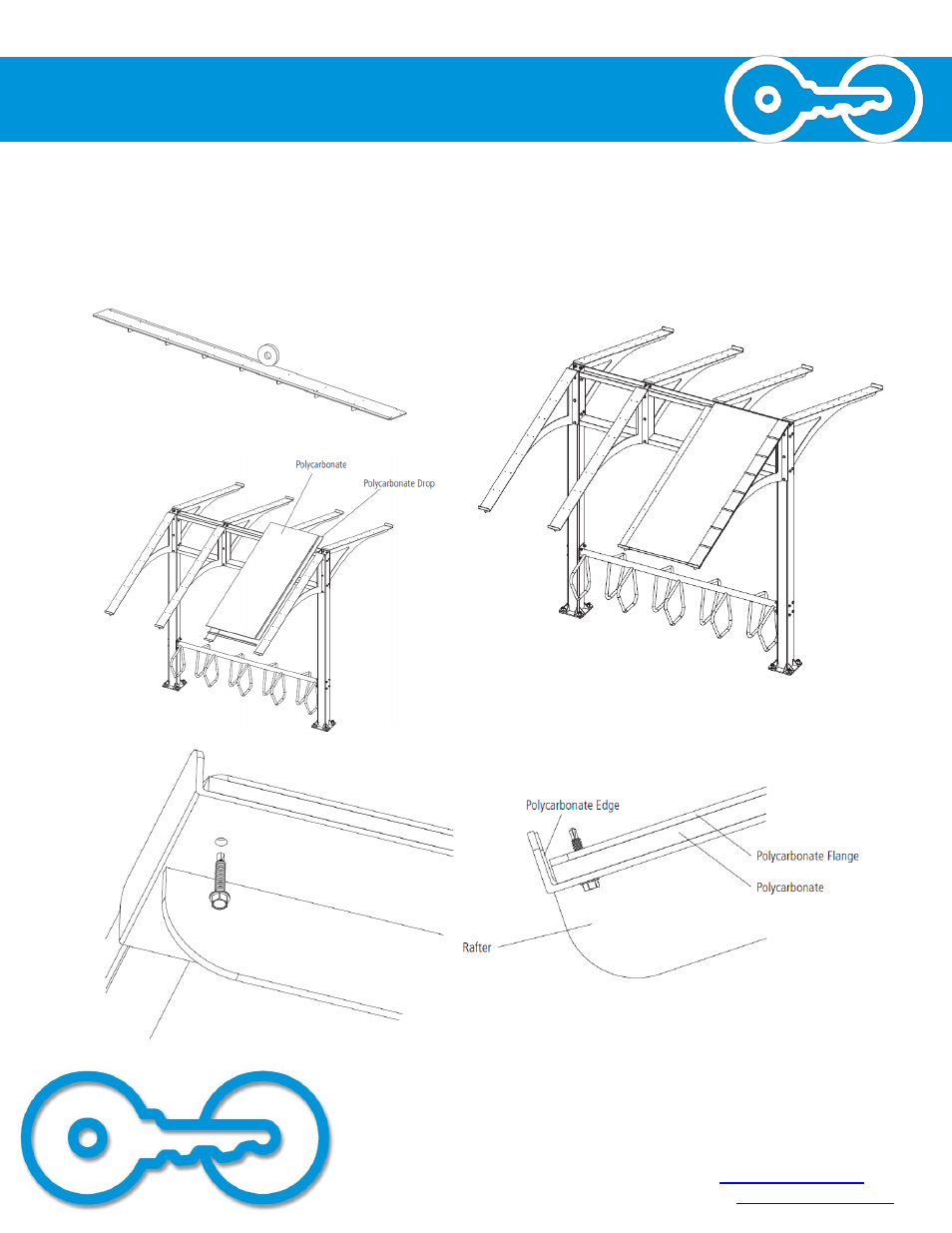

9. Apply foam rubber tape to the Polycarbonate Flange without covering .20” holes. Place (1) Polycarbonate Drop, (1)
Polycarbonate, (1) Polycarbonate Edge in place. Make sure the Polycarbonate Drop is flush with the outside edge of the
Rafter and that the Polycarbonate is centered between both Rafters. Use care to not scratch the Polycarbonate. Using the 16
holes in the Polycarbonate Flange and 16 holes in the Rafter, align the Polycarbonate Flange over the Rafter so that the
Polycarbonate and Polycarbonate Drop are sandwiched between them. Starting at the holes furthest from the shelter center,
secure the Polycarbonate Flange with (16) ¼x1.5” self-drilling screws. It’s recommended that the assembly be clamped
together while fastening the first two screws. The self-drilling screws will pass through the Rafter, drill through the
Polycarbonate, and tap through the Polycarbonate flange.
