MATERIAL
Length
Low
High
48"
27
117
96"
50
94
Temperature (°
F)
FRP

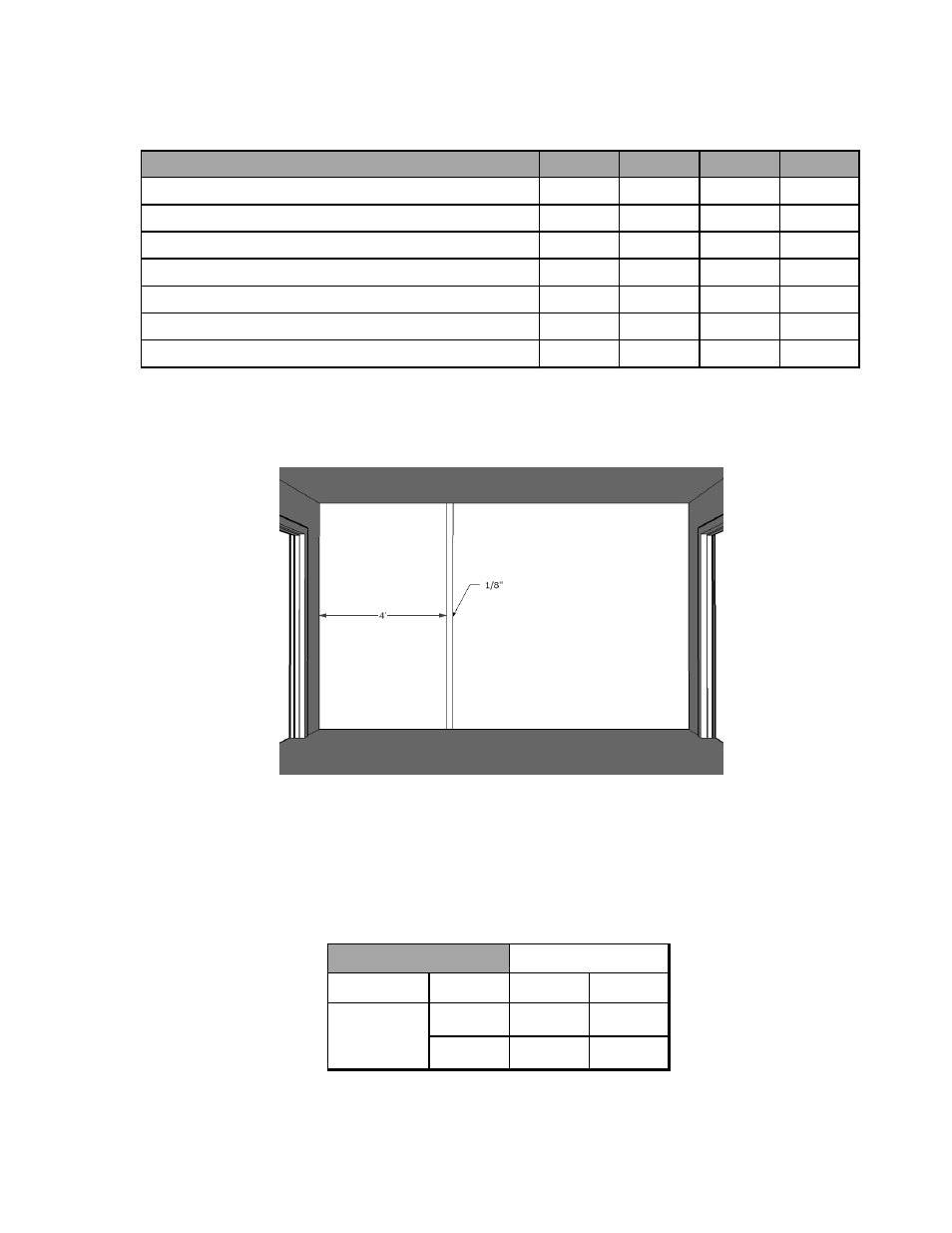

EXPANSION JOINT CHART
EXPANSION JOINT LAYOUT
INSTALLATION
Note: For best results, LuxCore panels should be used in conditions which result in
temperatures that are less than or exceed the allowable temperature ranges in the
chart below.
ALLOWABLE TEMPERATURE RANGES CHART
PANEL SIZE
4 X 8
4 X 9
4 X 10
4 X 12
Gap at ceiling
1/4"
1/4"
3/8"
3/8"
Gap at floor
1/4"
1/4"
3/8"
3/8"
Gap between panel and center of 1 piece molding
1/8"
1/8"
3/16"
3/16"
Gap between panel and center of 2 piece molding
1/4"
1/4"
3/8"
3/8"
Gap between panel without molding
1/4"
1/4"
3/8"
3/8"
Gap around rivets
1/8"
1/8"
3/16"
3/16"
Gap between panels and wall fixtures
1/8"
1/8"
1/4"
1/4"
