Compact/FlatPack SeeSnake ®
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog
No. No. Description
1 97667 Kickstand w/Handle Asm.
2 97657 Monitor Lid (B&W)
97662 Monitor Lid (COLOR)
3 97672 Monitor Window Kit
4 97637 Monitor (B&W) EIA
97642 Monitor (B&W) CCIR
97647 Monitor (COLOR) NTSC
97652 Monitor (COLOR) PAL
5 97677 Monitor Case (B&W)
97682 Monitor Case (COLOR)
6 97707 Compact Power Board Asm
7 97712 Connector Board (Small Board)
8 77307 Bulkhead Connector
9 97697 Dust Cover (Black)
10 97717 Ground Post
11 97692 Dust Cover (Orange)
12 97702 Power Switch Asm
Items Not Shown
97722 Ground Post Cable
83407 14.4V Battery
95722 AC Adapter (115V)
95727 AC Adapter (230V)
NOTE: All Monitors Include Labels
2
1
3
4
12
5
6
7
8
9
10
11

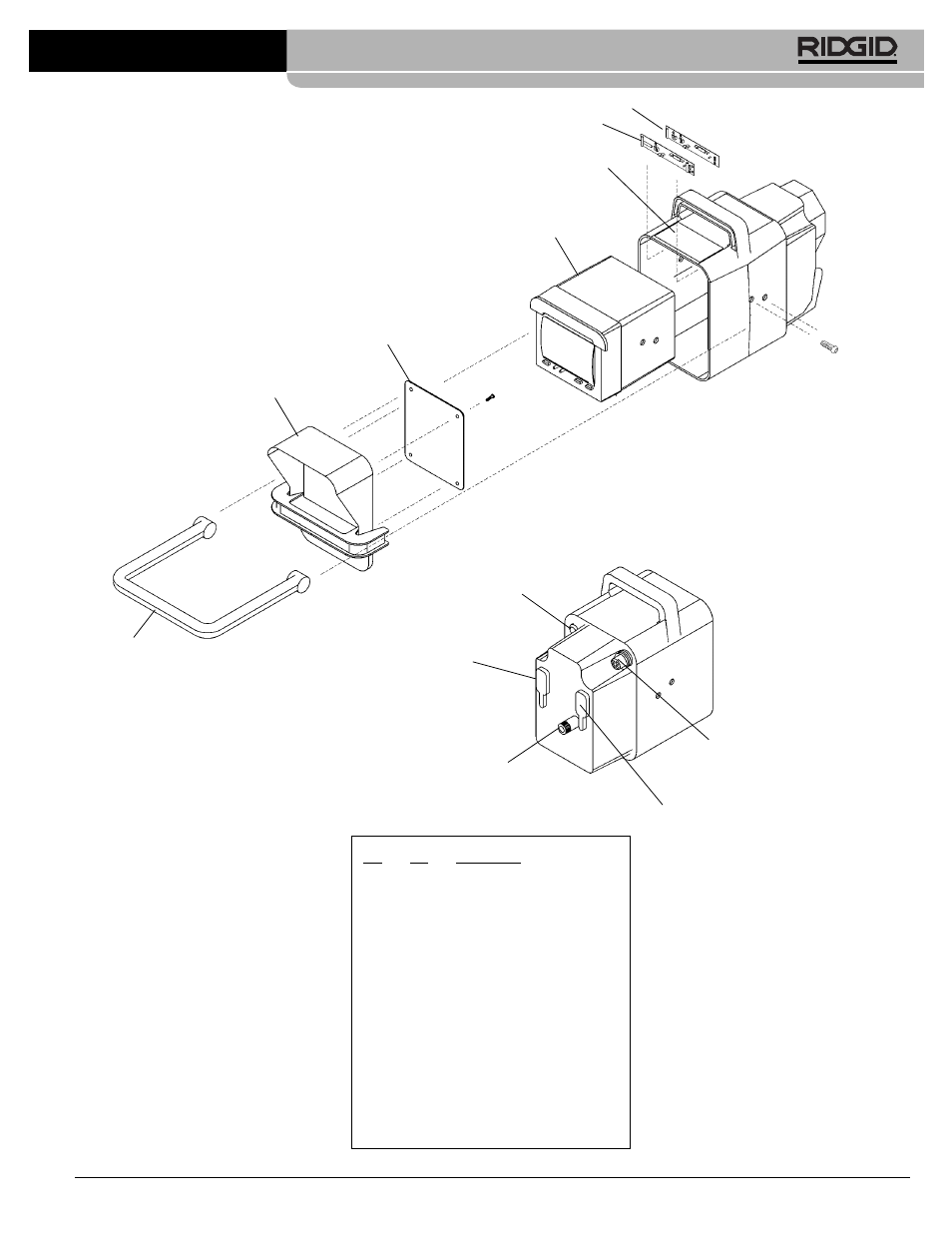

Back View
Battery Not Shown
