46
10.3 Control Panel
Parts # Description Parts # Description
33552 Contactor 29926 Jumper
27172 Transformer – 24 volt 208/230 33716 Alert Light - green
31659 Transformer – 24 volt 415/480 33715 Alert Light - red
36457 UPM – Programming Module 33536 Alert Light - blue
27923 Terminal Block 36206 Alert Light - orange
27924 Grounding Block 34823 USB Port
27925 Din Rail – mount for terminal blocks 34822 USB Cable
27928 Triac – solid state relay 34815 USB Interface
28923 Fuse Holder 34147 Programming Interface
27927 Heat Sink 33507 Overlay, L-R machines
32394 End Stop 33508 Overlay, R-L machines
33713 Wiring Harness – internal to control
panel 29948 Power Filter – Use with 50
Hz only (not shown)
36209 Membrane Encoder 34824 Cover for USB Port
(not shown)

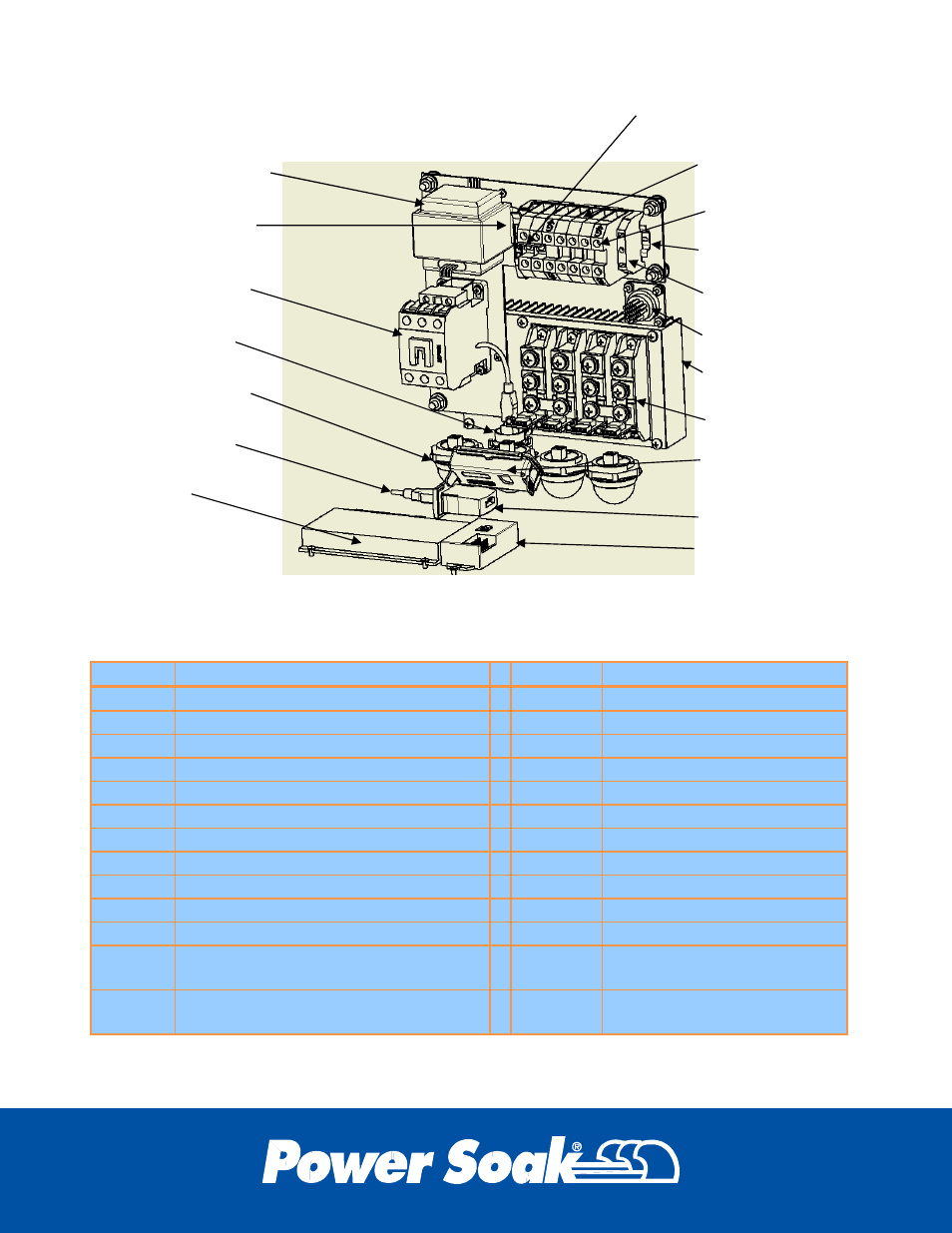

The control panel is shown without the sheet metal enclosure for clarity. Some variations of
the control assembly do not contain all of the components shown.
TRANSFORMER
FUSE HOLDER
CONTACTOR
ALERT LIGHT
USB CABLE
UPM
JUMPER
USB PORT
GROUND BLOCK
HEAT SINK
TRIAC
PROGRAMMING
INTERFACE
USB INTERFACE
TERMINAL BLOCK
DIN RAIL
WIRING HARNESS
END STOP
MEMBRANE
ENCODER
