ENGLISH
A05-17AM-D01 - A05-17BM-D03 - A05-19BM-D02_X02 10 - 40

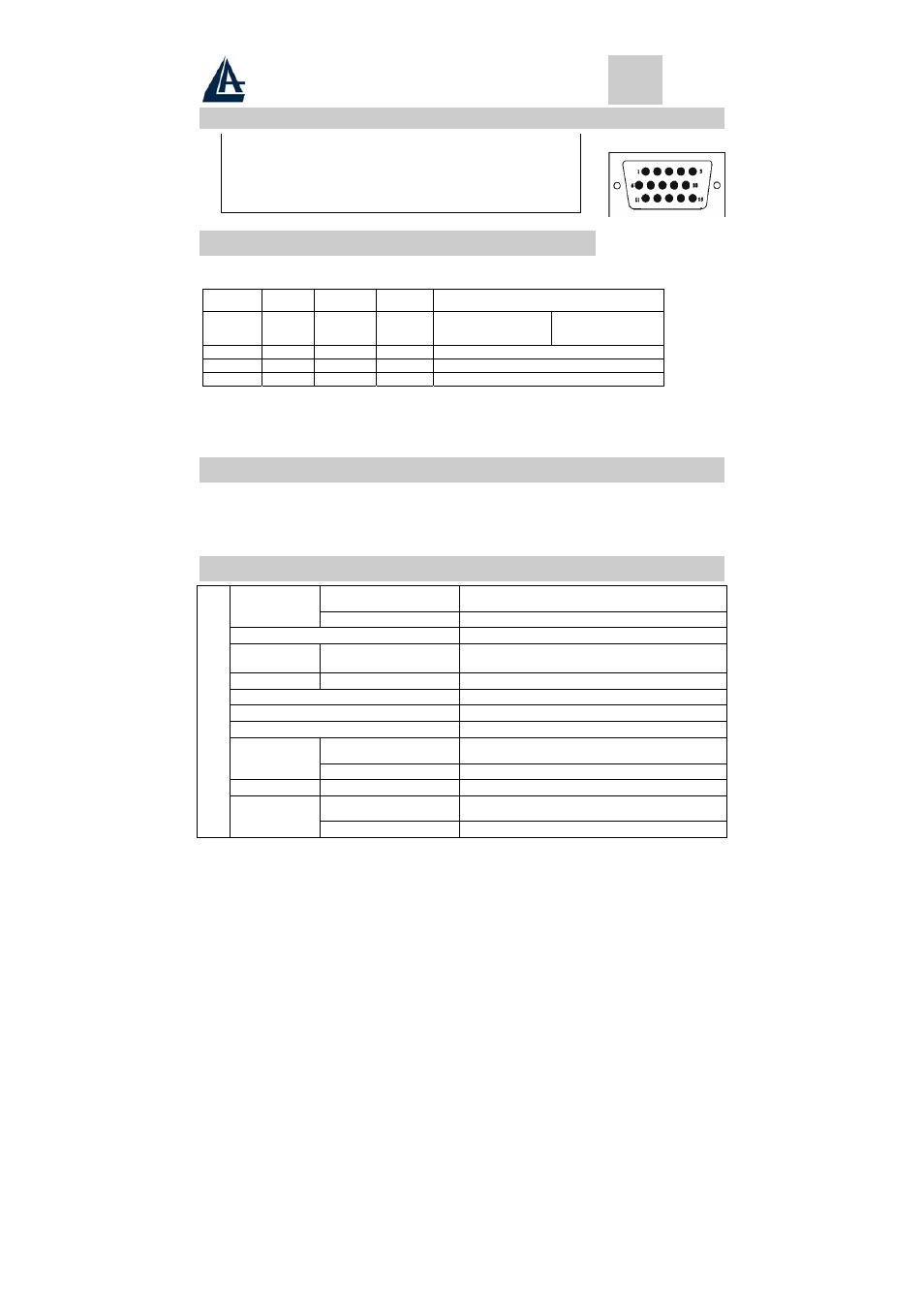

7.1 15-pin Mini D-type Male VGA Connector
1 Red Video 6 Red Ground 11 Ground
2 Green Video 7 Green Ground 12 Serial Data/I/O
3 Blue Video 8 Blue Ground 13 H. Sync
4 Ground 9 No Connection 14 V. Sync
5 No Connection 10 Sync Ground 15 Serial Clock Input
8 Power Saving Feature
When the power saving active them the power indicator LED will be from Green Light to Amber, And
power saving feature complies with these VESA power saving modes:
Mode H. Sync. V. Sync. LED Power Consumption
Normal On On Green
<40W A05-17AM-D01
A05-17BM.D03
<45W
A05-19BM-D02
Stand-by Off On Amber < 3W
Suspend On Off Amber < 3W
Off Off Off Amber < 3W
The monitor uses the H. Sync and V. Sync signals to determine the operation mode to enter.
The monitor power-saving feature automatically turns off H. Sync and V. Sync if there is no input from the
system for a certain period of time. To use this feature, you need a green PC that is compliant with the
VESA power saving feature or a software utility to detect system input such as keyboard or mouse.
9 Time Settings
Time settings are adjusted from the system unit by software. To fulfill the requirements in the NUTEK
specification 803299/94 the total time from indicated inactivity to Power Saving position A2 (VESA OFF)
must not be set more than 70 minutes. We recommend you switch off the monitor when you do not intend to
use it for awhile.
10 Specifications
A05-17AM-D01
A05-17BM.D03
17.0" (full 17.0" viewable diagonal area)
Size
A05-19BM-D02 19.0" (full 17.0" viewable diagonal area)
Type TFT (Thin Film Transistor), Active Matrix Panel
Pixel Pitch
A05-17AM-D01
A05-17BM.D03
0,264mm
A05-19BM-D02 0,294mm
Color 16.7M
Glass surface
Anti-Glare & Hard Coat 3H
Brightness 250 cd/m 2
A05-17AM-D01
A05-17BM.D03
500:1
Contrast
A05-19BM-D02 600:1
View Angle 170 H - 170 V
A05-17AM-D01
A05-17BM.D03
337.92x270.336 mm
LCD
Full screen
A05-19BM-D02 376.320X301.056 mm
