Napoleon Fireplaces Plazmafire 31 - WHVF31 - Manual (Page 13)

13
W415-1016 / B / 03.13.12
20” MIN.
13” MIN.
36” MAX.
7” MIN. 7” MIN.
36” MAX.
20” MIN.
13” MIN.

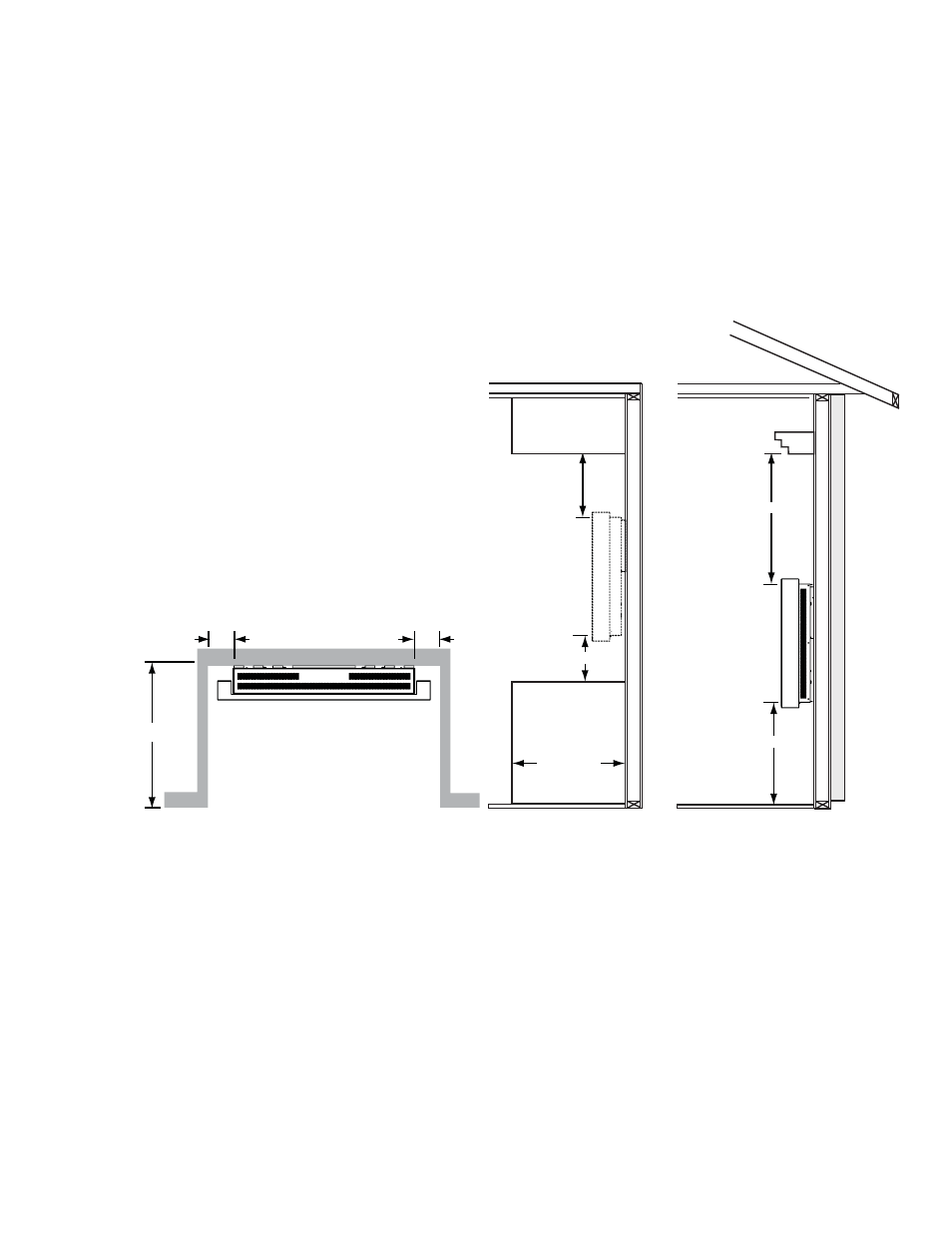

3.7 MINIMUM CLEARANCE TO COMBUSTIBLES
MINIMUM CLEARANCES TO COMBUSTIBLES:
- 20” to top
- 7” to sides
- 13” to bottom
- 0” to rear
TYPICAL
INSTALLATION
ALCOVE
INSTALLATION
SIDE VIEW
The front trims for the WHVF31 are different sizes. See “DIMENSIONS” section prior to mounting the
appliance. Clearances are measured from the appliance, not the front trims.
ALCOVE
INSTALLATION
TOP VIEW
