2 ide hard disk – Asus 5U Tower Chassis Kit AK35 User Manual
Page 30
Chapter 2: Hardware setup
2-14
2.5.2 IDE hard disk

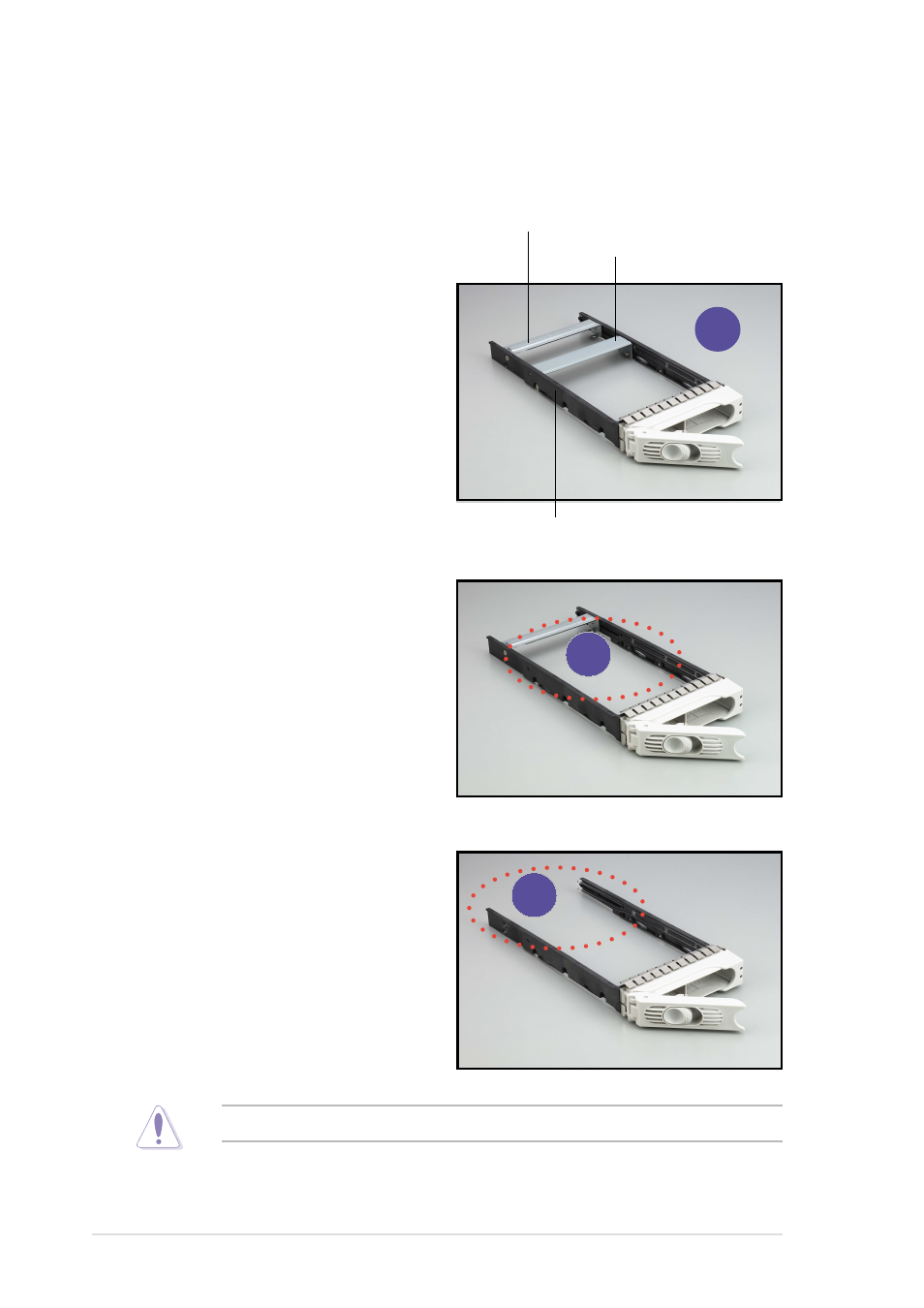

To install an IDE hard disk drive:
1. Place the hard disk tray on a
flat clean surface.
2. Use a Phillips screwdriver to
remove the screw that secures
the middle bracket from the
drive tray.
3. Remove that screw that
secures the rear bracket to
detach it from the drive tray.
Rear bracket
Middle bracket
Drive tray rail
Be careful when handling the drive tray rails to avoid breaking them.
1
2
3
