ATN Fusion Image Intensification Thermal System FIITS14 - Manual (Page 2)

Magnification ............................. 1X
Objective Focal Length .............. 16 mm
FOV ............................................ 11° x 8°
Focus Range ............................... 1m to infinity
Focus Adjustment ....................... Manual
Exit Pupil ................................... 14mm
Eye Relief ................................... 25mm
Detector Type ............................. Uncooled Microbolometer
Spectral Response ...................... 7-14 μm
Pixels .......................................... 160 x 120
Pixel Size ................................... 30 x 30 μm
Angular Resolution, mrad .......... 1,2
Thermal Sensitivity .................... < 0,1°C
Range to Detect a Human .......... 475 m
Output Format ............................ Analog PAL / NTSC
Display ....................................... OLED matrix
Display Format ........................... SVGA, 852 x 600 pxl
Color .......................................... Monochrome
Digital ZOOM ............................ Fixed 2x (optional 5x)
Brightness Adjustment ............... Manual
Contrast Adjustment................... Automatic
Available User Interfaces ........... From outside PC through
USB interface
Power Supply ............................. 2 x 3V, 123Atype
Start-Up Time............................. < 3 sec
Battery Life with
one battery pack ......................... 4 hrs
External Power Supply............... DC 6V, 500 mA
Operation Temperature .............. from -20°C to +50°C
Waterproof ................................. Yes, up to 10m submersion
Dimensions ................................ 118 x 78 x 54 mm
Weight (w/batteries) ................... 0,34 kg
American Technologies Network Corp. 1341 San Mateo Avenue, South San Francisco, CA 94080
800-910-2862, 650-989-5100, FAX 650-875-0129, www.atncorp.com, E-mail: [email protected]

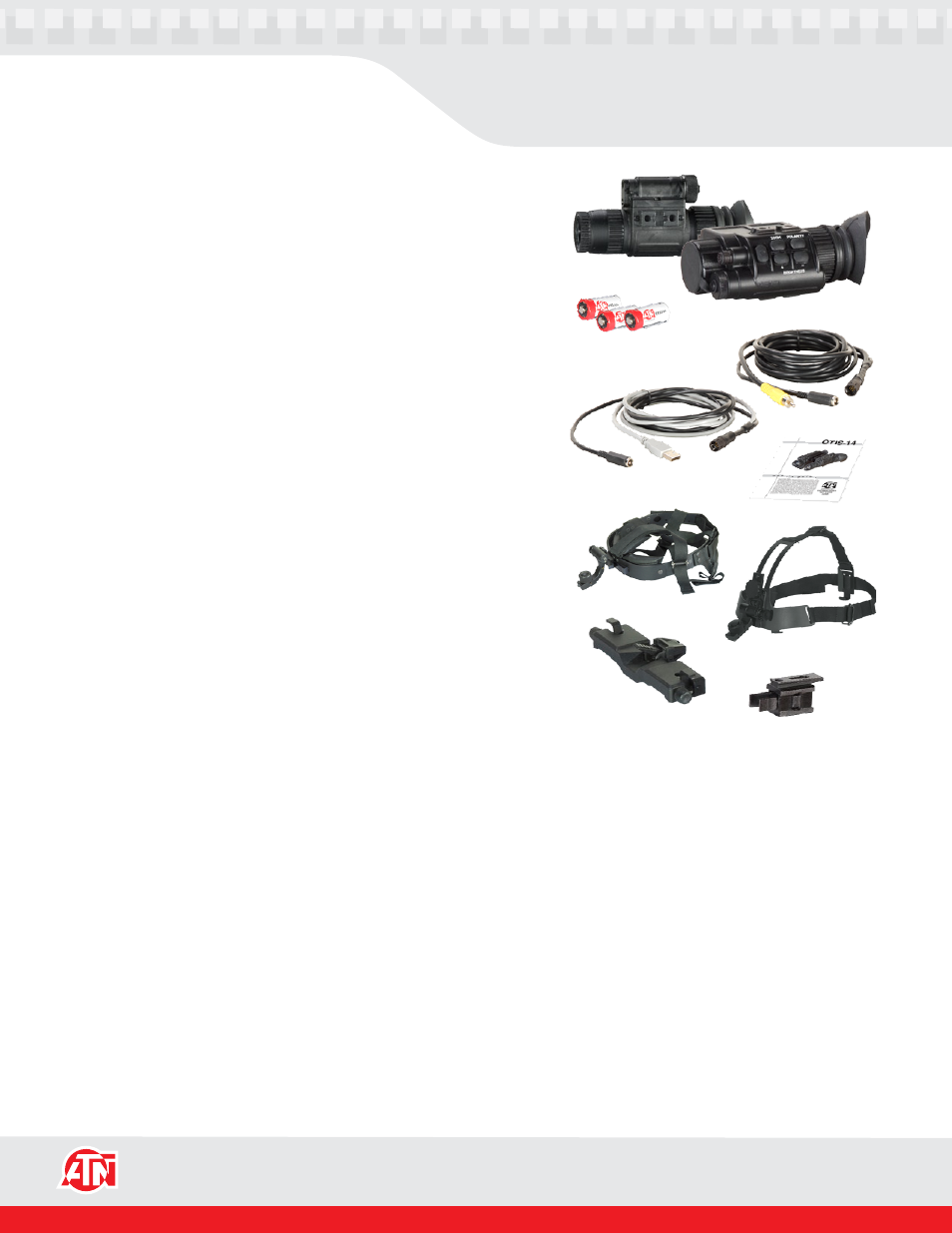

• Night Vision Monocular
• Thermal Monocular
• 3 batteries CR123A type
• Video cable
• PC cable
• Manual
• Software CD
• Head mount
• Helmet mount
• Dual Bridge
• Dual Bridge for PVS7
head/helmet mount
Magnification ............................. 1X
Focus Range ............................... 0.25 m to Infinity
Eye Relief ................................... 25 mm
Exit Pupil ................................... 14 mm
Dioptre Adjustment .................... ±4
Operation Temperature .............. -40 To +50°C
Storage Temperature .................. -50 To +70°C
Waterproof ................................. Yes, 20 m for 1 h
Power Supply ............................. one 3V, 123Atype
Battery Life ................................ 25 hours (AA, 1.5 V)
50 hours (Lithium, 123a, 3v)
Dimensions ................................ 125 X 49 X 69 mm
Weight (With Battery) ................ 0.32 kg
Thermal Channel
Night Vision Channel
Specification
Specification
